China manufacturer SiC Heating Element

 Product Description

       Silicon Carbide SiC Heating Element is a kind of non-mental high temperature electric heating element.It is made of selected high-purity green silicon carbide as raw material which is made into blank and silicon crystal under high temperature of 2400ºC. It can usually make use for furnance which temperature from 600C-1600ºC. It is widely used in various electric heating element of glass, chemical, electronic material and so on.

Features of Silicon Carbide SiC Heating Element

 Dimensional drawing of Silicon Carbide SiC Heating Element

Detailed Features of  Silicon Carbide SiC Heating Element

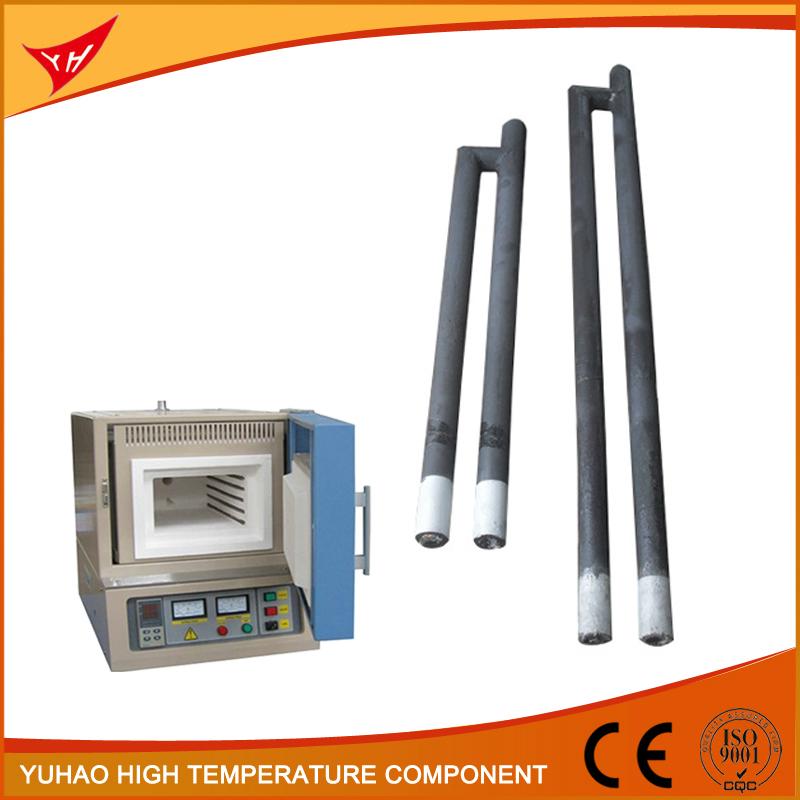

U Type  Silicon Carbide SiC Heating Element

 U type  Silicon Carbide SiC Heating Element is constructed to from a U-shape. Consequently Type U have the terminals at one end for a single-phase power source. This reduces the number terminations and cold ends thus enabling energy savings.

W Type  Silicon Carbide SiC Heating Element

 Silicon Carbide SiC Heating Element with the terminals at one end, is designed for three-phase power source applications, such as the float glass process.

Spiral Type  Silicon Carbide SiC Heating Element

 Silicon Carbide SiC Heating Element with a spiral-grooved heating section, are more resistant to heat and corrosion than conventional products and are able to withstand operation in rigorous conditions. Single spiral elements are provided with energy-saving, low-resistance, cold-end terminals.

Double Spiral Type  Silicon Carbide SiC Heating Element

 Silicon Carbide SiC Heating Element with a spiral-grooved heating section, are more resistant to heat and corrosion than conventional products and are able to withstand operation in rigorous conditions. Double spiral elements are provided with energy-saving, low-resistance, cold-end terminals.

DB ( Dumbbell type )and ED (Rod) Type  Silicon Carbide SiC Heating Element

DB and ED type  Silicon Carbide SiC Heating Element is made from high-density,high-purity silicon carbide ,which is the most popular type of economical heating element capable of operating under hot and rigorous environments.

Specification for  Silicon Carbide SiC Heating Element

Advices for using and installing Silicon Carbide SiC Heating Element

1. Be protected against damp during storing or installing to ensure the performance ;

2. Divided before assembling. The tolerance of the resistance of each one cannot exceed by 10% each other;

3. Be careful when using and maintaining;

4. When operating the electric furnace at the beginning, the voltage should be increased slowly and cannot be fully loaded at once. Otherwise the larger current will be resulted in the damage of heater.

5. When heater is damaged and need to be changed, the resistance of new ne should follow the increasing resistance. If many are damaged or resistance increased too much, heater should be changed.

Accessories for  Silicon Carbide SiC Heating Element

Products Show for  Silicon Carbide SiC Heating Element

Packaging& shipping

1. Packing

Export carton packing box for small qty;

 Export wooden packing box for large qty.

2. Shipping

Fedex/DHL/UPS/TNT for samples, Door-to-Door;

Customers specifying freight forwarders or negotiable shipping methods;

Delivery Time: 3-7 days for samples; 5-25 days for batch goods.

Our services

·         Customized service

·         One year warranty period

·         Professional purchasing guide

·         Technical support
