SDLC-PCIE High Speed Synchronous Serial Port Card

Model:	SDLC-PCIE
Brand:	Yacer
Origin:	Made In China
Category:	Electronics & Electricity / Electrochemical Products
Label:	SDLC-PCIE , HDLC-PCIE
Price:	-
Min. Order:	1 pc

Inquire Now Add to Basket

Member Information

Nanjing Yacer Xunpai Electronic Co. Ltd

Free MemberJiang Su - China

Live Chat:

Last Online:23 Nov, 2021

Product Description

The Yacer SDLC-PCIE multi-protocol serial port communication card provides 2/4 high speed synchronous/asynchronous serial ports and supports the HDLC protocol. It can be configured as the RS-232, RS-422 or RS-485 interface through the software configuration.

It supports the PCI-Express x 1 bus standard and provides drivers for major operating systems.

Features

2/4 synchronous/asynchronous serial ports
- Baud rate: up to 20 Mbps
- Maximum frame size: 8,192 bytes
- RS-232, RS-422, RS-485
- Full-duplex, Half-duplex
- HDLC/SDLC, UART, BIT stream
PCI Express x1, compatible to PCI Express slots such as x8 and x16
processing the protocol in the board instead of occupying the host resource)
Industry-grade temperature

Drives

Windows: Win2000, XP, Vista, Win7, Win8/8.1, Win10, Windows Server
Linux, FreeBSD
DOS, Netware, Novell

Applications

Telemetry and control data collection & transmission
Radio data transmission
Secondary Surveillance Radar (SSR), ADS-B data communication
Air Traffic Management (ATM)
Air Traffic Control (ATC)
Embedded application

Technical specifications

Serial port
Qty		2 or 4
Interface		1*D-Sub 37 (male)
Working mode		Synchronous HDLC, asynchronous UART, synchronous BIT stream
Interface type		RS-232, RS-422/485 Full-duplex, RS-485 Half-duplex
Code format		NRZ
Baud rate		RS-232: ≤ 500 Kbps RS-422/485: ≤ 20 Mbps
HDLC frame length		≤ 8,192 bytes
Synchronous clock		Normal, Master, Slave
ESD protection		±15 KV
Computer bus interface
Specification		PCI Express x 1
Driver supporting		Windows/Linux/Free BSD/Netware/DOS
Communication mode		Virtual Ethernet interface, TCP/IP protocol
Programming interface		UDP Server/UDP Client, supporting unicast/multicast/broadcast
Configuration management
Software tool		Yacer-DMS configuration management software
Management interface		PCI-Express bus interface
Power requirements
Input voltage		4-17 VDC
Power consumption		< 10 W
Power interface		PCI-Express bus for power supply
Mechanical features
Size		LW: 150100 (mm)
Weight		180g
Working environment
Operating temperature	-40 - +70°C
Storage temperature	-40 - +85°C
Operating humidity	5 - 95% RH (non condensing)

Order information

Model	Serial port
SDLC-PCIE-200	2*RS-232/422/485 high speed synchronous/asynchronous serial ports
SDLC-PCIE-400	4*RS-232/422/485 high speed synchronous/asynchronous serial ports

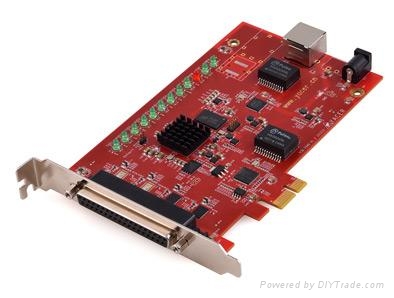

Product Image
