Product Description

CHC RTK GPS X10
The X10 represents the pinnacle of productivity on today’s jobsite. Leading technology with superior capabilities, theX10 has tracks all five constellations, ten frequencies, and uses every connectivity method available. The X10 is the smallest receiver on the market incorporating dual hot swappable batteries, allowing continuous uninterrupted work. All these features integrated into a small ergonomic package results in the most productive day of surveying possible.



▪  Light & ultra-r ed eliminates user fatigue

▪  Advanced connectivity integrates into any process with nearly any hardware

▪  Common work flows without a data collector

▪  Future proof design for years of productivity



GNSS characteristics

220 channels

with simultaneously tracked satellite signals



GPS: L1C/A, L1C, L2C, L2E, L5



GLONASS: L1C/A,L1P, L2C/A, L2P, L3



SBAS: L1C/A, L5 (QZSS, WAAS, EGNOS, GAGAN)



Galileo: E1, E5A, E5B



BeiDou: B1, B2



GNSS Accuracies(1)

SBAS differential positioning accuracy: 0.5 m RMS



High-precision static

Horizontal: 3.0 mm + 0.1 ppm RMS



Vertical: 3.5 mm + 0.4 ppm RMS

Post-Processed Kinematic (PPK)

Horizontal: 8 mm + 1 ppm RMS



Vertical: 15 mm + 1 ppm RMS

RTK

Horizontal: 8 mm + 1 ppm RMS



Vertical: 15 mm + 1 ppm RMS



Initialization time < 5 s



Initialization reliability > 99.9%

Network RTK

Horizontal: 8 mm + 0.5 ppm RMS



Vertical: 15 mm + 0.5 ppm RMS



Initialization time < 10 s



Initialization reliability > 99.9%



 Hardware

Dimensions (H×W)

14 cm × 12.4 cm (5.5 in x 4.9 in)

Weight

1.22 kg (2.69 lbs) with batteries

Environment



Operating

-40 °C to +75 °C (-40°F to 167°F)

Storage

-55 °C to +85°C (-67°F to 185°F)

Humidity

100% condensation

Dust and Waterproof

IP68, protected from temporary immersion to depth of 1 m (unit floats)

Shock and vibration

3 m (9.8 ft) pole drop onto concrete, MIL-STD-810G

LCD

128x64dpi sunlight readable with function/accept buttons



Certification and Calibrations

FCC Part 15 (Class B Device), FCC Part 22, 24, 90; CE Mark; C-Tick; Bluetooth EPL, NGS Antenna Calibration,  IGS Antenna Calibration, MIL-STD-810G.





Communications and Data Recording(2)

Serial

2 x 7pin LEMO port (external power, USB data download, USB update, RS-232)

External Power

12 to 36 VDC

USB

v2 - mounts as high-speed USB thumb drive

Cellular

Internally integrated 3.75G modem (optional 4G modem)



HSPA+ 21 Mbps (download), 5.76 Mbps (upload)



WCDMA 850/900/1700/1900/2100



EDGE/GPRS/GSM 850/900/1800/1900

Bluetooth®

Internally integrated multimode system compatible with Android, Windows Mobile, iOS and Windows desktop operating systems

WiFi

802.11 b/g/n, access point mode

UHF Radios (2)

Protected TNC Female

Standard

Internal Rx/Tx: 450 - 470 Mhz; transmit power: 0.1 W to 2 W, protocol CHC; range: 5 km optimal conditions

Option 2

FCC Certified Internal Rx/Tx: 403- 473 MHz;     transmit power: 0.1 W to 1 W, protocols Trimble, Satel, Pacific Crest; range: 5 km optimal conditions

Protocols

CMR: CMR+, sCMRx input and output



RTCM: 2.1, 2.2, 2.3, 3.0, 3.1, 3.2 input and output



NMEA 0183 output



HCN and RINEX static formats



NTRIP

Data Storage

32 GB high-speed memory



Electrical

Power consumption

<3.2 W

Li-ion battery capacity

3400 mAh*2, 7.4 V

Operating time

Setup of multiple data stream

External power

12 to 36  V DC


Product Image

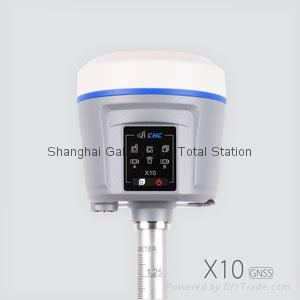

X10  gnss RTK gps 1
