| Model: | XHY-SP02 |
|---|---|
| Brand: | Neutral product |
| Origin: | Made In China |
| Category: | Computers & AV Digital / AV Equipment / AV Peripheral |
| Label: | HDMI Splitter 1X2 , HDMI Splitter , splitter |
| Price: |
US $6.96
/ pc
|
| Min. Order: | 10 pc |
| Live Chat: |  | Last Online:24 Nov, 2016 |

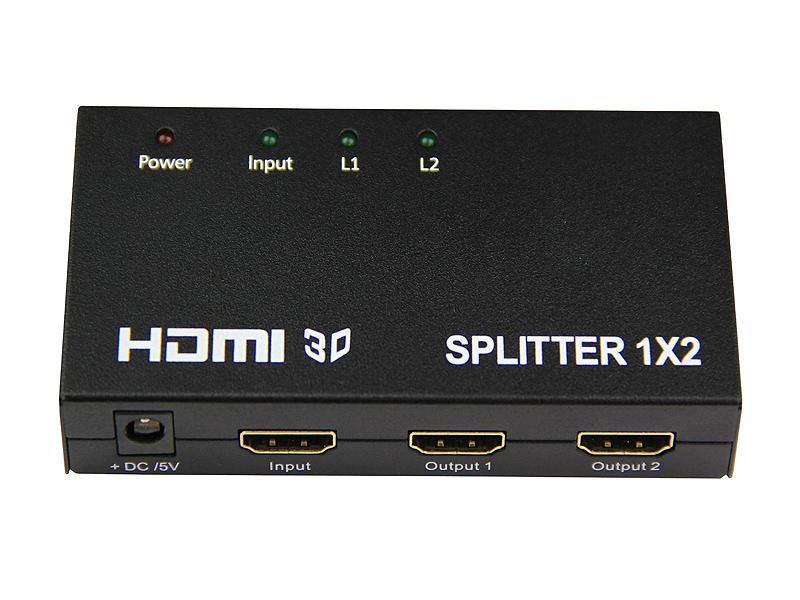

HDMI Splitter 1x2
Enjoy the vivid world!
The HDMI Splitter 1x2 uses a single HDMI source, accessing to multiple HDMI sinks. The splitter allows one HDMI device to be split easily to two HDMI compatible monitors or projectors. The splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. The HDMI Resolution up to 1920x1080/60HZ.
FEATURES
1. Support HDMI 1.4a
2. Support Full 3D
3. Support HDMI resolution up to 1920x1080/60Hz
4. Support the max baud rate of 2.25G and max bandwidth of 225Mhz
5. Support deep color 8/10/12bit
6. Support input up to 15metres AWG26 HDMI standard cable length, output up to 25metres AWG26 HDMI standard cable length
7.Displaying single source, multi-output high-definition signal source from DVD player A / V receiver, set-top box
8. 5V / 1A power adapter
SPECIFICATIONS
|
HDMI version |
HDMI 1.4a |
|
HDMI resolution |
UP TO 1920*1080/60Hz |
|
Support video color format |
8/ 10/12bit deep color |
|
Support audio format |
DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
|
Max bandwidth |
225MHz |
|
Max baud rate |
2.25Gbps |
|
Input cable distance |
≤15m AWG26 HDMI standard cable |
|
Output cable distance |
≤25m AWG26 HDMI standard cable |
|
HDMI input |
1 HDMI |
|
HDMI output |
2 HDMI |
|
Max working current |
500mA |
|
Specifications of power adapter |
Input:AC (50HZ, 60HZ) 100V-240V;output: DC5V/1A |
|
Operating Temperature range |
(-15 to +55℃) |
|
Operating Humidity range |
5 to 90%RH (No Condensation) |
|
Dimension (L x W x H) |
105x50x20mm |
|
Weight |
120g |
Connecting operation
1. Connect 1 HDMI cable from HDMI source devices into HDMI Splitter input.
2. Connect 2 HDMI cables from displayers (monitors or projectors) into the HDMI Splitter outputs.
3. Connect 5V power supply to the HDMI 1x2 Splitter.
Package Accessories
1. HDMI Splitter 1x2
2 Power Adapter
3 User Manual
