| Model: | HECV |
|---|---|
| Brand: | - |
| Origin: | - |
| Category: | Industrial Supplies / Construction Machine |
| Label: | ENAR Vibrators , Concrete vibrators , ENAR concrete vibrat |
| Price: |
-
|
| Min. Order: | - |
| Live Chat: | Last Online:12 Apr, 2024 |

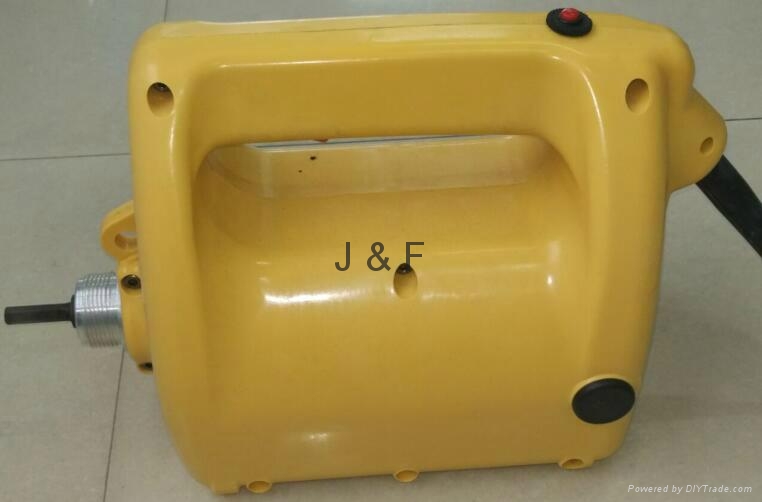

The Handleheld Electric Concrete Vibrator
-Handleheld single phase electric motor
-Reinforced cable to protect it against excessive bending
-Strong plastic housing with double insulation and water-proof protection
-Light weight for handling to work around concrete site easily especilly the narrow corner.
-Faster consolidation by high cycle frequency and powerful centrifugal force
| Model No. | HHCV16 | HHCV23 |
| Power | 1600W | 2300W |
| Voltage/Frequency | 220V/50HZ or 110V/60HZ | 220V/50HZ or 110V/60HZ |
| Phase | Single | Single |
| Idle Speed | 18000rpm | 18000rpm |
| Weight | 5kg | 5.5kg |
| Connection to shaft | Hexagonal Socket | Hexagonal Socket |
Poker head and Shaft parts
| Model No. | HHCV28 | HHCV38 | HHCV45 | HHCV50 |
| Poker Dia.xLength | 28x210mm | 38x250mm | 45x430mm | 50x450mm |
| Frequency rpm | 12000-14000 | 12000-14000 | 12000-14000 | 12000-14000 |
| Shaft length | 1m.2m.3m. | |||
| centrifugal force | 0.7kn | 1.0kn | 1.6kn | 2.1kn |
