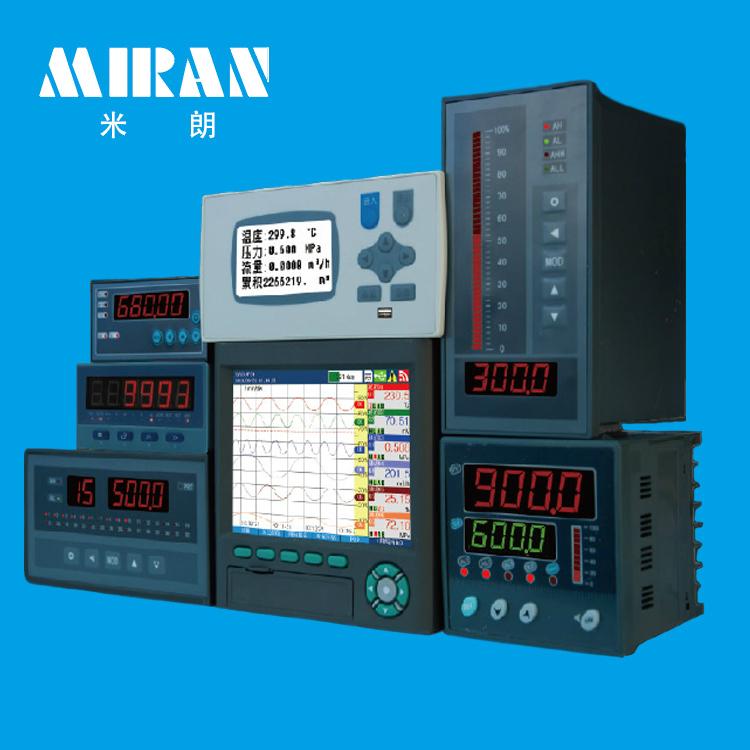

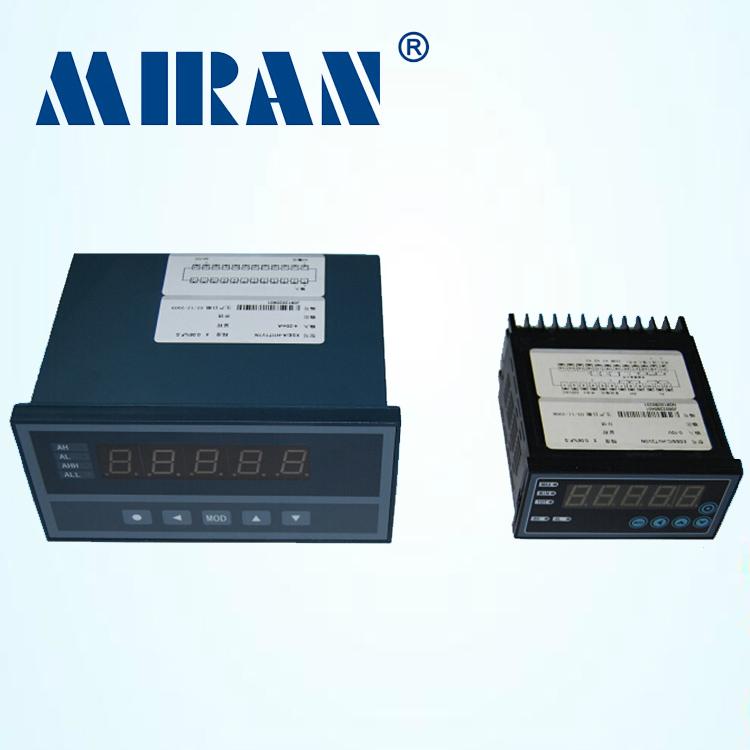

The digital display instrument from Miran can choose the measurement of  temperature, pressure, flow, liquid level, composition force, displacement and other physical quantities for measurement, conversion, display, transmission, recording and control. It is with high precision, anti-jamming, high speed response and other advantages, and the menu design is simple with a variety of functions. Miran series digital instrument including CH6 universal single channel multi function digital display meter, XSA~XST series of single channel multi function digital display meter, XSD2~n series of multi channel multi function digital display meter, inspection instrument, PID controller, display controller, a variety of products such as optional. It is widely used in power grid, non-standard equipment, communication power supply and other automatic system of the field signal online display and control.

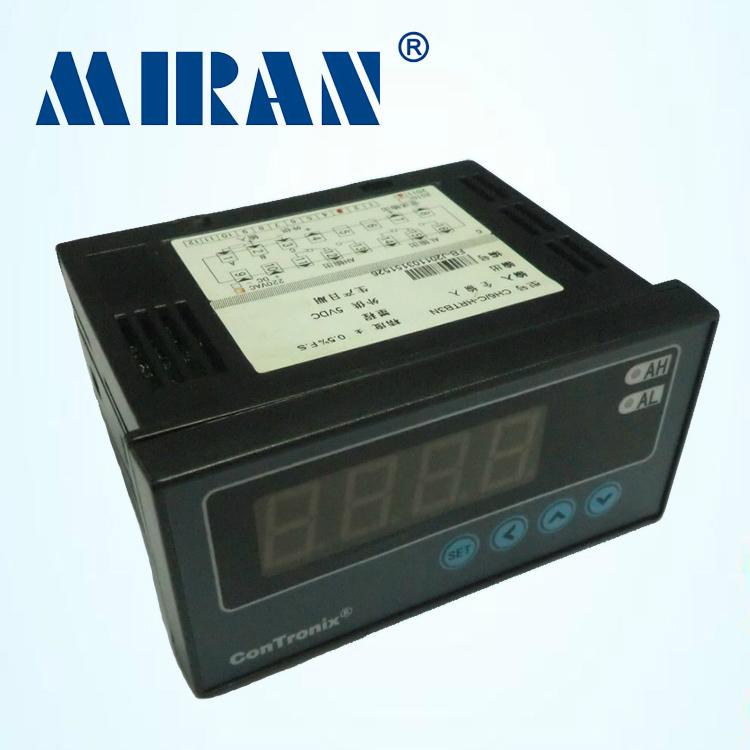

CH6 series digital instrument and various types of analog sensor, transmitter output, temperature, pressure, liquid level, complete composition and other physical measurements, transform, display and control error is less than 0.5%F.S, and has the adjustment, digital filtering.

1.Suitable for standard voltage, current, thermal resistance, thermocouple and other signal types;

2. Two points alarm output, upper limit or lower limit alarm mode can be selected. Alarm sensitivity independent setting;

3. Output (option), can be measured, the display value after conversion to standard current, voltage form output for other equipment use;

4. Power supply: there are two kinds of AC220V, DC24V power supply;

5. Working environment: 0 to 50 degree, the humidity is lower than 85%R.H, no condensation;

6. Display range: -1999 ~ 9999, the decimal point position can be set;

7. Input signal type: universal input, can be set to choose;

8. CH6 instrument application is very extensive, any great company produces displacement sensor can be used in conjunction with;

9. XST series digital display is a kind of elegant appearance of high precision intelligent instrument.

10. The output of the grating ruler and the magnetic ruler which are matched with the bidirectional orthogonal pulse output, the maximum counting frequency is 3MHz. 8 bit LED display, can be set to count ratio of 0.0001 ~ 45. Eight segment line function anti interference design, suppression of the scene of the relay, contactor and other fast pulse group interference and other electromagnetic interference, anti-interference ability to achieve III level.

11. Input signal: there are voltage input, current input, the whole potentiometer input and so on;

12. Display mode: there is a direct linear output, set the corresponding output (database);

13. Display accuracy: 0.5% and 0.2%;

14. Display digits: 4 digit display;

15. Control functions: the upper and lower alarm, any point complex zero, the middle of the set point output, to the upper computer transmission data, and other functions;

XST multi function digital display table has the standard universal, special non-standard type (that is, according to the function and requirements of the order, such as with the output of the power supply, external power supply, 232 communication protocol, multi-channel, a number of alarm points, etc.. XST series of instruments is a use of more, more powerful intelligent displacement of digital display, can be used with any of our displacement sensor products.

Shenzhen miran Technology Co., Ltd is a high-tech enterprise approved by Shenzhen municipal government. Rich experience in sensor industry field for more than 15 years, the great brand products have been widely used in the world all kinds of automation control field, the direction of development is: to technological innovation as the core, to customer demand-oriented, will have been committed to the field of measurement and control in displacement, position and angle provides a station solutions to products and service for customers.

The main products are miran technology / resistive potentiometer displacement sensor principle (electronic scale), pull rope type displacement sensor (rope type electronic ruler), principle of magnetostrictive displacement sensor (contactless magnetic induction electronic ruler), principle of magnetostrictive liquid level sensor (liquid level measurement and control system), differential displacement sensor, LVDT eddy current displacement sensor, angle sensor (angle ruler), transmission module, digital display instrument and intermittent automatic lubricating oil pump etc.. All products have achieved CE, 3C certification, and access to ISO9001:2008 international quality system certification, in strict accordance with the international quality certification standards organization design and production, to ensure product quality.
