| Model: | 4A430E-15 |
|---|---|
| Brand: | solenoid valve |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | Air control valve , solenoid valve , air control valve |
| Price: |
US $5
/ pc
|
| Min. Order: | 1000 pc |
| Live Chat: | Last Online:28 Oct, 2016 |
Quick Details
| Standard or Nonstandard: |
Standard |
Structure: |
Control |
Pressure: |
Medium Pressure |
| Power: |
Pneumatic |
Material: |
Alloy |
Temperature of Media: |
Medium Temperature |
| Media: |
Gas |
Port Size: |
G1/2" |
Place of Origin: |
Zhejiang, China (Mainland) |
| Model Number: |
4A430E-15 |
Brand Name: |
SDPC |
Application: |
General |
| Product name: |
4A430E-15 |
Type: |
Normal Colse |
Body material: |
Aluminum Alloy |
| Connection: |
Female Thread |
Voltage: |
DC12V DC24V AC110V AC220V |
Certificate: |
ISO9001 |
| Working pressure: |
0.15-0.8MPA |
Valve type: |
2-way / 3-way |
Working Temperature: |
-5~60 |
| Thread: |
GBT |
Packaging & Delivery
| Packaging Details: | Carton,SDPC or OEM |
| Delivery Detail: | 20~30 days |

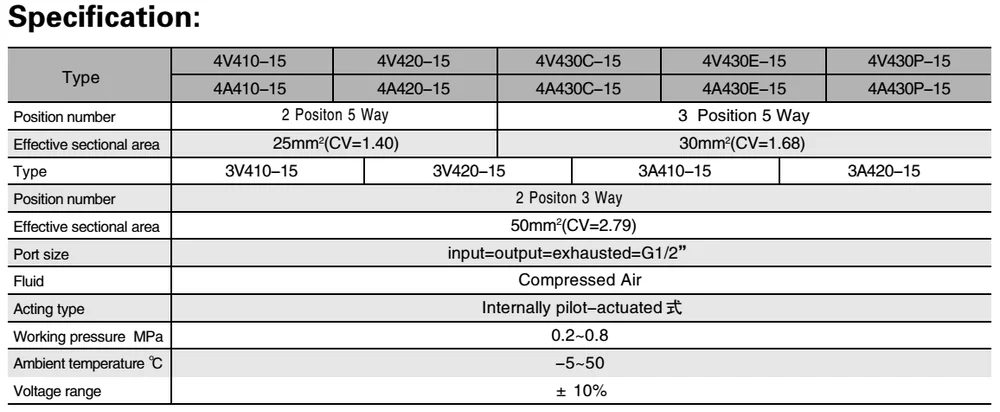

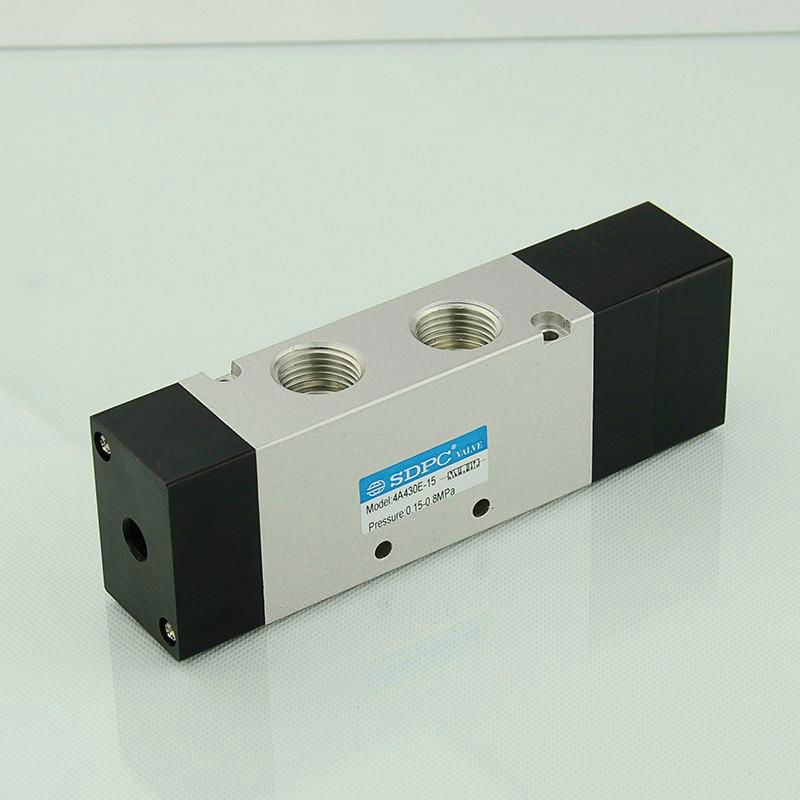

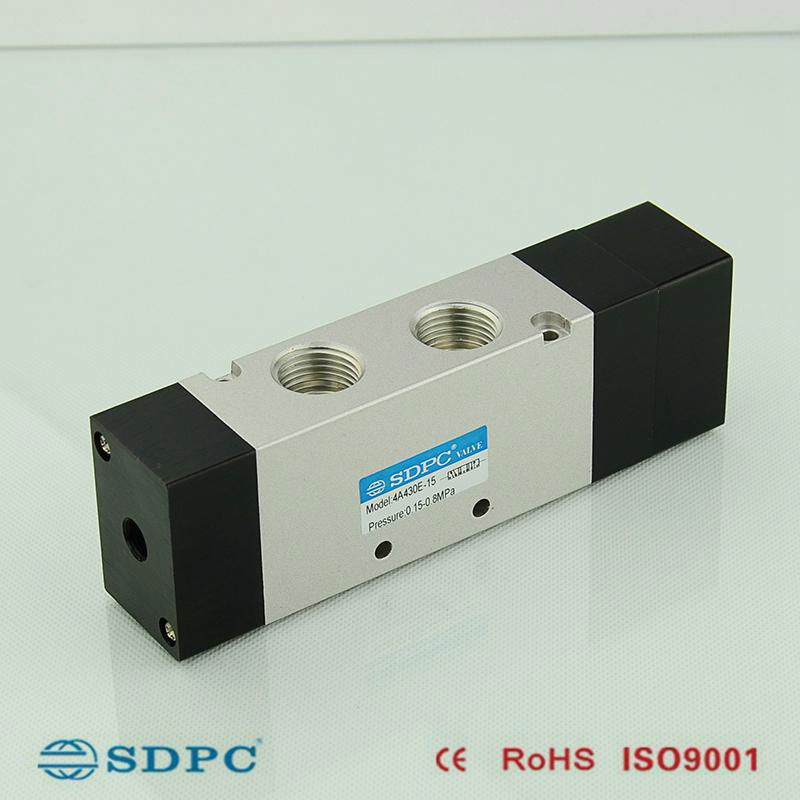

4A430-15 pneumatic air control valve
| SDPC Code | 4A430-15 |
| Port Size | G1/2" |
| Position Number |
3 Position 5 Way |
| Working Pressure | 0.2~0.8MPa |
| Ambient Temperature | -5~50 |
| Coil Voltage | DC12V 24V AC24V 110V 220V 380V 50-60Hz |
