1.1 Brief Introduction

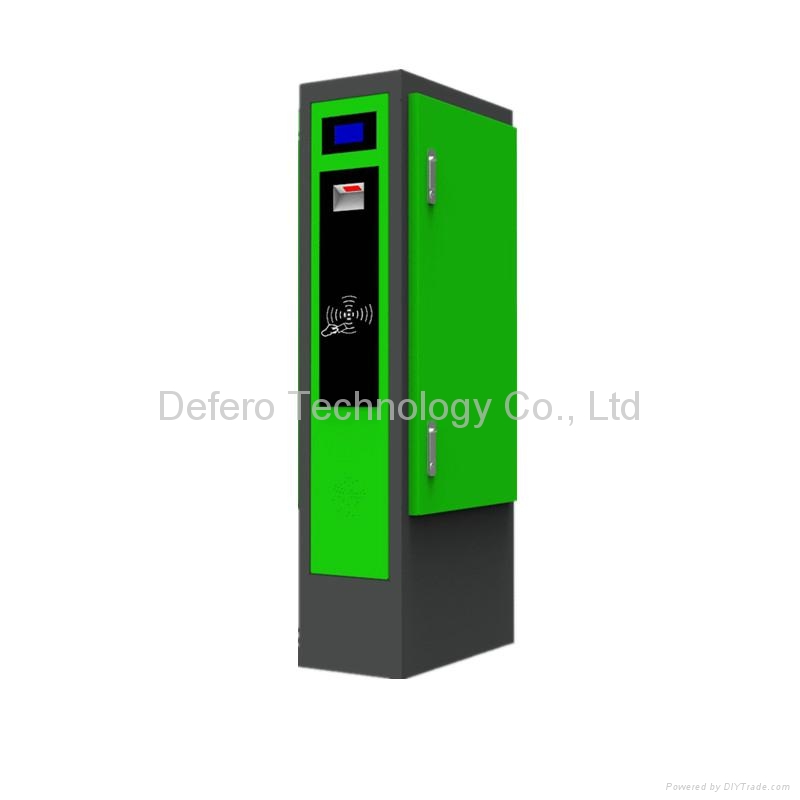

Entrance Ticket Verifier is designed for big-size parking lots' automatic management system.
It is very easy to work with loop detector, barrier gate, pay station and ticket validator station. It
can realize ticket reading (bar code ticket), barrier control, parking information record functions
and feedback the information to server. It is an important part of S-parking solution for entrance
management.
1.2 Functional Features
1）Support IC/ID/RFID card;
2）Read and recycle tickets, accurate, reliable and stable performance;
3）With lightning protection, overload protection, anti-jamming protection etc., and can
work in severe condition;
4）Open and close barrier gate intelligently, without labor cost;
5）Friendly customer interface (LCD) and optional voice prompt module;
6）Remote access function with the help of software to realize the remote data querying
and monitoring;
7）Working parameters can be easily modified , including time, date, exit address and
validated time etc. with regular computer keyboard;
8）Graceful appearance, succinct, high mechanical strength, with waterproof, fire
prevention, and antistatic function etc.;
9）Easy to operate for its' humanized panel design, signet operating hints;
10）Support RS485, TCP/IP communication protocol;
11) Strong compatibility can directly work with most brands barrier gates, loop detector
etc.
1.2 Technical Parameters
1) Case Dimension: 500*310*1250（D*W*H）
2) Working Voltage: DC24V/5V/AC110V 60Hz/AC220V 50Hz
3) Working Temperature: -35℃--+65℃
4) Vehicle Detection Function: Support
5) Card Type: IC/ID/RFID card, optional
6) Offline Storage: a million messages
7) Communication Port: RS232/RS485, TCP/IP, optional
8) System Platform: ARM7
