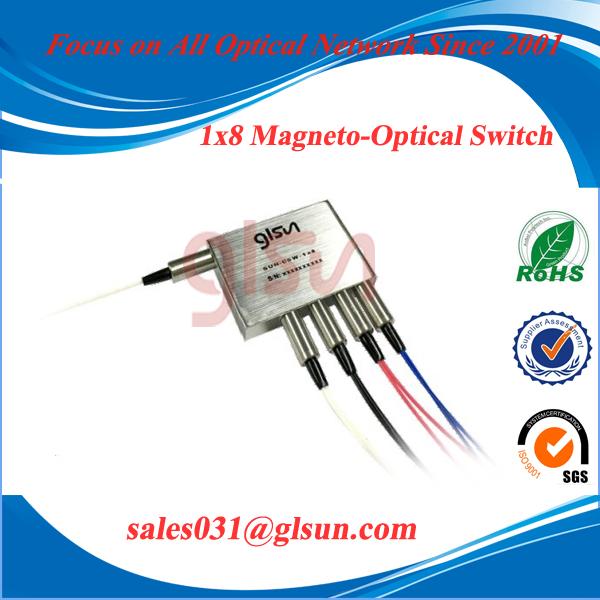

LSUN 1x8 Magneto-Optical Switch
Product Description
The high-speed 1x8 magneto-optical switch can be used in high-speed all-optical communication network. The optical route design covers optical route design of polarization in optical switch, the performance analysis and material selection of magneto-optic crystal and magnetic path design in Faraday rotator.
1x8 Magneto-Optical Switch
Features
High switching speed
Better durability
High reliability
Low voltage drive
Fail-safe latching
Applications
Optical channel blocking
Configurable Add/Drop
System monitoring,Test&measurement
Fiber-optics sensing system
Specifications
| Parameters | Unit | 1x8 |
| Wavelength Range | nm | 1520~1580 |
| Test Wavelength | nm | 1550 |
| Insertion Loss | dB | 1.5 |
| Return Loss | dB | ≥ 50 |
| Crosstalk | dB | Bidirectional ≥ 20 |
| Unidirectional ≥ 40 | ||
| PDL | dB | ≤ 0.2 |
| Repeatability | dB | ≤ ±0.01 |
| Operating Voltage | V | 2.5±10% |
| Drive Current | mA | 110~190 |
| Durability | Cycles | ≥ 30 Bllions |
| Switching Time | us | ≤ 100(typ:50) |
| Pulse Duration | us | 200~500 |
| Switching Type | n/a | Latching |
| Optical Power | mW | ≤ 500 |
| Operating Temperature | ℃ | -5~ +70 |
| Storage Temperature | ℃ | -40 ~ +85 |
| Relative Humidity | % | 5 ~ 95 |
| Dimension | mm | (L )40x(W)29x(H)6±0.2 |
Ordering Information:
SUN-CSW-A-B-C-D-E-F-G
| A | B | C | D | E | F | G |
| Switch Type | Fiber Type | Operating Voltage | Test Wavelength | Tube Type |
Fiber Length (Include connector) |
Connector |
|
1x8B: Bidirectional 1x8U: Unidirectional |
SM: SM, 9/125 X: Others |
2.5: 2.5V |
1550: 1550nm X: Others |
25: 250um 90: 900um X: Others |
05: 0.5m±5cm 10: 1.0m±5cm 15: 1.5m±5cm X: Others |
OO:None FP::FC/PC FA:FC/APC SP:SC/PC SA:SC/APC LP:LC/PC LA:LC/APC X:Others |
