| Model: | FPLR Alarm |
|---|---|
| Brand: | OEM Factory |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Optical Fiber, Cable & Wire / Communication Cable |
| Label: | control circuits , plenum PVC , silicon insulation |
| Price: |
US $140
/ pc
|
| Min. Order: | 100 pc |
| Live Chat: |  | Last Online:08 May, 2023 |

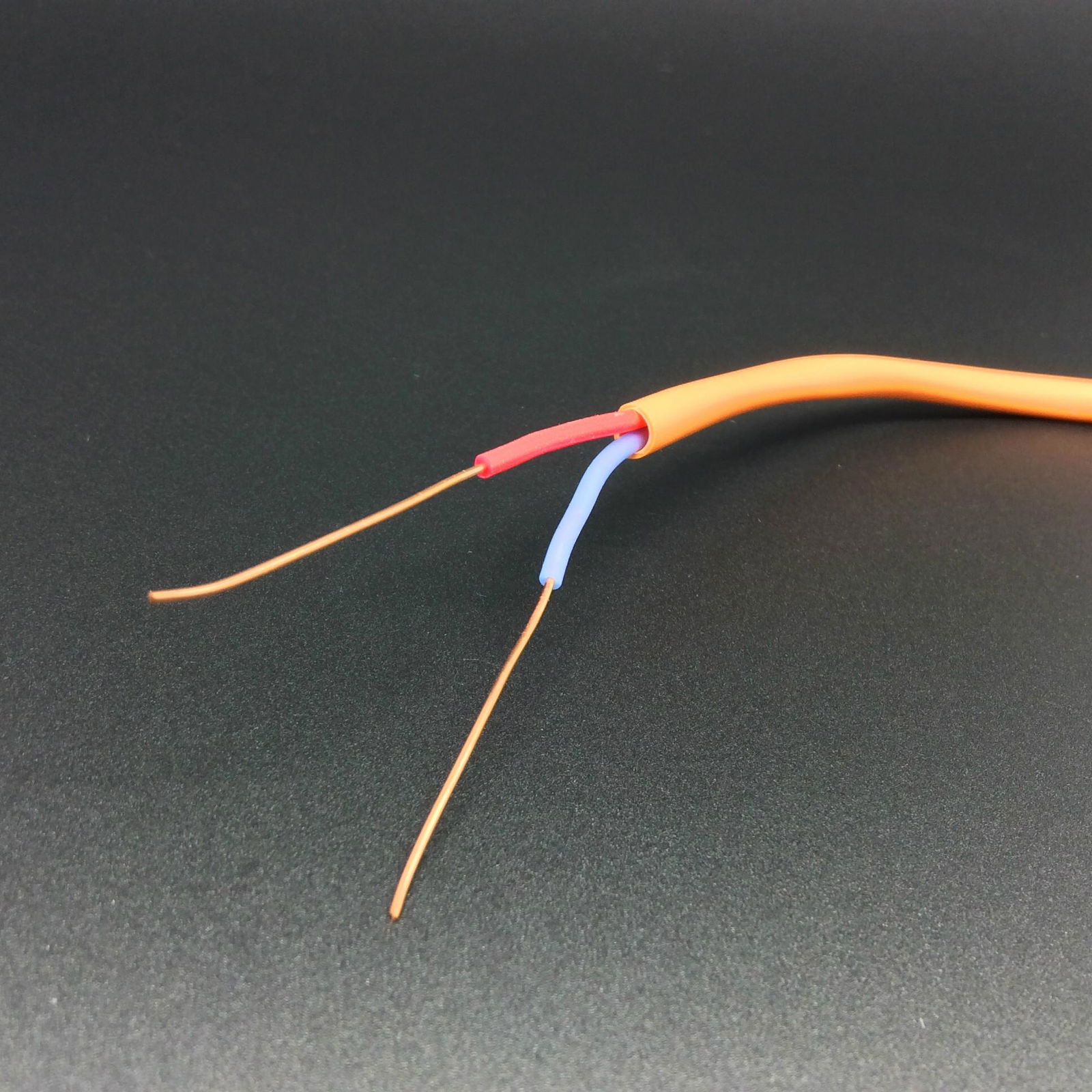

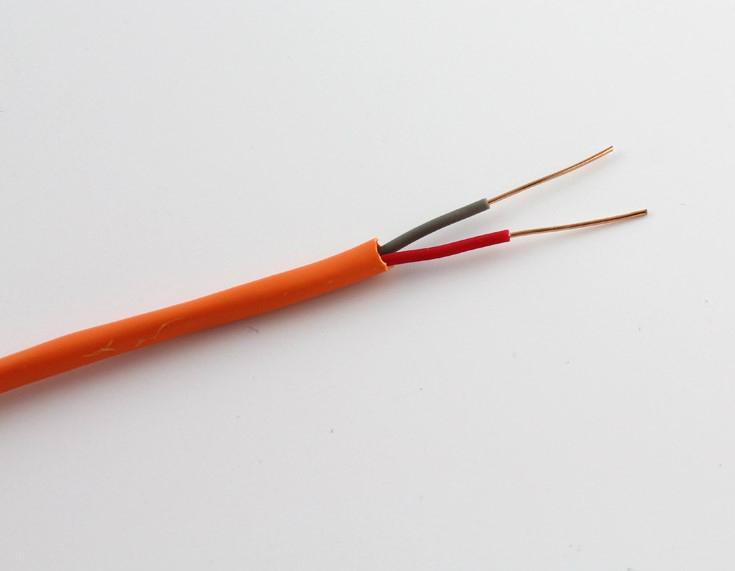

| Fire Alarm Cables 14AWG FPL-CL2 | |||||||
| Application | |||||||
| Indoor for: | |||||||
| Audio Circuits | |||||||
| Control Circuits | |||||||
| Initiating Circuits | |||||||
| Notification Circuits | |||||||
| Properties | |||||||
| Temperature Rating: '-20 to 75℃ | |||||||
| Operating Voltage: 300 Volts max. | |||||||
| Flame Rating: UL 1685 Vertical Tray | |||||||
| Insulation & Jacket: PVC | |||||||
| Unshielded types | |||||||
| Conductors | NOM.THICKNESS(MM) | Nominal0.D. | Capacitance | Impedance | DC Resistance | ||
| Number | Solid | Insulation | Jacket | Inch | pf/ft | Ohms | Ohms/M' |
| 2 | 14 AWG | 0.010" | 0.016" | 0.200" | 22 | 70 | 2.6 |
| 4 | 14 AWG | 0.010" | 0.016" | 0.214" | 22 | 70 | 2.6 |

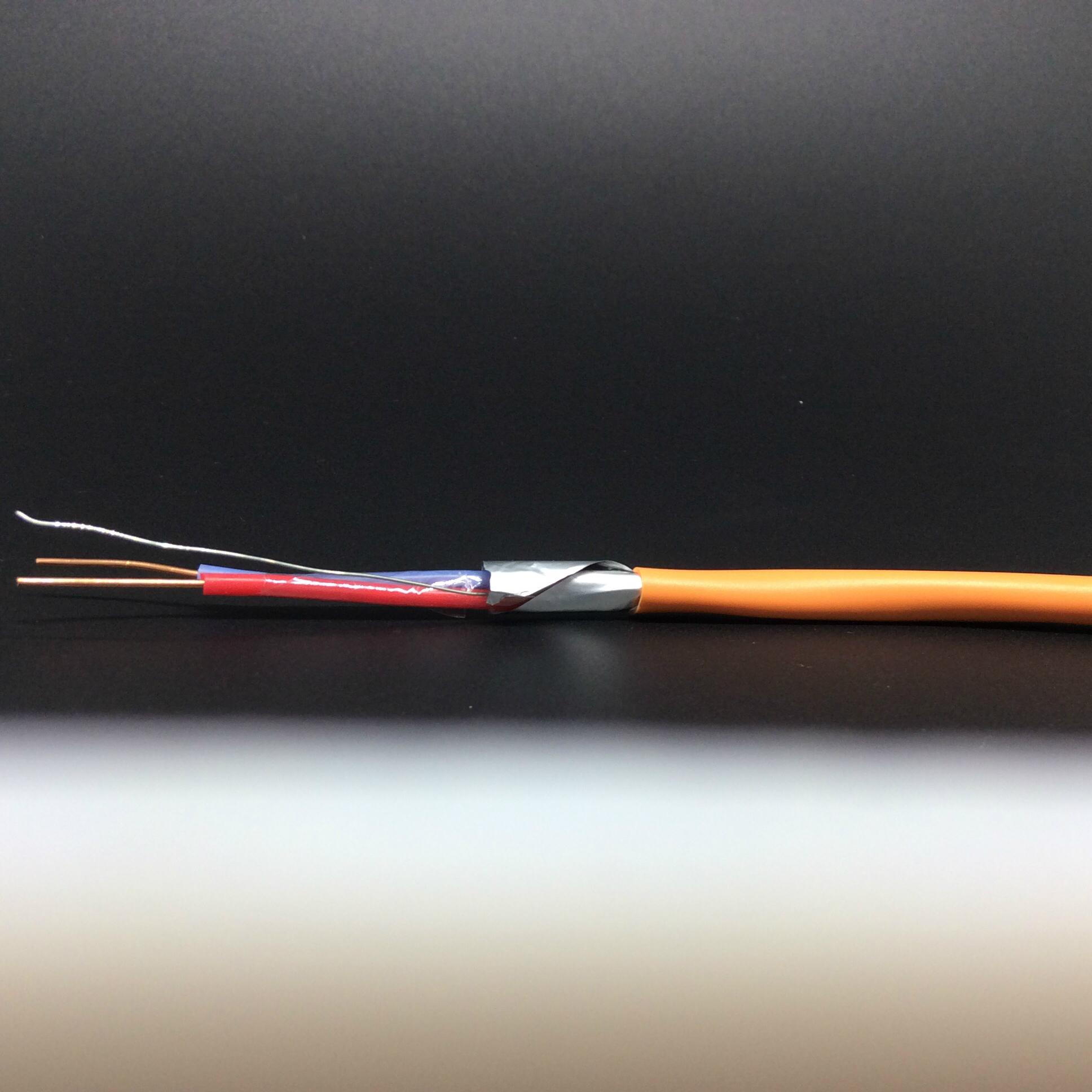

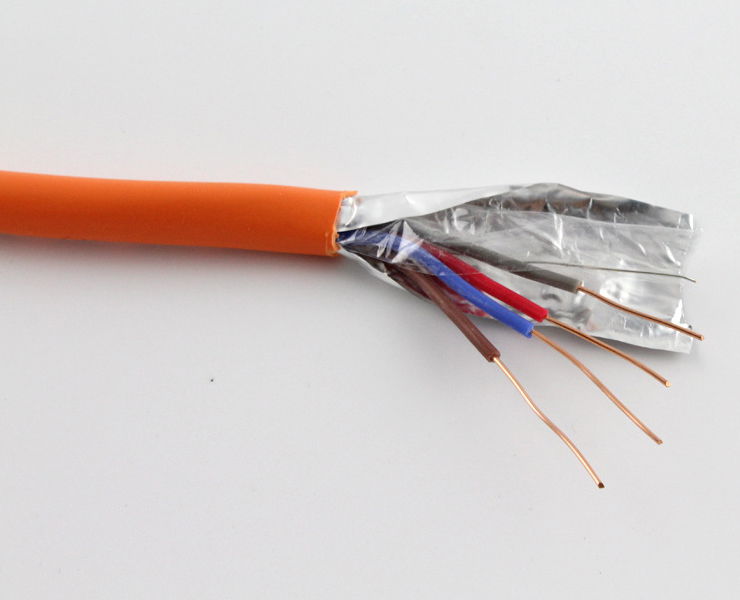

| Shielded types | |||||||
| Conductors | NOM.THICKNESS(MM) | Nominal0.D. | Capacitance | Impedance | DC Resistance | ||
| Number | Solid | Insulation | Jacket | Inch | pf/ft | Ohms | Ohms/M' |
| 2 | 14 AWG | 0.010" | 0.016" | 0.210" | 52 | 29 | 2.54 |
| 4 | 14 AWG | 0.010" | 0.016" | 0.220" | 52 | 29 | 2.54 |
| Drain Wire | 18 AWG Solid Tinned-Copper | ||||||
| Shield | 0.001" thick Aluminum/Mylar | ||||||
| Color | |||||||
| Number | Description | ||||||
| 2 | Blk,Red | ||||||
| 4 | Blk,Red,Ylw,Grn | ||||||
| Price Terms: | FOB SHANGHAI |
|---|---|
| Payment Terms: | TT/ LC |

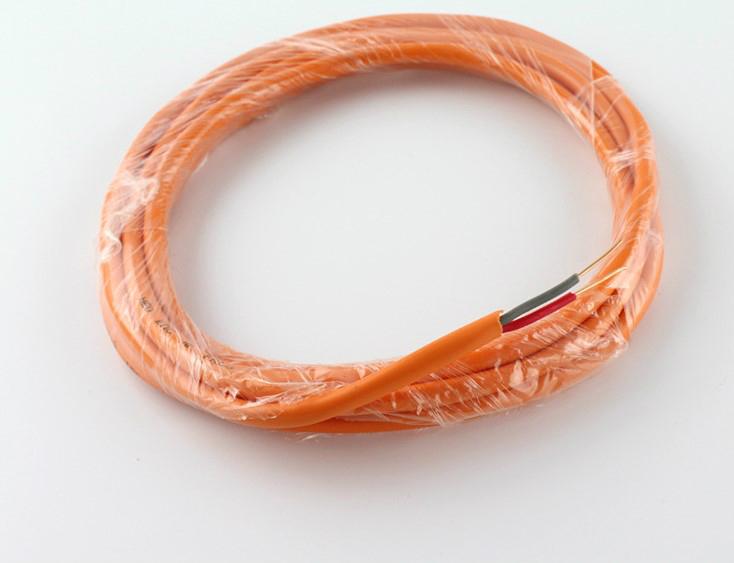

| Packing: | 305m/ 500m Wooden Spool |
| Lead Time: | 20days |
| Standards Certificate: | CE/ ROHS/ UL |
