| Model: | ppr-gf-ppr pipe |
|---|---|
| Brand: | KAIDE |
| Origin: | Made In China |
| Category: | Industrial Supplies / Rubber & Plastics Machine |
| Label: | 20mm-110mm ppr pipe , ppr pipe machine , ppr pipe line |
| Price: |
¥1
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:25 Nov, 2016 |
| 4 Layers Glassfiber PPR Composite (PE Anti-UV )Pipe Production Line | ||||||||
| The production line to produce 4 layers PPR-GF-PPR pipe, also can be used to produce singly layer PPR pipe, 3 layers Glassfiber PPR pipe.
|
||||||||
| Line Model | Screw Diameter | L/D | Production Scope | Production Speed | Nominal Power | |||
| SJ-60 | Ф60/65/65mm | 36/3/333:1 | ф20-63(110)mm | 20m/min | 165KW | |||
| SJ-65 | ф65/65/65mm | 33/33/33:1 | ф20-63(110)mm | 15m/min | 119KW | |||
| ● Gravimeter System

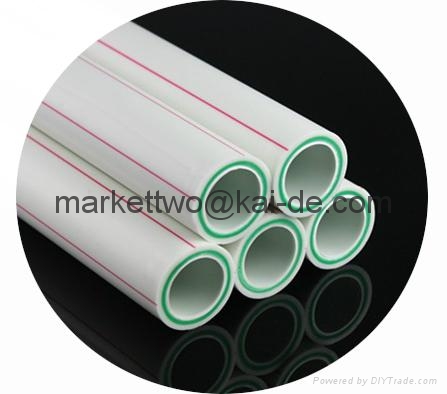

High precise Gravimeter control system of is applied in this glassfiber PPR pipe production line. (1)It is used for measuring & calculating and precise control of pipe weight per meter and its extrusion output, to realize the constancy of pipe weight. (2)The application of this system can shorten the start-up time, improve the produced pipe quality, and save raw material. ● Co-extrusion die head (1)Patented specially designed adjustable co-extrusion die head, can ensure even thickness of three layers, (2)Each layer thickness can be adjusted freely; no need to adjust the extruder’s rotating speed. ● Haul-off machine (1)The haul-off machine adopts structure of high speed multi-group roller clamping type. (2) Completely overcomes the vibration & skip problems in the traditional mode, ensuring high-speed stable pulling. ● PE Anti-UV Layer Extruder (1)PE Layer thickness about 0.6mm-0.8mm, this PE Anti-UV layer extruder is specially designed for PE raw materials extruded. ● Manufactured Pipe What is the four layers refer? ① The outer layer is PE Anti-UV layer with thickness 0.6mm-0.8mm ② The second layer is PPR layer ③ The third layer is glassfiber layer ④ The forth layer is PPR layer . This special 4 layers fiber reinforced PPR pipe is mostly suitable for high temperature hot water transporting in outdoors , and the PE Anti-UV layer can lengthen the lifespan of the pipe, resistance the ultraviolet rays, with wide application in the areas with strong sunlight and solarization. |
||||||||
