I.Product introduction:

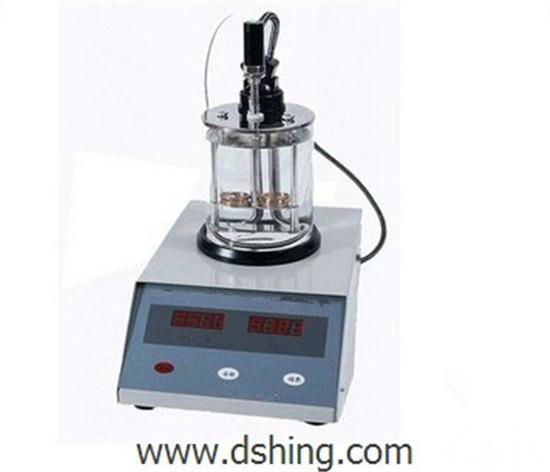

1) DSHD-2806E Asphalt Softening Point Tester is designed and

  developed as per the National Standard of People’s Republic

  of China GB/T4507 “Test Methods for Softening Point of Asphalt”

  and T0606 “Asphalt Softening Point Test (Ring and Ball Methods)”

  In the Industry Standard of People’s Republic of China JTJ052

  Specifications and Test Methods of Bitumen and Bituminous

  Mixtures for Highway Engineering.

2) DSHD-2806E Asphalt Softening Point Tester is applied to

  Determine the softening point of asphalt, tar, liquid asphalt and

  other types of asphalt. The instrument is the best choice of

  asphalt manufacturers, highway and bridge construction companies,

  college and universities, and research and development departments.

3) DSHD-2806E Asphalt Softening Point Tester adopts microcomputer

  controlling technology, linear heating and automatic stirring working

  mode. The instrument can determine two samples at the same time

  and show test results automatically. It is convenient, efficient, and

  reliable and is the desired instrument for laboratory to determine the

  softening point of asphalt.

II. Main technical specifications and parameters

　1. Power supply: AC 220V (-5%~10%), 50 Hz
　2. Measurement range: 5.0 ℃~90±0.5 ℃; or 5.0 ℃~75±0.5 ℃

    (You should use low temperature water for measurement at 5.0 ℃

ambient temperature)
　3. Temperature resolution: 0.01 ℃
　4. Stirrer: Its speed can be continuously adjusted
　5. Heating rate: It will be 5.0±0.5 ℃/min after 3 minutes in the

measurement state
　6. Heating power: 800 W;
　7. Cubage of beaker: 1000 ml
　8. Environment: The working temperature should be lower than 35 ℃

and keep stable and without air convection.
　9. Relative humidity: ≤ 85%
　10. Total power consumption: ≤ 850 W

III.More softening point tester

DSHD-2806E Asphalt Softening Point Tester

DSHD-2806F Asphalt Softening Point Tester

DSHD-2806G Automatic Asphalt Softening Point Tester

DSHD-2806H Automatic Asphalt Softening Point Tester

DSHD-2806I Fully-automatic Asphalt Softening Point Tester

DSHD-2806J Fully-automatic Asphalt Softening Point Tester

DSHD-2806 Asphalt Softening Point Tester
