| Model: | TR-5030 |
|---|---|
| Brand: | TRIUMPH |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Welding Machinery |
| Label: | Mini laser cutting , mini laser engraving , laser cutting machin |
| Price: |
US $1700
/ set
|
| Min. Order: | 1 set |
| Live Chat: |  | Last Online:25 Apr, 2020 |
Product Description

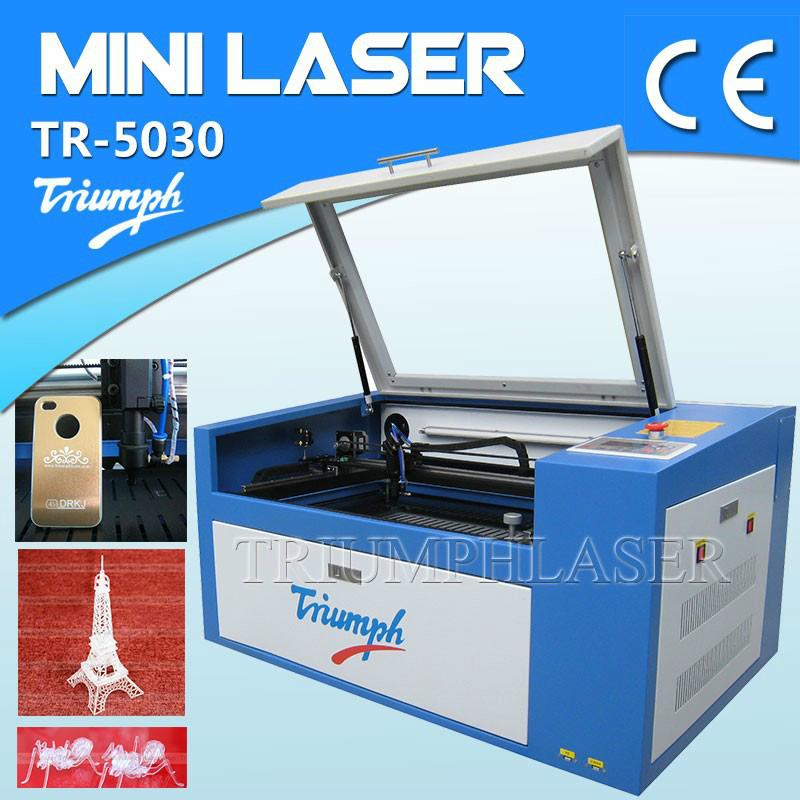

CE FDA manufacture CO2 laser cutting machine 50W/60W/80W/100W/130W/150W/260W
|
Wood cutting |
http://www.triumphlaser.com/12mm%20wood%20laser%20cutting.html |
|
Bamboo engraving |
http://www.triumphlaser.com/The%20Great%20Wall%20laser%20engraving%20on%20bamboo.html |
|
Acrylic cutting |
http://www.triumphlaser.com/Bigben%20wall%20clock%20acrylic%20laser%20cutting.html |
This model is suitable for various materials, such as bamboo piece, double-color planks,boulder,horns,leather,crystal, wood,organic plastic,abrics, paper, Acrylic and Plastics.
Technical Parameters
Technology parameter
|
Model |
TR-5030 |
TR-6040 |
|
Working area(mm) |
500*300 |
600*400 |
|
Working power |
50W;60W as optional |
|
|
Laser type |
CO2 Sealed laser tube,10.6um |
|
|
Cooling type |
Water cooling |
|
|
Engraving speed |
0-700mm/s |
|
|
Cutting speed |
0-500mm/s |
|
|
Laser output control |
0-100% set by software |
|
|
Min.engraving size |
English 1*0.1mm |
|
|
Highest scanning precision |
100-1000DPI |
|
|
Controlling software |
Triumphlasersoft(can be connect with Adobe illustrator,coreldraw,AutoCAD) |
|
|
Software system support |
Win XP , Win 7, Win 8, Win10 , 32/64bit , keep following Windows updating |
|
|
Locating accuracy |
≤0.01 |
|
|
Graphic format supported |
DST PLT BMP DXF DWGAI LAS,etc |
|
|
Compatible software |
Coreldraw, photoshop,autocad,tajima,etc. |
|
|
Color separation |
Yes |
|
|
Auxiliary equipments |
Exhaust fan and air exhaust pipe |
|
|
Power supply |
110V-220V+10% 50HZ/60HZ |
|
|
Drive system |
High-precision 3-phase stepper motor;servo motor as optional |
|
|
Working Environment |
Temperature:0-45C,Humidity:5-95% |
|
|
Standard configuration |
Water cooling system(3000water chiller as optional) manually up and downtable(motorised lifting table as optional,controlled by mainboard instead of separate manual controlling) Air Compressor,Exhaust fan/Smoke pipe, High quality straight linear guiding rails, Imported Optical Lens, SP brand Laser tube-10000hours' lifetime, Emergency stop, No-water protecting, USB offline control system, |
|
|
Recommand |
Lens,mirriors,honeycomb table ,laser tube for spare parts |
|
Technology
Safety and advanced

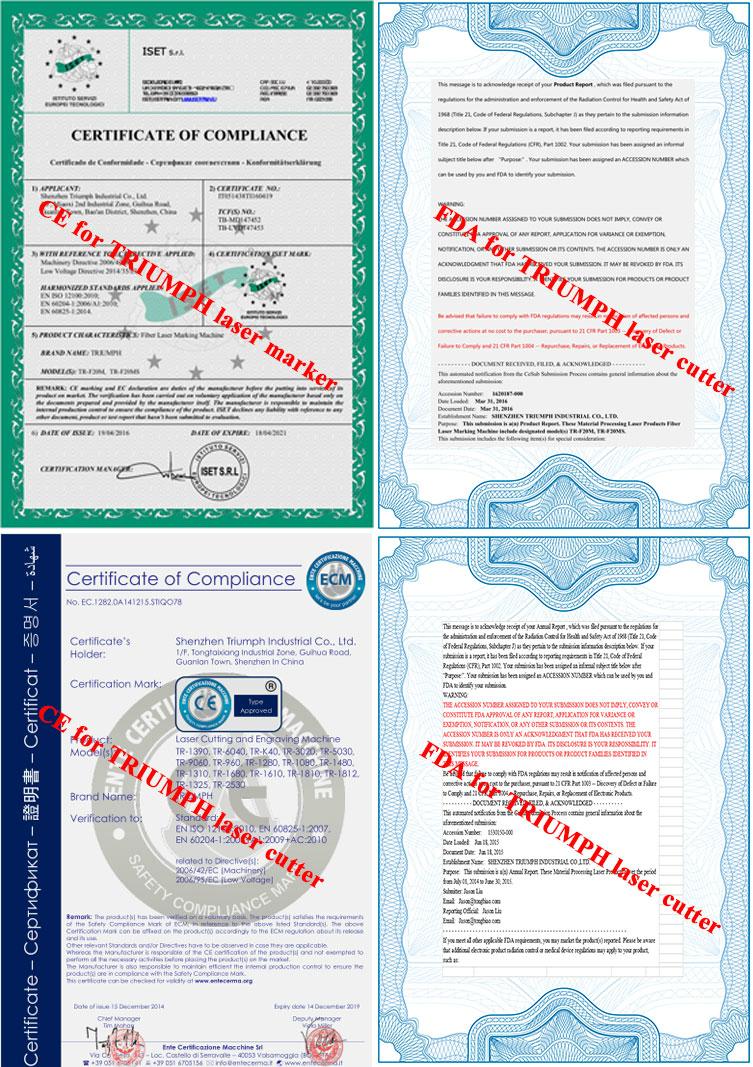

CE,FDA approvel
Safety Key switch
Safety Cap protection
Safety No-water protecting
Full Professional Guiding Videos and instruction
Imported mirrors and lens insure high quality laser beam,better cutting engraving
High Quality Laser tube provides the Strong beam and Long service life.
Adopt Automatically temperature controlling water cooling system, insure longer life time of laser tube .
Taiwan Brand Linear guide way insure the stable and accuracy cutting engraving .
Inner quality control:
In the processing of production, our professional technical engineers inspect the proce ssing to ensure the quality of products
Every Laser tube must be tested before install for 24 hours !
Every machine must be tested before delivery for 24 hours , all of them are absolutely qualified.
Material Available
Our Services
Warranty:
Mechanical and electronic components: 2 year against manufacturing defects. Parts and components damaged due to improper usage and operation of the equipment are not covered under warranty.
CO2 laser tube: 6 months against manufacturing defects. Laser optical components are considered consumables and are therefore not covered during the warranty period.
Service :
Main parts(excluding the consumables) shall be changed free of charge if
there is any problem during the warranty period.
Lifetime maintenance free of charge.
We will provide the consumable parts at an agency price when you need replacement.
Maintenance and technological support: Whole life.
24hours Technical support by Email or Calling.
