Crane Magnet Lifting Magnetic Lifter for Steel Pipe

Model:MW29-12070L/1
Brand:SHENGANG
Origin:Made In China
Category:Electronics & Electricity / Magnetic Materials
Label:Magnetic Lifter , Magnet Lifting , pipe lifting magnet
Price: US $1000 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Yueyang Shengang Lifting Electromagnet Co.,Ltd

Free MemberHu Nan - China
Live Chat:
Last Online:11 Aug, 2017

Product Description

High Quality Crane Magnet Lifting, Magnetic Lifter

-- MW29 Series for Bundled Steel Pipe

Product Description

 Physical Product Photo:

pipe lifting equipment 4.jpg

MW29 3.jpg

Main Features:

  • Adopt totally sealing structure with good property of moisture-proofing
  • Majorized design by computer with reasonable structure, light dead-weight, strong attraction force and low energy consumption
  • The energizing coils are processed by special technology to improve the electrical property and mechanical property. Heat-resistant grade of insulating material reaches grade C with long service life
  • Rated power-on sustaining rate of normal type electromagnet is increased from 50% to 80%,which improves the efficiency of the electromagnet
  • High temperature type electromagnet adopts unique method of heat protection, the temperature of the attached materials is increased from 600 °C to 700 °C, which expands application range of the electromagnet
  • Simple and convenient installation, operation and maintenance

Benifits:

  • STRONG ATTRACTION FORCE AND ENERGY SAVING
  • NORMAL & HIGH TEMPERATURE OPTIONAL
  • SIMPLE OPERATION AND MAINTENANCEF

Features:

 The surface of magnetic pole is even, so the surface of steel pipe will not be damaged.
 Flexible operation. It can lift one to several bunches at a time.

Application:

The shape of magnetic pole is flat.  It is suitable for transporting bunched steel pipes with various kinds of outside diameter, length and quantity.

Main Technical Data:

Model

Overall dimension (mm)

Mass (mm)

Power (kw)

Example for lifting capacity(Diameter×length) combination of two electromagnets

A

B

C

D

E

F

G

MW29-10060L

1000

600

1000

500

100

170

32

900

5

Diameter of each punch is about500mm weight of each punch 1000kg

MW29-15060L

1500

600

1100

500

100

170

32

1300

7.5

Diameter of each punch is about600mm weight of each punch 1000kg

MW29-12070L

1200

700

1000

500

100

170

32

1800

8.5

Diameter of each punch is about 500mm weight of each punch 1000kg two bunches side by side

MW29-22070L

2200

700

1500

700

125

170

38

3500

15

Diameter of each punch is about 500mm weight of each punch 1000kg four bunches side by side

 Overall Dimension Drawing:


.jpg

FAQ

In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

1. What 's the outer diameter for each bundled steel pipe?  (diameter* length)?

2. What' s the lifting capacity you expect per time? how many bundles per time?

3. Kindly provide your power supply information (__V, DC/AC, ___Hz), and information for crane (single beam or double beam, single hook or double hook, how about the loading capacity).

For our relate products you may interested in, kindly click for details:

1. Lifting Electromagnet for Excavator Installation

2. Circular Lifting Electromagnet for Steel Scrap Lifting

3. Oval Shape Lifting Electromagnet for Steel Scrap Lifting

4.  Lifting Electromagnet for Billet Lifting

5.  Lifting Electromagnet for Sheet Plate

6. Self-discharging Electromagnetic Separator

7. Manual Discharging Type Rectangular Electromagnetic Separator

8. Manual Discharging Type Circular Electromagnetic Separator

*Lifting Magnet Series:

--application for transporating steel scraps, steel plates, billets,etc.


*Cable Reel Series:

--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..


Company Information

We are a professionl lifting electromagnet equipment manufacturer and exporter. Very sincerely looking for long-term win-win business here!

Major exports include lifting electromagnet, magnetic lifter, electromagnetic separator, cable reel, control cabinet and magnetic stirr, etc. with more than 15 years export experience.

Our factory also pass the SGS audit per year with certification issued.

We warmly welcome you to enquiry or visit us, and also appreciate any of your comments!

We also have our own brand as "SHENGANG"

QQ20150527100747.jpg .jpg

 .jpg .jpg

Packaging & Shipping

 (fixed iron frame with five-plywoodboard packing to keep magnetic lifter with a safety and long-distance transportation and no need fumigation when clear custom )

Our Services

 Quick Response:

We highly appreciate your any enquiry by email, fax or instant message.

We will reply your email or fax within 24 hours.

Please fell free to call us at any time if there is any questions.

Convenient Transportation:

All available shipping ways could be applied, by courier, air or sea.

Appointed shipping company or our own forwarders all could be used in shipment.

Full-way tracking the cargos for you till the goods arrive.


Product Image

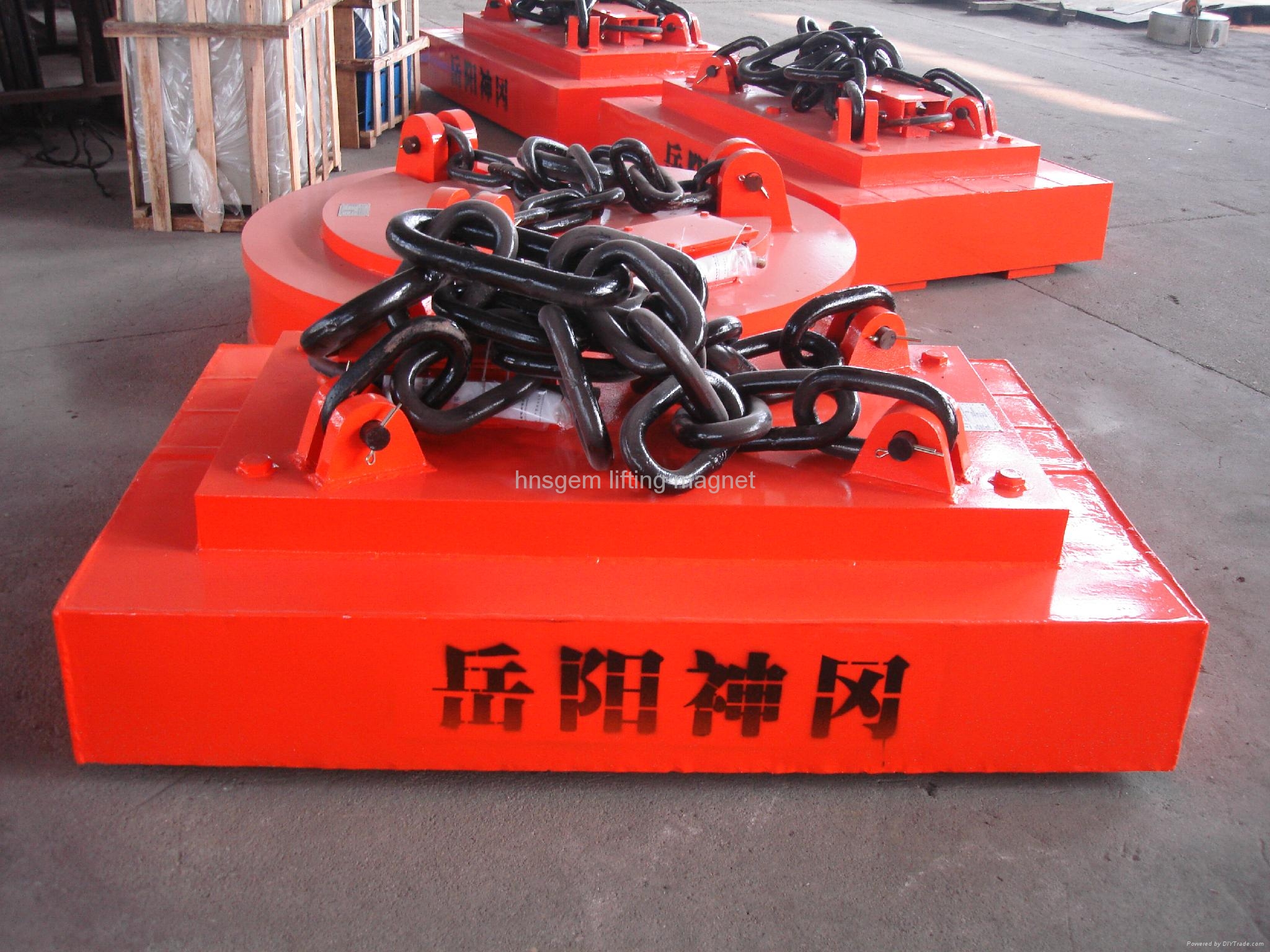

Crane Magnet Lifting Magnetic Lifter for Steel Pipe 1
Img 1

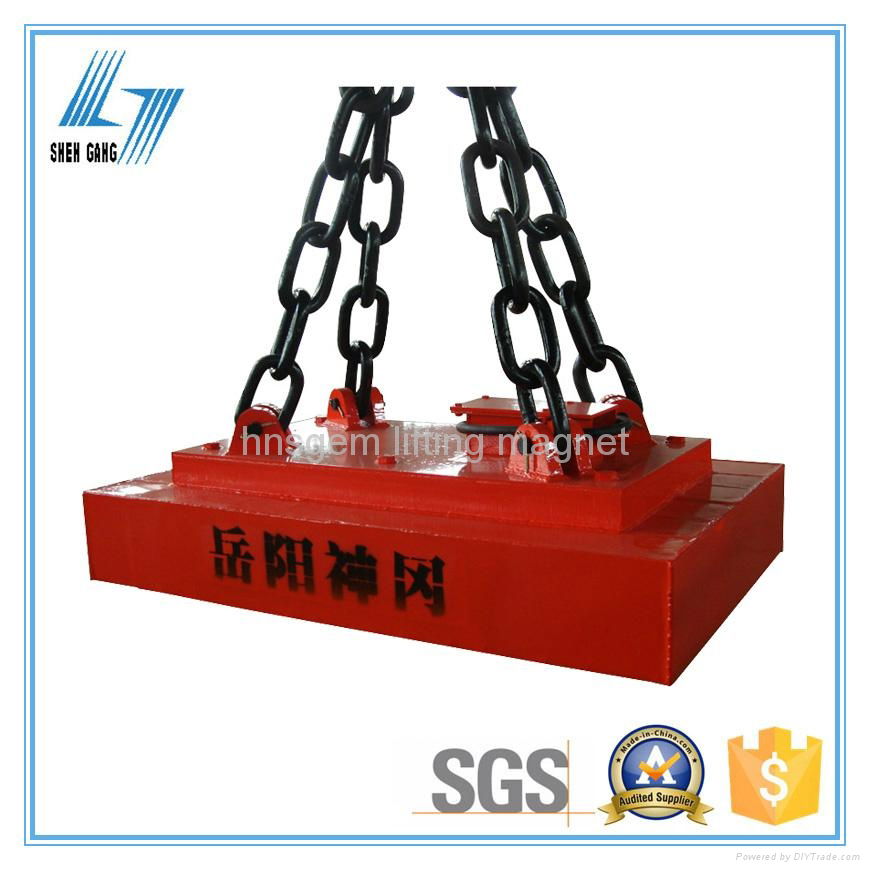

Crane Magnet Lifting Magnetic Lifter for Steel Pipe 2
Img 2

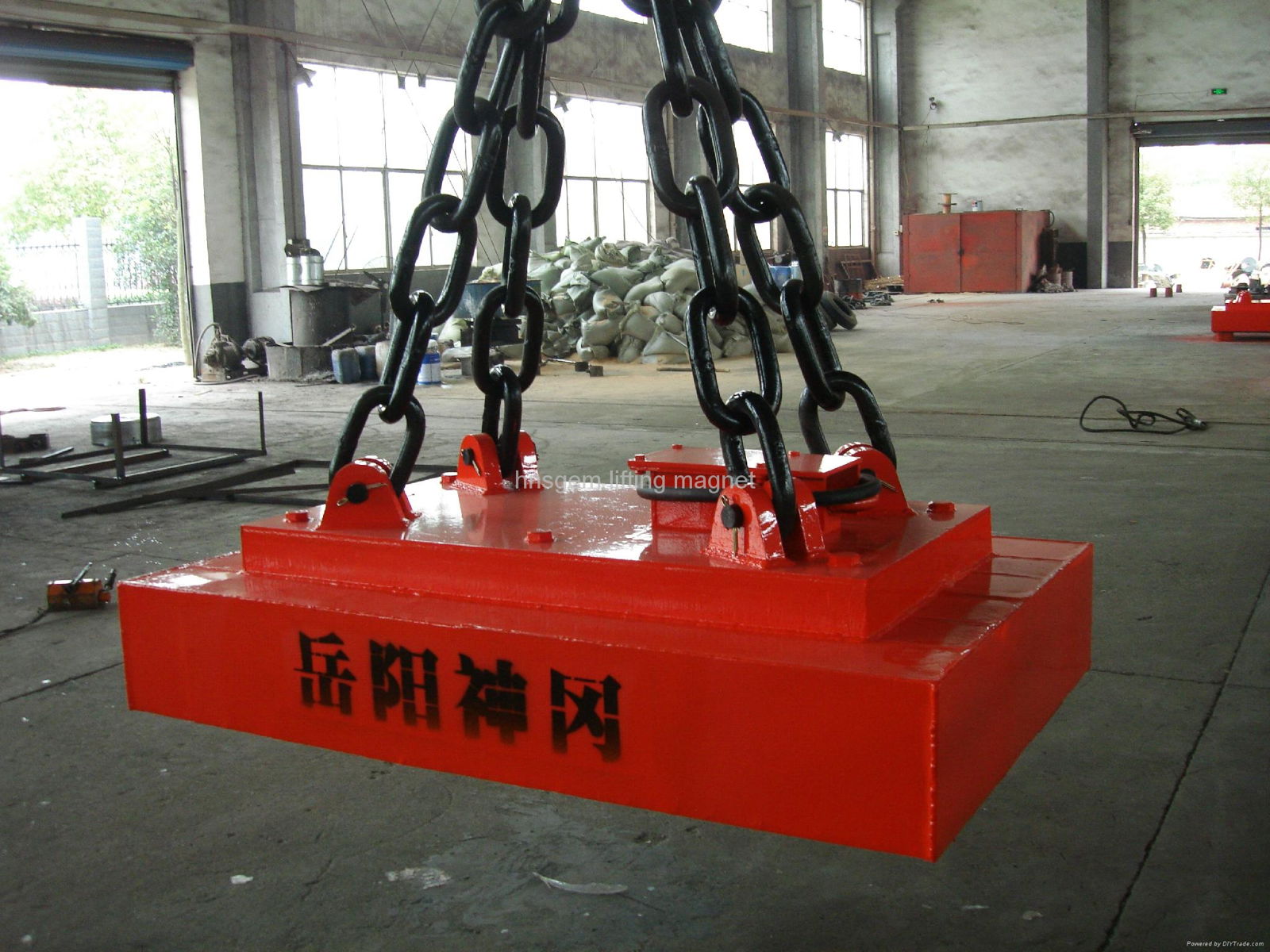

Crane Magnet Lifting Magnetic Lifter for Steel Pipe 3
Img 3

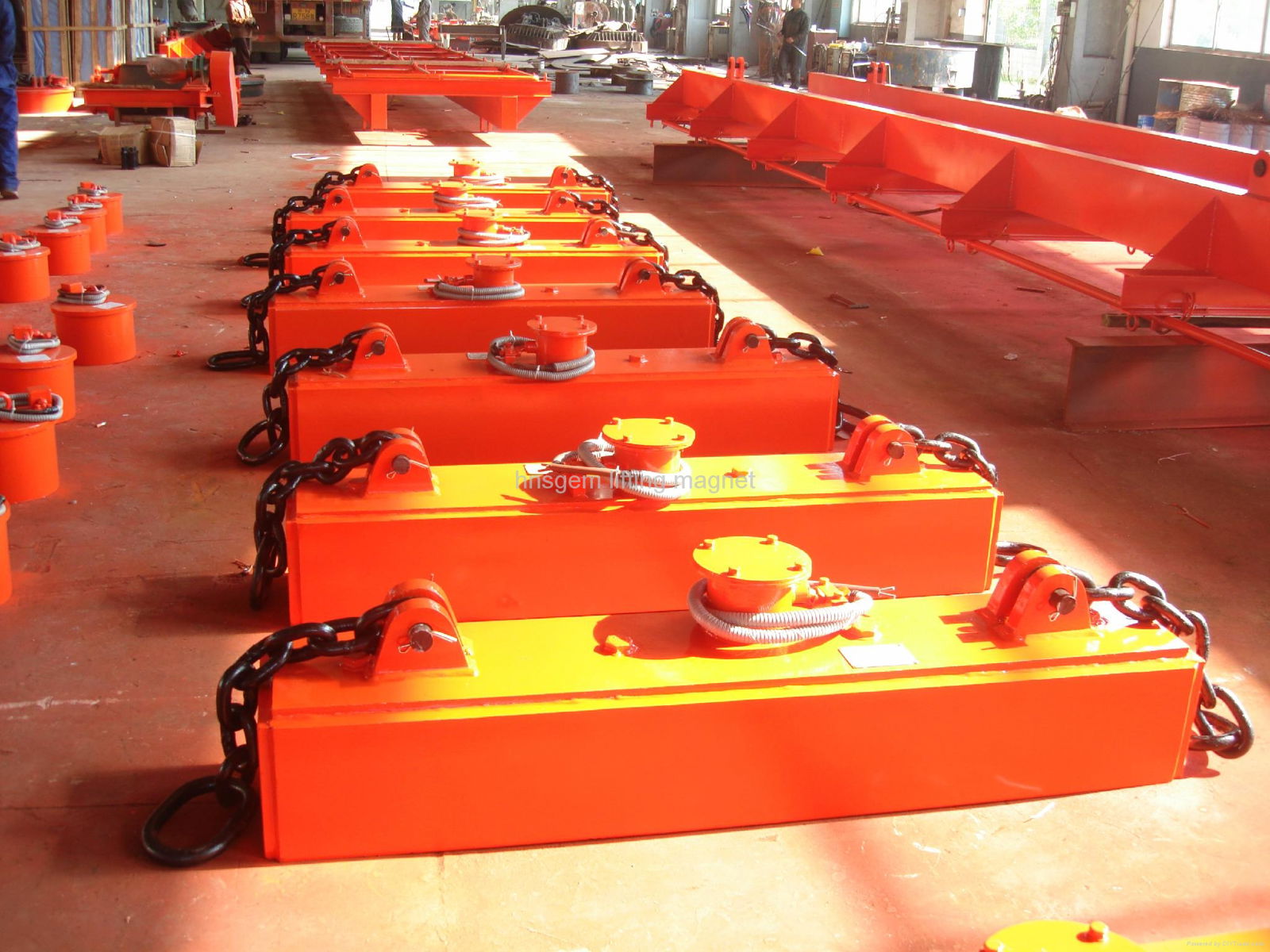

Crane Magnet Lifting Magnetic Lifter for Steel Pipe 4
