hot sale silicon lamination in transformer UPS

Model:EI-28 - EI-360
Brand:centersky
Origin:Made In China
Category:Electronics & Electricity / Magnetic Materials
Label:silicon steel , lamination , transformer
Price: US $1052 / TON
Min. Order:2 TON
Inquire Now Add to Basket

Member Information

Detail

Jiangyin Centersky Electrical Appliance Co.,Ltd.

Free MemberJiang Su - China
Live Chat:
点击这里给我发消息Last Online:12 Feb, 2019

Product Description


Product Details

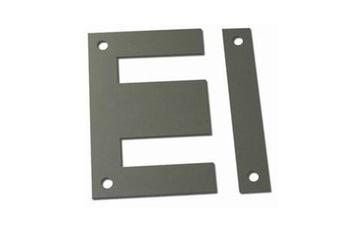

Brief Induction of Jiangyin silicon steel transformer laminations :

EI Lamination is made by the silicon steel strip.The model of EI lamination in standard sizes is from EI 28 to EI -240, and the model of EI lamination in non-standard sizes is from EI-36 to EI-360. the gap sizes of transformer lamination core can be customized.

Three -phase EI lamination is made by the silicon steel strip. the model of three-phase EI lamination is from three-phase (20) to three phase (100),and the hole size is from Φ4.5 to Φ14, The gap sizes of transformer lamination core can be customized.

UI lamination is made by the silicon steel strip.the model of UI lamination is from UI-30 to UI-100,and the hole zType a b c d e holes aperture(Φ)
Product Introduction
Product Parameters

Type a b c d e holes aperture(Φ)
EI- 28 28 4 6 8 17
EI-35 35 5 7.5 10 19.5
EI-41 41 6 8 13 21
EI-42 42 7 7 7 14
EI-48 48 8 8 16 24
EI-50 50 8 9 16 25.5
EI-57 57 9.5 9.5 19 28.5 4 4
EI-60 60 10 10 20 30 4 5
EI-66 66 11 11 22 33 4 4
EI-76.2 76.2 12.7 12.7 25.4 38.1 4 5
EI-78 78 13 13 26 39 4 5
EI-84 84 14 14 28 41 4 6
EI-85.8 85.8 14.3 14.3 28.6 42.9 4 5
EI-96 96 16 16 32 48 4 6
EI-105 105 17.5 17.5 35 52.5 4 6
EI-108 108 18 18 36 54 4 5.5
EI-114 114 19 19 38 57 4 7
EI-120 120 20 20 40 60 4 7
EI-133.2 133.2 22.2 22.2 44.4 66.6 4 7
EI-150 150 25 25 50 75 4 8
EI-152.4 152.4 25.4 25.4 50.8 76.2 4 8
EI-162 162 27 27 54 81 4 10
EI-168 168 28 28 50 84 4 10
EI-171 171 28.5 28.5 57 85.5 4 10
EI-180 180 30 30 60 90 4 10
EI-192 192 32 32 64 96 4 10
EI-270 270 45 45 90 135 4 12
EI-228 228 38 38 76 114 4 10
EI-300 300 50 50 100 150 4 12
EI-360 360 60 60 120 180 4 12


Production FolwChart
Product Packaging
Our Company
    Centersky is a global professional electromagnetic silicon steel manufacturing leader, specailized in the production of a variety of standard and non-standard series EI lamination, three-phase core, core ballasts, TL core series and a variety of reactor core products, widely for electronic transformers, power transformers, sensors, voltage regulator, computer power, leakage protection switch, welding machine, magnetic amplifiers, reactor, and instrumentation industries.
