NANO Aluminium Composite Panel

Introduction:

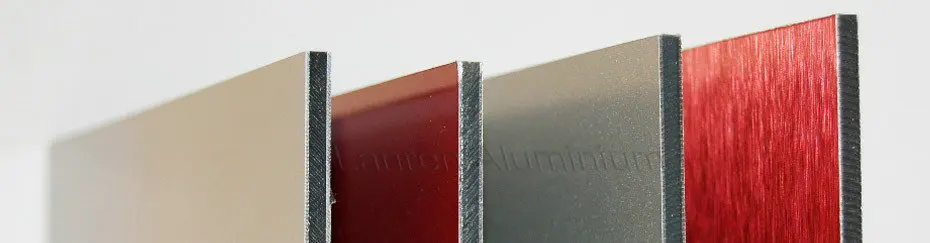

The panel comprises a polyethylene core between two aluminum skin, the LDPE core'sthickness and alloy's width can be designed according to customers requirement, the front surface is coating with PVDF paints, the protective film on the top surface can be peeled off. The back sheet is done by anti-corrosive pretreament or coating with anti-corrosive paints.The Nano-PVDF panel is coated another anti-pollution Nano paints based on the PVDF coating layer.This panel not only succeeded to the traditional PVDF coating panel's advantages. But by the high-tech Nano techonology ,it have more super advantages in pollution resistance, self-cleaning function, acid resistance and alkaline resistance.

Specification:

NANO  Aluminium composite panel

Panel Thickness(mm): 1.5mm-8mm

Aluminium Skin Thickness(mm): 0.04mm-0.5mm

Width(mm): 1000mm-2000mm

Length(mm): 2440mm-8000mm

Feature:

-Light weight, high strength, extreme rigidity, superior impact resistance,

-excellent surface flatness and smoothness ,

-heat insulation, sound insulation, fire-resistance,

-acid-resistance, alkali-resistance, good weatherproofing and non-resonance

-various uniform colors ,can be easily processed and fabricated, quickly installed,

-elegant and magnificent, good flexibility fits various designs,

-easily maintenance, simply cleaning

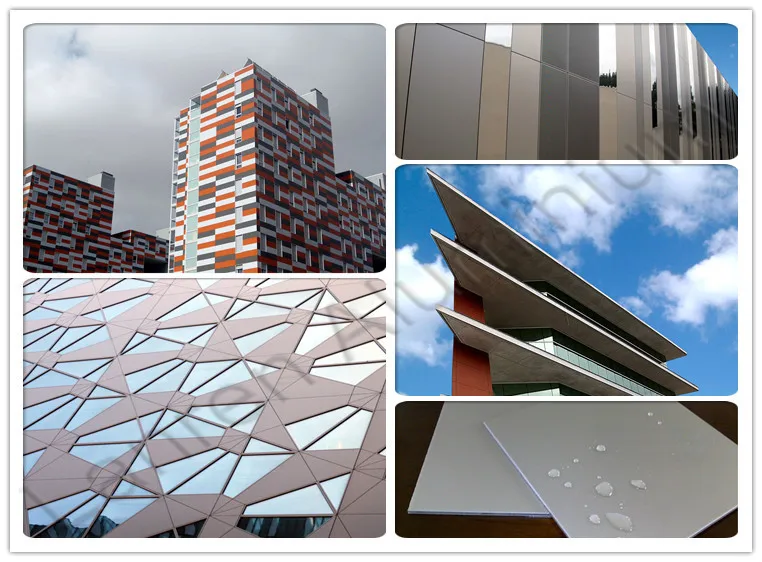

Applications:

-Constructional exterior curtain walls;

-Decorative renovation for storey-added old buildings;

-Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;

-Advertisement board, display platforms and signboards;

-Wallboard and ceilings for tunnels;

-Raw materials in industrial purpose;

-Materials used for vehicle and boat.

Color Chart:

Color Chart 1:

Milk White,Black,Silver Brush,Bronze,Black Brush,Black Golden Sand,Champagne Silver,Finland Green,Champagne Golden,Turquosise,Matt White,Ivory White

Color Chart 2:

Emerald,Post Green,Cambridge Blue,Telecom Blue,Dark Blue,Jadeite Silver,Black Glossy,Black Brush,Flash Golden Yellow,Flash Silver Metallic,Advertising Yellow.

Color Chart 3:

Chinese Red,Tangerine,Yellow Green Glossy,Arabescato,Express Green,India Red,Portoro,Golden Brush,Silver Brush

  Our Manufactory:

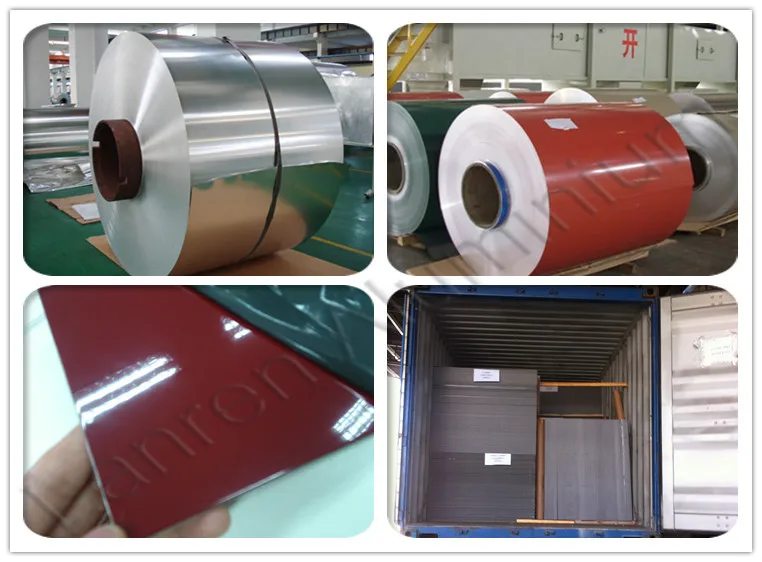

Lanren Aluminium equipped with the international advance level aluminium sheets, strips hot tandem rolling line, 2200mm hot and cold rolling mill, 1850mm super thin sheet rolling mills, 1700mm aluminium foil mills, 1600mm coating line and aluminium composite panel producing line, we also own press machine,doublesided milling, cutting machine, recoiler, grinding machine, quenching furnace, one set of tension prestretching machine, annealing furnace, smelting furnace machine and so on. Lanren provide primarily aluminium and its alloy sheets and plates, strips, circle, foils, embossed coil, colorful painted aluminium coil and sheet products etc.

   Exhibition In World:

   We had taken part exhibition hold in Sao Paulo, exhibition hold in Mexico, exhibition hold in Sao Paulo, Brazil, etc.
