1000L mash/lauter tun, brew kettle/whirlpool

Model:-
Brand:RAINBOW
Origin:Made In China
Category:Industrial Supplies / Food, Beverage & Cereal Machine
Label:mash tun , brew kettle , brewhouse
Price: US $10800 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Jinan Rainbow Machinery Co., Ltd.

Biz MemberShan Dong - China
Live Chat:Last Online:08 Nov, 2022

Product Description

COMPANY PROFILE:

We, Jinan Rainbow Machinery Co., Ltd are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-20000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, and installation support.

We have been exporting beer brewing tanks to many places like USA, Canada, Ecuador, Germany, France, Czech Republic, Finland, Norway, Switzerland, Australia, Taiwan....etc.

MAIN CONFIGURATIONS:

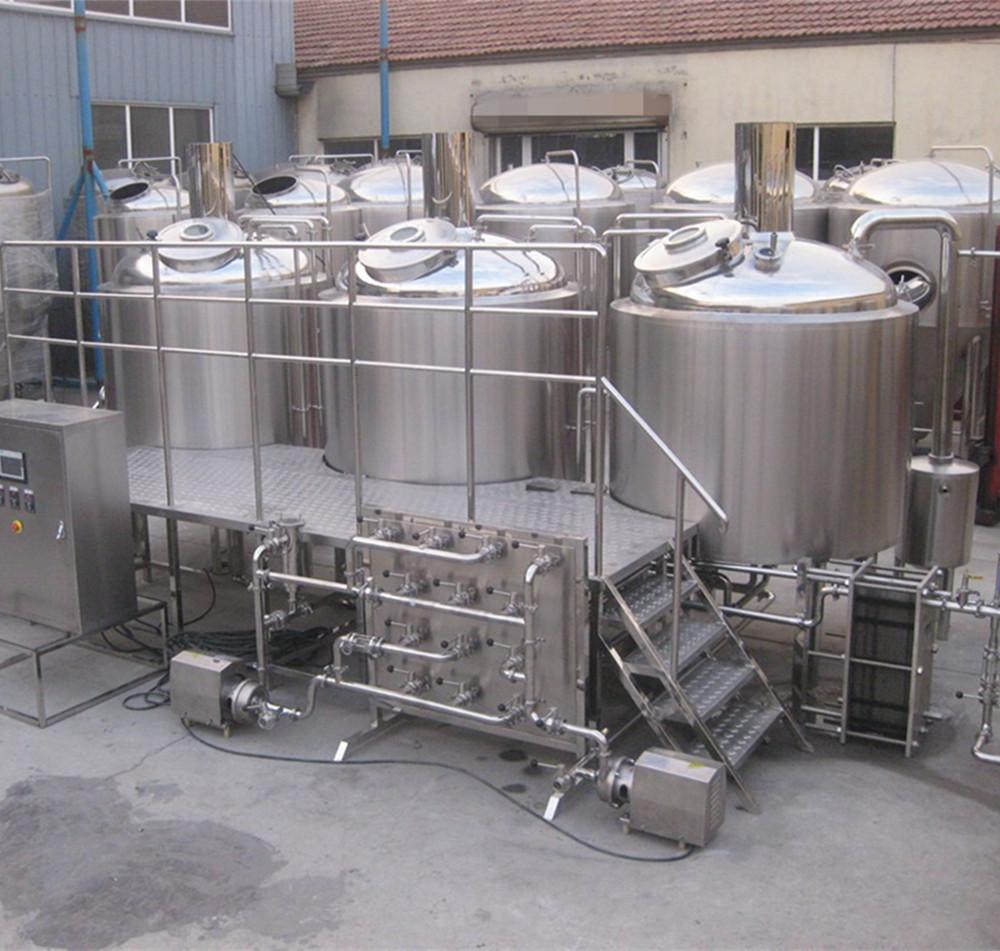

This brewhouse system includes 3 tanks(mash tun/lautering tun, brew kettle/whirlpool, hot liquid tank), please check the details in the following chart.

Optional: 1- mash/brew kettle, lauter tun/whirlpool

2- mash/brew kettle, lauter tun, whirlpool

3- mash tun, lauter tun, brew kettle/whirlpool

4- mash tun, lauter tun, brew kettle, whirlpool

This is the 1000L brewhouse system configuration for your reference.

Items

Equipment

Specification

Quantity

(PCS)

Brew house

Mash tun/lautering tun

1000L

1

Brew kettle/whirlpool

1000L

1

Hot liquid tank

1000L

1

Plate heat exchanger

10 m2

1

Pump

3 m³/h

1

Working platform



1

Heating source: electricity, gas fired or steam heating

Material: stainless steel 304 or copper



Main features of brewhouse

Brewhouse system:

1) - inner wall stainless steel 304, 3mm;

- surface wall stainless steel 304 or copper, 2mm

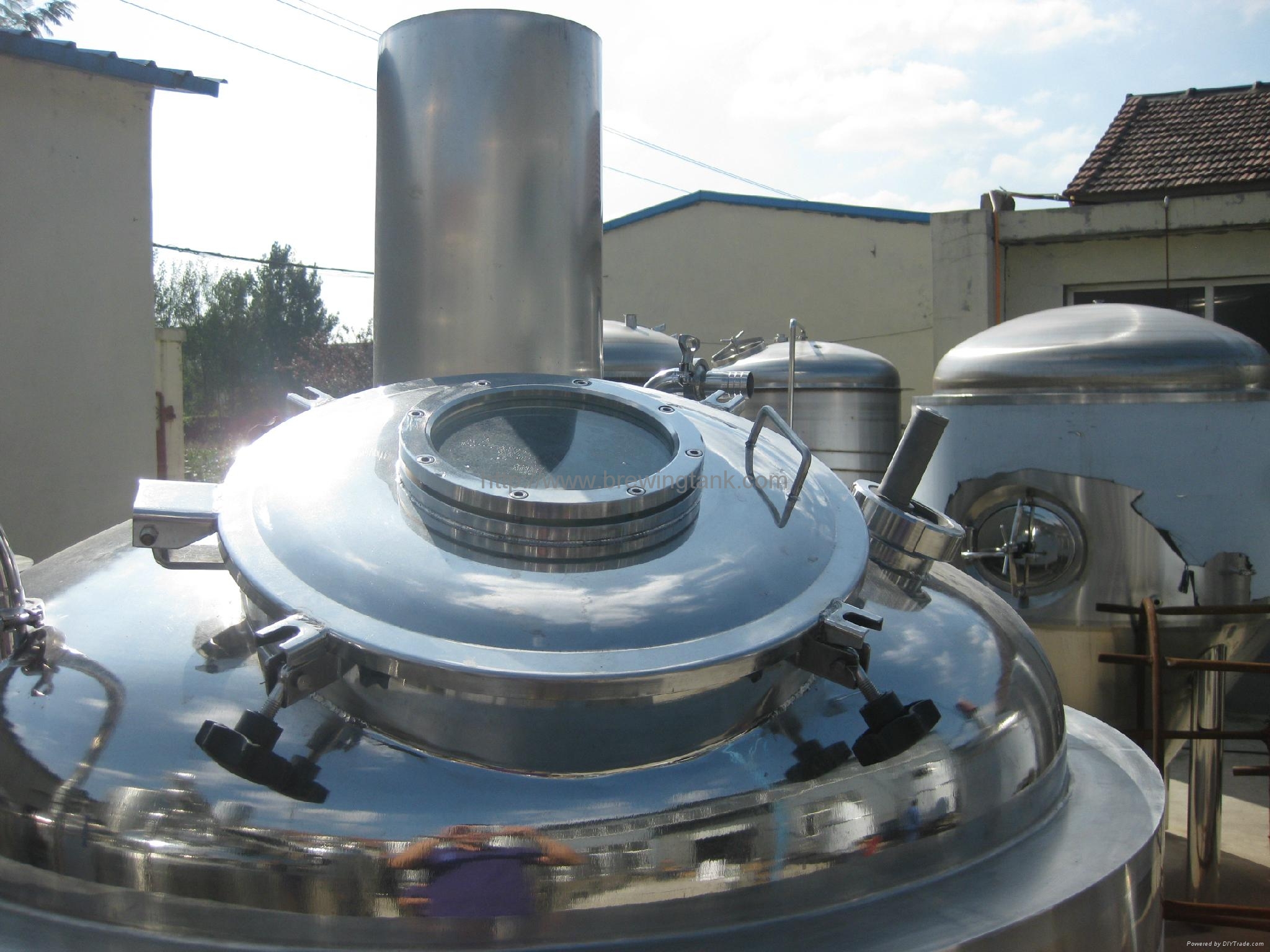

2) -Dome top, top manway with glass

-With Lighted sight-glass on dome top

-Side manway, cone bottom 160 degree

3) - insulation: polyurethane/rockwool 100mm;

- with inside CIP washing ball

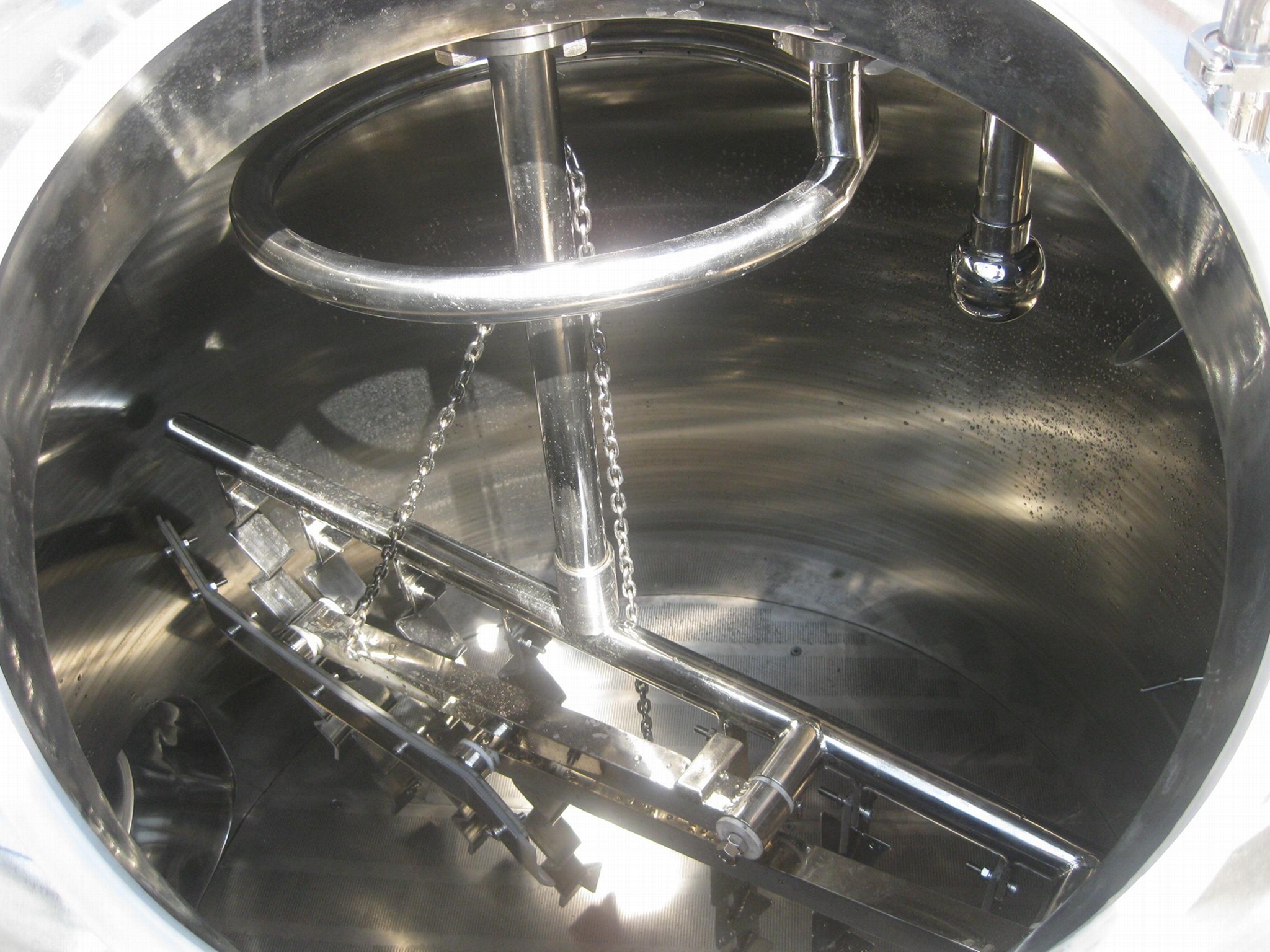

- raking agitator

-SteamJacket: Both on bottom and side,thickness:3.0mm

-Easy-clean and detachable sparging arm

-Easy-clean and detachable false bottom

-Tangential inlet for whirlpool

-Thermowell for temperature sensor and thermometer....



For Your Reference:

1. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 1200L, 2000L, 3000L, 5000L, 8000L...( 1bbl, 2bbl, 5bbl, 10bbl....) per patch for your reference.

It can be customized, such as the capacity, material, voltage(like 380v, 50Hz, 3phases), heating source, etc.

2. The brewer can also brew draft beer, pale beer, brown beer, stout beer etc,

to meet different taste of customers.



OPTIONAL:

Complete beer brewing line

Beer bottling line: bottle washing machine, filling machine, capping machine,

pasteurization tank, labelling machine.

Kegs washer and filler.

Beer kegs(10L,20L,30L,50L...), beer tower.

Steam boiler.




Payment Terms:TT/LC

Product Image

1000L mash/lauter tun, brew kettle/whirlpool 1
Img 1
1000L mash/lauter tun, brew kettle/whirlpool 2
Img 2
1000L mash/lauter tun, brew kettle/whirlpool 3
Img 3
1000L mash/lauter tun, brew kettle/whirlpool 4
Img 4
1000L mash/lauter tun, brew kettle/whirlpool 5
Img 5
1000L mash/lauter tun, brew kettle/whirlpool 6
Img 6
1000L mash/lauter tun, brew kettle/whirlpool 7
Img 7
1000L mash/lauter tun, brew kettle/whirlpool 8
Img 8
1000L mash/lauter tun, brew kettle/whirlpool 9
Img 9
