| Model: | DIN EN 856 4SP |
|---|---|
| Brand: | GELEE |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machine Hardware / Hydraulic Parts |
| Label: | rubber hose , hydraulic rubber hos , rubber hydraulic hos |
| Price: |
US $2.3
/ meter
|
| Min. Order: | 2000000 meter |
| Live Chat: | Last Online:24 Apr, 2016 |

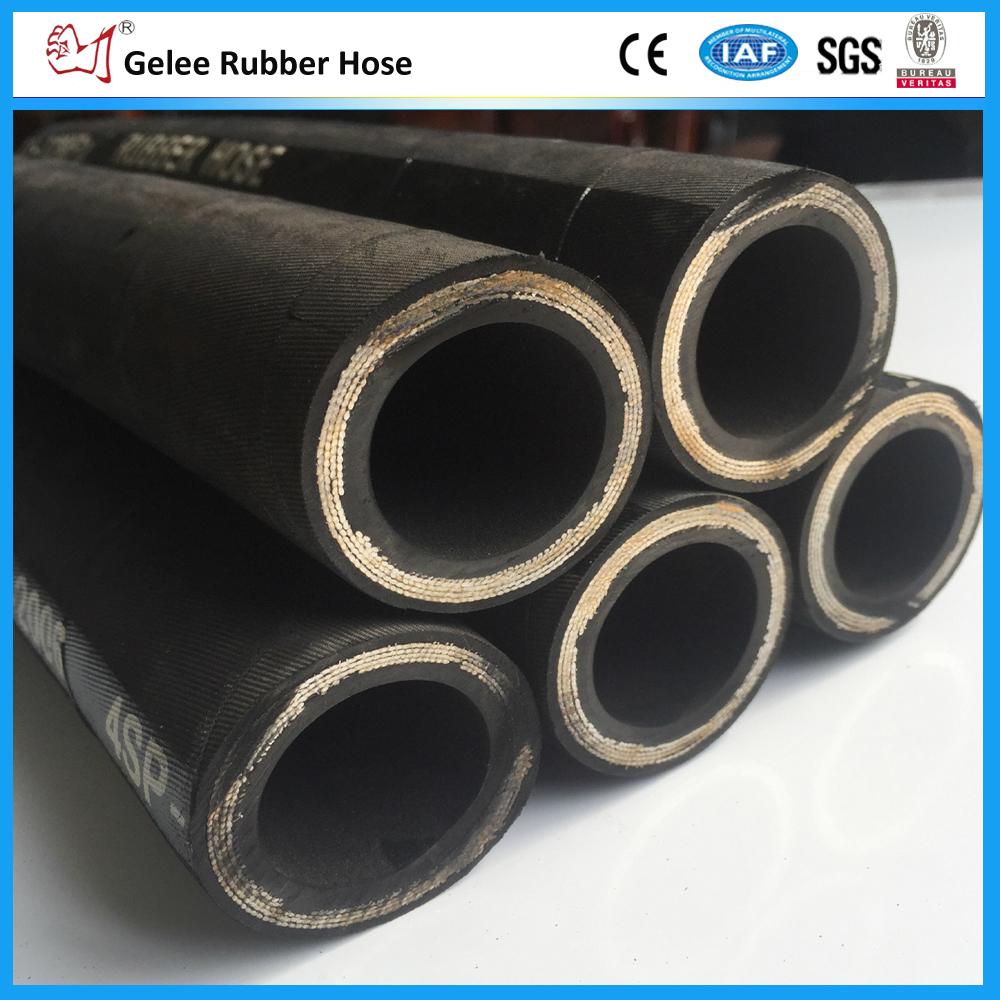

product name:Steel wire spiral hydraulic hose: DIN EN 856 4SP
Correspond/Exceed the standards of SAE J517 100 R10/DIN EN 856 4SP/ISO 3862
Inner tube: Oil resistant synthetic rubber.
Reinforcement: Four spiral plies of steel wire wrapped in alternating directions.
Cover: Heat, abrasion and ozone resistant synthetic rubber.
Temperature range: -40℃-＋100℃
Application: conveying petroleum-based hydraulic fluids, high pressure air and water,
The hose are available for hydraulic support, excavator,hydraulic equipment,air compressor,industrial machinery,machine tools, etc
| Type | I.D | R.O.D | O.D | Max W.P. | Min B.P. | Min B.R | Length | Weight |
| DN | mm | mm | mm | Mpa | Mpa | mm | m | K/m |
| 6×4SP | 6.6±0.4 | 14.7±0.6 | 17.9±0.8 | 45 | 180 | 150 | 50/20 | 0.811 |
| 8×4SP | 7.7±0.4 | 16.4±0.6 | 19.4±0.8 | 45 | 180 | 150 | 50/20 | 0.903 |
| 10×4SP | 9.7±0.4 | 17.4±0.6 | 21.4±0.8 | 44.5 | 178 | 180 | 50/20 | 1.01 |
| 13×4SP | 12.9±0.6 | 20.2±0.8 | 24.6±0.8 | 41.5 | 166 | 230 | 50/40/20 | 1.164 |
| 16×4SP | 16.1±0.6 | 23.8±0.8 | 28.2±0.8 | 35 | 140 | 250 | 40/20 | 1.336 |
| 19×4SP | 19.2±0.6 | 28.2±0.8 | 32.2±0.8 | 35 | 140 | 300 | 40/20 | 1.694 |
| 22×4SP | 22.6±0.6 | 32.0±0.8 | 35.6±1.2 | 28 | 112 | 340 | 40/20 | 1.884 |
| 25×4SP | 25.7±0.7 | 35.3±0.8 | 39.7±1.2 | 28 | 112 | 340 | 40/20 | 2.1 |
| 32×4SP | 32.2±0.8 | 46.0±1.0 | 50.8±1.6 | 21 | 84 | 460 | 40/20 | 3.09 |
| 38×4SP | 38.5±0.8 | 52.4±1.0 | 57.2±1.6 | 18.5 | 74 | 560 | 40/20 | 3.393 |
| 51×4SP | 51.2±0.8 | 65.3±1.0 | 69.8±1.6 | 16.5 | 66 | 660 | 40/20 | 5.148 |
| Price Terms: | FOB TIANJIN OR QINGDAO |
|---|---|
| Payment Terms: | TT/LC/DP |
| Packing: | Plastic transparent film and woven stripes |
| Standards Certificate: | ISO 9001 |
