| Model: | R4 |
|---|---|
| Brand: | R&X |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Terminal |
| Label: | solar connector , MC4 connector , pv cable |
| Price: |
US $0.74
/ pc
|
| Min. Order: | 100 pc |
| Live Chat: | Last Online:22 Apr, 2016 |
| Standard | TUV | UL |
| Rated Voltage | 1000V DC | 600V DC/1000V DC |

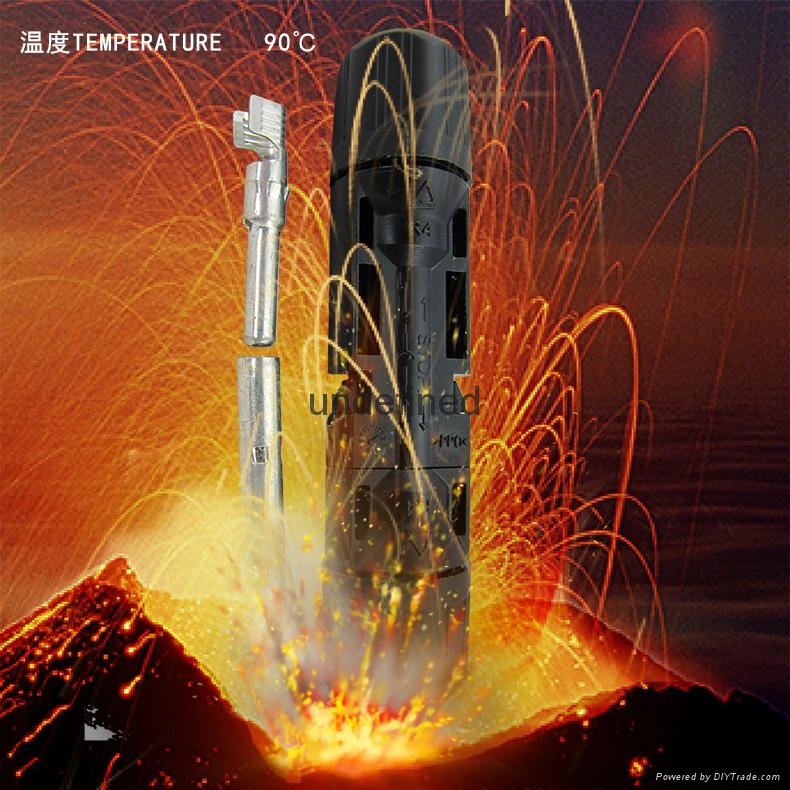

| Temperature Range | -40℃ up to +85℃ | -40℃ up to +90℃ |
| Rated Current | 16A（2.5mm2） 30A（2.5mm2） 52A（2.5mm2） | 16A（14AWG） 30A（12AWG） 52A（10AWG） |
| Test Voltage | 6KV for 1minute,10KV impulse(1.2/50µs)(IEC) | |
| Wire Size Range | 2.5sqmm、4sqmm、6sqmm | 12AWG、10AWG |

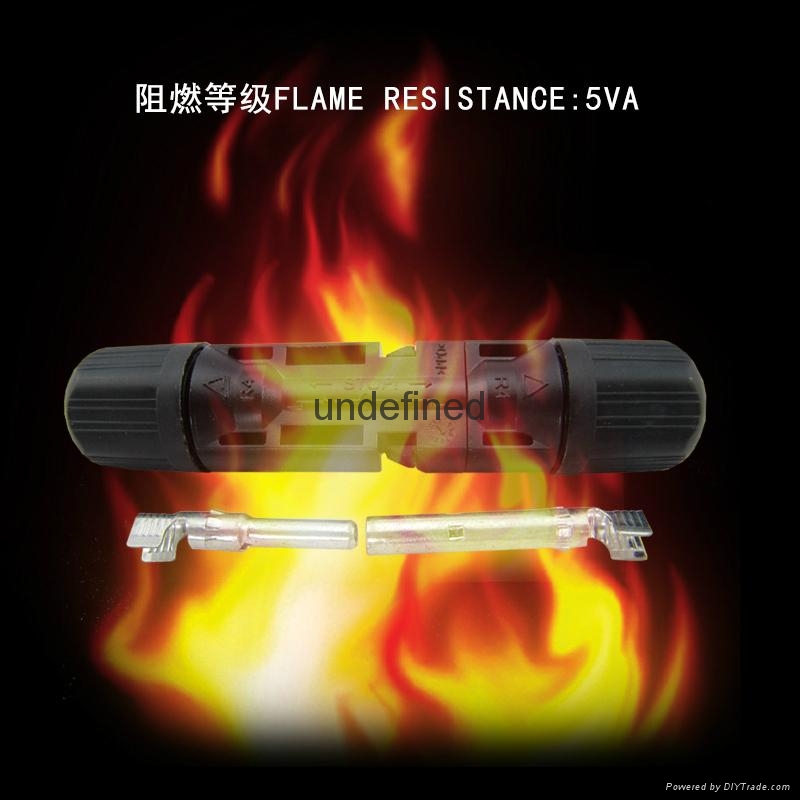

| Flame Resistance | 5VA | |
| Contact Resistance | 0.5mƱ | |
| Safety class | Class II | |
| Protection Degree | IP67 | |
| Connection Material | PPO 、PC/PA | |
| Contact Material | Copper CU-plated | |
| contact system | Machined/cold formed contact with Radsok® insert | |
