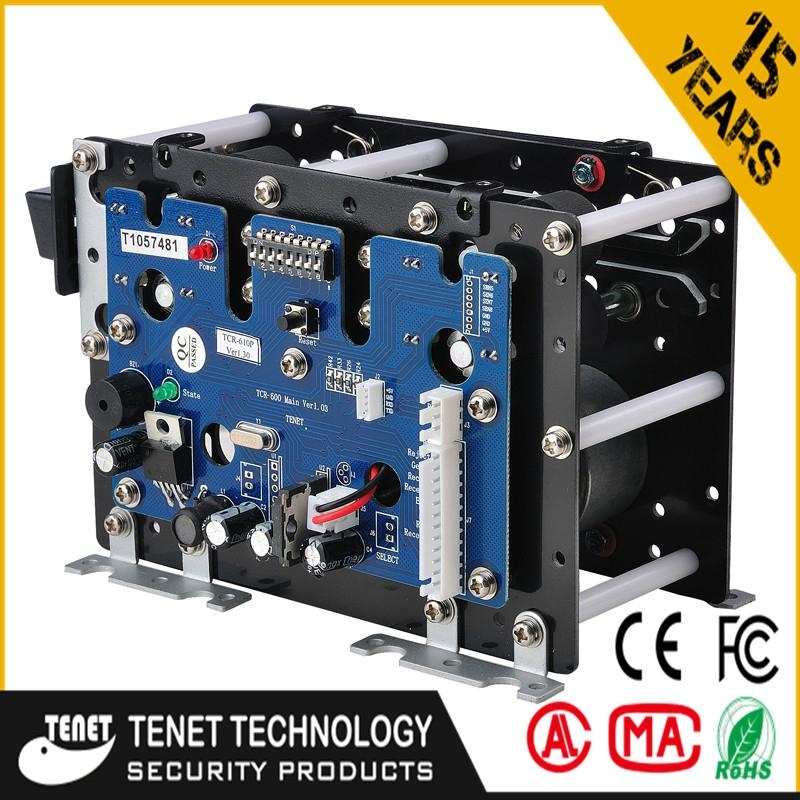

Card Receiver /Parking Ticket Collector TCR-610 For Parking System
General Description:
TCR-610P series card collectors are designed and produced on industrial standard. It is mainly used for toll system of car parks, and also widely used for access barriers system. It reserved the reader antenna installation location, with options to quit cards and callback cards automatically if overtime.
A.Products Features :
1)Industrial engineering design concept;
2)Complete machine use nonmetallic material ;
3)Provide secondary development technical support ;
4)Provide RFID industry application solutions .
B.Main Characteristics:
1. Communication by means of RS232 and I/O TTL
2. Microprocessor based electronics
3. SMD low consumption electronic circuits
4.Industrial design, stainless steel material used
5. Hardware watchdog and embedded OS
6. stoppage, fault, buzzer alarm
7. Avoiding collect by mistake and preventing insert card continuously
8. Enable and Open signal supplied for Host PC
9. Single motor, lower cost
Control interface:
1.Definition of TTL control interface (J5):
|
Pins |
Signal Name |
Pins |
Signal Name |
|
1 |
0 Volts |
7 |
Enable(Enable working) |
|
2 |
+24V DC |
8 |
Enter(blocking enter card signal) |
|
3 |
GND |
9 |
Received(Card Received to depot) |
|
4 |
Receive(Card need to receive) |
10 |
Get Card(Card Enter) |
|
5 |
Reject(Card need to reject) |
11 |
Rejected(Back to Enter) |
|
6 |
GND |
12 |
Jammed(Card jammed in the machine) |
2.Definition of RS232 control interface:
The J2 is the RS232 interface in the main board, 1 is the TXD, 2 is the RXD, 3 is the GND.
