CE standard Concrete pipe making machine,reinforce cement pipe machine

Concrete water pipe making machine

1.concrete drain pipe making machine introduction :

DY mode concrete water pipe making machine is new and high efficiency model concrete pipe producing system ,it absorb Europe technology and experience ,it could produce diameter Φ300-2000mm, usually length 1000-2000mm ( length can be extend into max 3000-4000mm) .total it need about 6-8 people to operate whole line ,depend on capacity .

Working process :

(1): first workers prepare the steel cage ,this cage can be made by manual ,also can be made by automatic machinery ,this machine could weld cage by automatic way.

(2): one worker clear the mould ,and brush de-mould oil

(3): use 5-10Ton crane to lift steel cage into mould, then use screw nut to fix the mould .

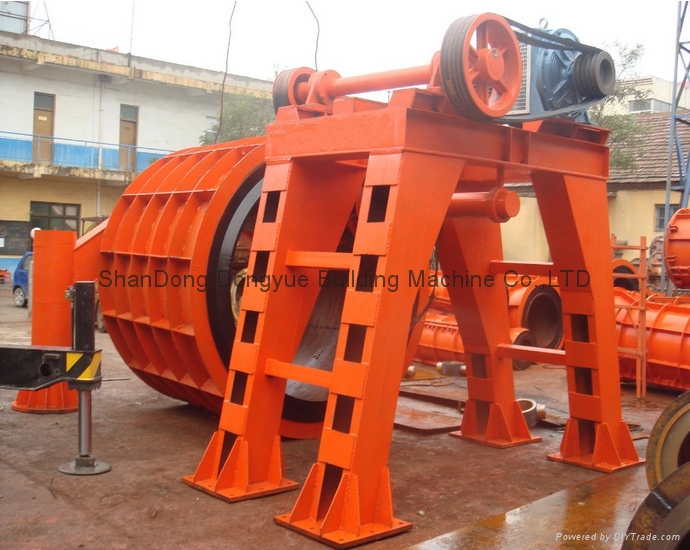

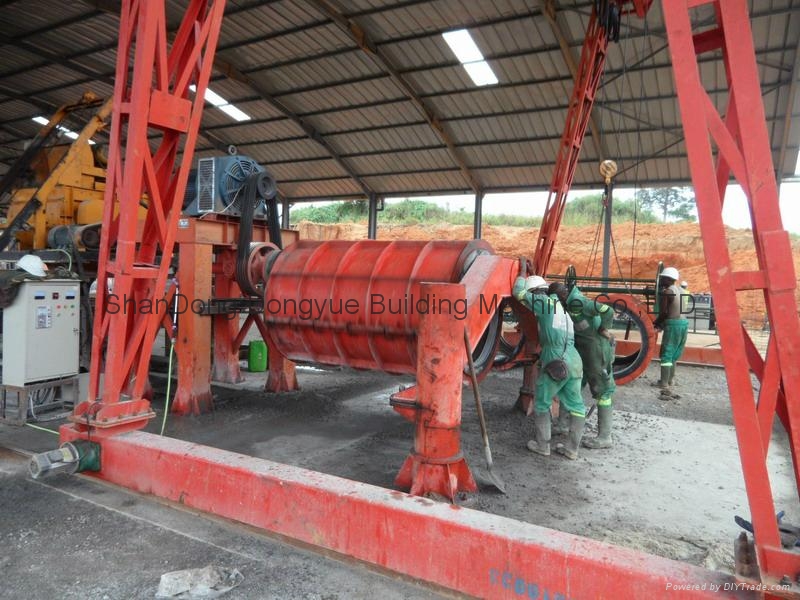

(4): lift the mould in to overhang rolling machine ,lock the machine and start running

(5): JS500 or JS750 machine mix the cement ,sand ,stone material ,then feed to the mould by automatic material feeding belt conveyer system . mould will be under the high speed running ,the material will be press into mould through main machine main shaft.

(6): after some minutes ,when material fill the mould ,then stop and open the machine ,use 5-10Ton crane to lift the mould with pipe to empty yard place.

(7): after 3 hours ,we could open the mould , then we have 5-7 days water curing .

2. Concrete drain pipe main model parameter

( reference,could be change according client requirmenets)

3. Concrete drain pipe products model :

A: Plain.

B: ,socket and spigot

C: male and female
