Full Automatic Perc Dry Cleaning Machine 1
  • Full Automatic Perc Dry Cleaning Machine 1

Full Automatic Perc Dry Cleaning Machine

Model:GX-8
Brand:-
Origin:Made In China
Category:Industrial Supplies / Machinery / Cleaning Machine
Label:Dry Cleaning Machine , Dry Cleaner , Perc Dry Cleaning
Price: US $6600 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Sharing Machinery Co.,Limited

Free MemberShang Hai - China
Live Chat:Last Online:20 Apr, 2016

Product Description

1.The main parts which touching perc are stainless steel 304 material, like basket, loading door, piping, liquid water separator, distillation tank, filter, button collector, air duct. Three solvent tanks made of zinc galvanized to ensure longer life span.

2.Inverter can be variable speed setting, it allows smooth linear speed acceleration and low noise during operation. Three automatic self-cleaning tanks is more flexibility, electronic dry controller to monitor solvent recovery, refrigeration solvent cooling to clean temperature sensitive fabrics.

3.Fully automatic per dry cleaning machine's computer operation system is super LCD display interface make it easy for every operator, even the beginner. Tens of programs including solvent level, solvent temperature, inlet and outlet air temperature, wash and extract speed, number of bath, cool down, all can be set freely according to individual dry cleaners. Computer controlled cooling water valve reduce water consumption .

4.Environmental friendly fully closed with high capacity refrigeration system make the solvent recovery up to 98%, keep the operation cost at minimal. Ecological nylon centrifugal filter can be cleaned by spinning motor automatically, carbon cartridge filter can be option.

5.Equipped with activated carbon safety absorption device, automatic wind-absorbing when opening door, ensuring health for operator.





Model GXQ-8 GXQ-10 GXQ-12 GXQ-16
Capacity - kg 8 10 12 16
Cylinder Diameter - mm 730 730 730 900
Cylinder Depth - mm 350 450 520 550
Cylinder Volume - L 145 185 215 285
Solvent tank 1 - L 95 105 105 135
Solvent tank 2 - L 95 105 105 135
Solvent tank 3 - L 95 105 105 135
Distillation tank - L 120 150 150 180
Wash -rpm 40 40 40 40
Spin-rpm 385 385 385 385
Distillation - L/h 80 80 80 80
Main motor power - kw 1.5 1.5 1.5 2.2
Solvent pump motor power - kw 0.55 0.55 0.55 0.75
Fan motor power - kw 0.55 1.10 1.10 1.50
Nylon filter motor power - kw 0.55 0.55 0.55 0.55
Refrigerator compressor power - kw 1.1 2.2 2.2 3.0
Steam Consumption-kg/hr       (steam heated) 30 30 35 38
Electricity Consumption-kw/hr (Electric heated) 13 19.5 20.5 28.5
Dimension - mm 1550x1150x2000 1550x1150x2050 1650x1280x2050 2000x1500x2300
Weight-kg 700 850 1000 1500

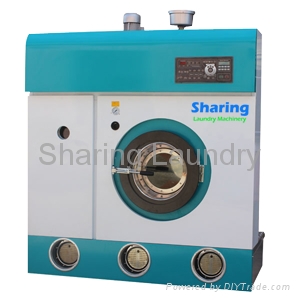

Product Image

Full Automatic Perc Dry Cleaning Machine 1
Img 1
