vibrating fork liquid level switch

Model:	LFV
Brand:	Trumen
Origin:	Made In India
Category:	Electronics & Electricity / Electronic Instrument / Analysis Instrument
Label:	level switch , liquid level switch , oil level switch
Price:	-
Min. Order:	1 pc

Inquire Now Add to Basket

Member Information

Trumen Technologies Pvt. Ltd.

Free MemberIndia

Live Chat:

Last Online:09 Jan, 2016

Product Description

Working principle

		Electronics of LFV12 excites the piezo-electric-crystals inside tuning fork, which makes the fork tines vibrate at their natural resonance frequency in free air.

		When fork tines are immersed in liquid, the frequency of fork vibration falls due to the density of liquid.

		This change in frequency is detected by electronic circuit.
		Liquid presence is thus detected. Applications For free-flowing liquids with liquid viscosity up-to 10,000cP. Suitable for side as well as top mounting. Minimum and maximum fail safe field selectable. Flow/no-flow detection in pipe-lines. PTFE/PFA/ECTFE coatings for corrosive liquids. Process temperature max 200 ºC. Process pressure max. 15 bar. Features Compact size. Universal industrial power supply (12 to 80 VDC & 12 to 265 VAC). Low power consumption. No calibration required. Customized process connections. like Threaded/Flanged/Hygienic etc starting form 1/2".

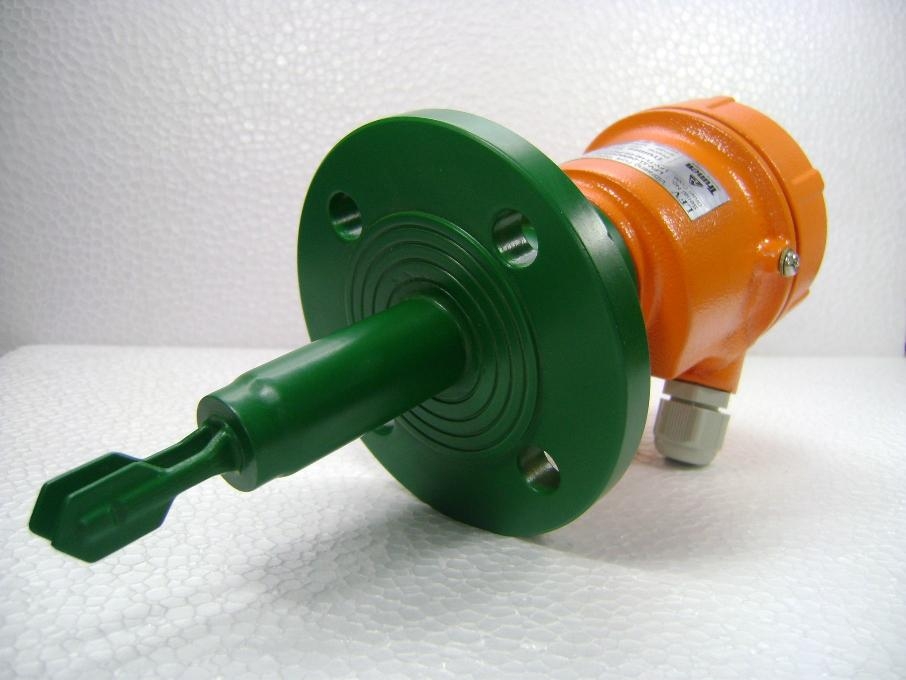

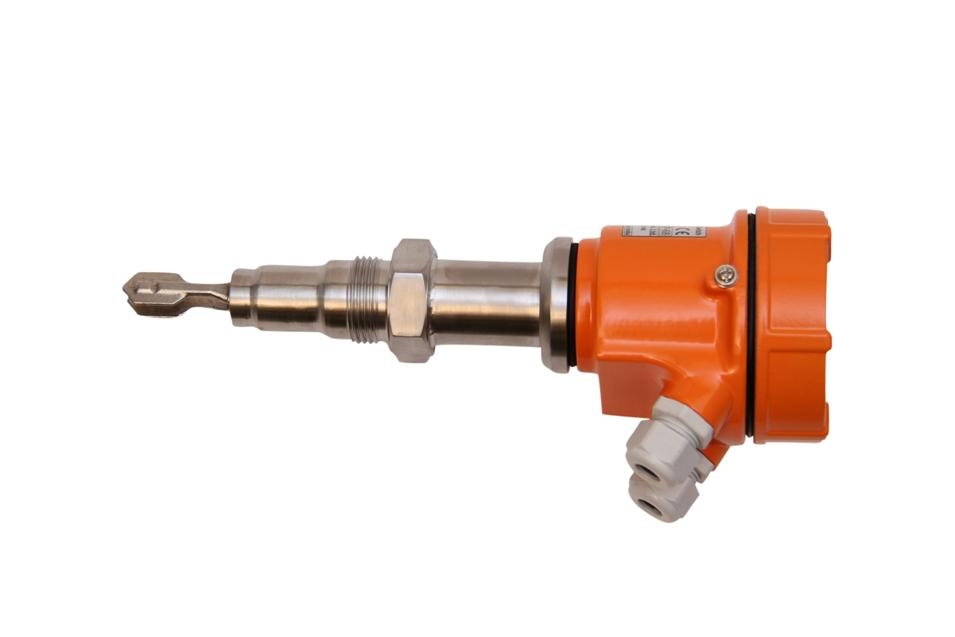

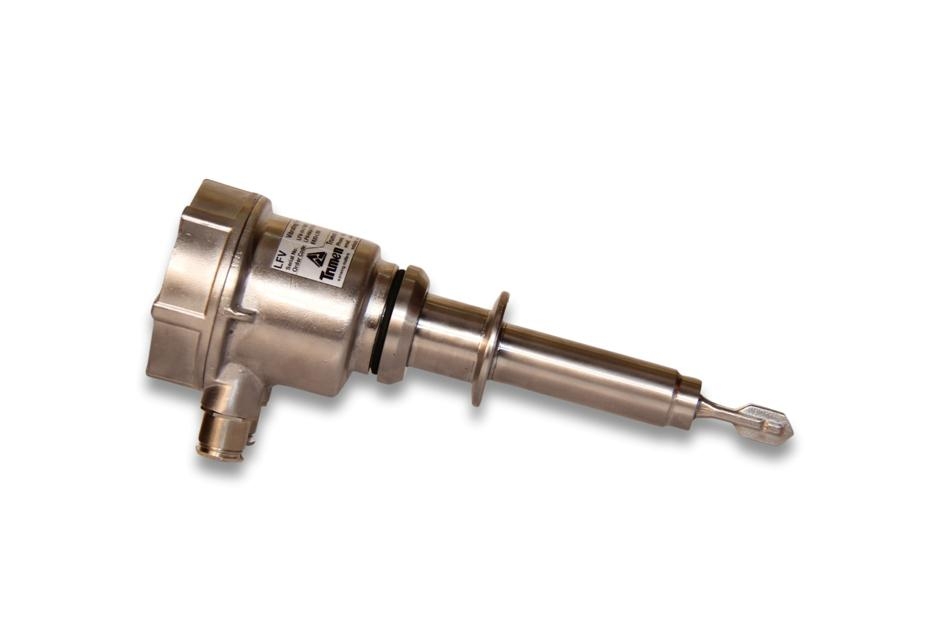

Product Image

Img 1

Img 2

Img 3

Img 4
