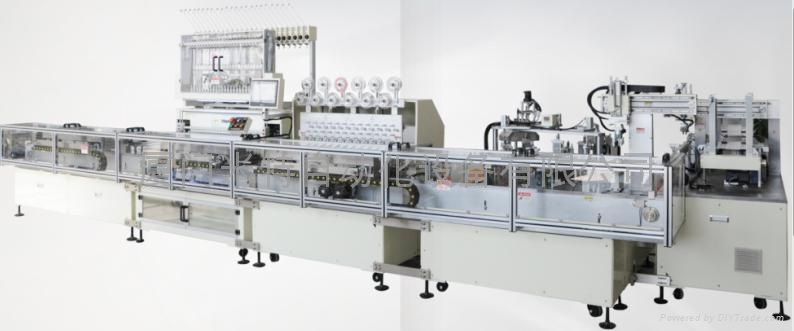

Machine Features：

1. It is applicable for  small size bobbins  such as relay coil, transformer coil ,stepping motor coil, ignition coil, etc. .

1. Multiple processes can be completed on the line including  Automatic vibration feeding, winding, taping, Dip soldering, testing, terminal reforming， palletizing and so on.

3.      4 spindles are synchronously controlled by YASKAWA FCS (Fieldbus Control System) and kinematics accuracy can be controlled within 0.01mm. The state-of –the-art controller of MECHATROLINK-II is employed to equip the winding machine.

1. Liquid level in the solder bath can be tested by the sensor in real time. If the solder surface is lower than the set height, tin will be automatically added.
2. Soldering time   can be adjusted between 0 and 5 second and the precision is 0.1 second.
3. A small solder bath which can more upwards and downwards may be added in the large solder batch.



   Model #	MTL-1636	MTL-2436
   Control System	YASKAWA  MECHATROLINK-II FCS (Fieldbus Control System)
   Spindle Number	16	24
   Spindle Pitch	36mm
   Spindle speed	MAX.20,000RPM
   Moving precision	±0.01mm
   Wire range	0.02-0.5mm
   Max. coiling diameter	Ф28mm
   Max. coiling Width	40mm
   Traverse moving range	X：80 mm，Y：60mm，Z：60mm
   Revolution angle	± 1°
   End processing number	Not limited
   End processing speed	Max. 150/minute
   End process angle	Vertical, Horizontal, 45 °as requested
   Station number of soldering machine	8
   Max. temperature of the soldering pot	520℃
   Machine Size	3800(L)*2500(W)*1800(H)mm	4800(L)*2500(W)*1800(H)mm
   Machine weight	2400kg
   Power voltage	AC 380V  50HZ
   Power consumption	7KVA
   Air pressure	0.45-0.65Mpa
