| Model: | ZYD-I |
|---|---|
| Brand: | ZN |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Filters |
| Label: | Oil Filtration , Oil Recycling , Oil Purification |
| Price: |
US $22000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:12 Aug, 2016 |

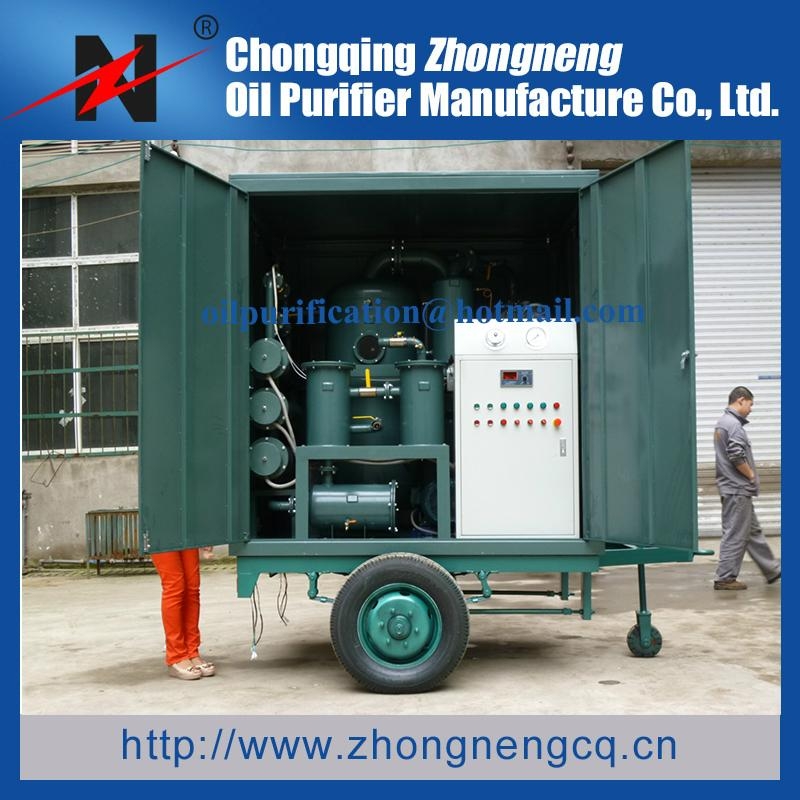

High Vacuum Dirty Insulating Oil Filtration System
What this Machine do ?
1. Be capable of increasing and maintaining dielectric strength of transformer oil.
2. To remove water, gas and impurities in the transformer oil.
3. Prolong the transformer's lifetime and performance as well as save memoey.
Which field does this machine apply to?
It is mainly used for purifying the transformer oil in all kinds of large power equipments, which are above 110KV, especially for those over 500 meters height area.
Competitive Advantages
1. High Vacuum: Ultimate vacuum <5pa, working vaccum < 35Pa
2. High Absorption Speed: Absorption speed power>333L/s
3. Duplex 3D stereo-evaporation, eliminating the liquid water quickly.
4. Distinctive remove impurities system filtering through double Fh trapezoidal network and absorption by high polymer without
mechanical power.
5. Especially applied to vacuum oiling and drying for power transmission equipments that are over 110KV.
6. Can be operated both on-load and off-load.
Technical Data
|
Parameters |
Unit |
ZYD-30 |
ZYD-50 |
ZYD-100 |
ZYD-150 |
ZYD-200 |
ZYD-250 |
ZYD-300 |
|
|
Flow |
L/H |
1800 |
3000 |
6000 |
9000 |
12000 |
15000 |
18000 |
|
|
Working vacuum |
MPa |
-0.08 ~ -0.099 |
|||||||
|
Working Pressure |
MPa |
≤0.2 |
|||||||
|
Temperature Range |
℃ |
20 ~ 80 |
|||||||
|
Power |
|
Three Phase 50Hz380V (according customer requirement) |
|||||||
|
Working Noise |
dB(A) |
75 |
75 |
75 |
80 |
80 |
80 |
80 |
|
|
Heating Power |
KW |
27 |
30 |
45 |
60 |
75 |
90 |
120 |
|
|
Total Power |
KW |
30 |
37.5 |
52.5 |
71.4 |
86.5 |
102.5 |
135 |
|
|
Inlet/Outlet |
mm |
φ25 |
φ32 |
φ42 |
φ50 |
φ50 |
φ60 |
φ60 |
|
|
Weight |
Kg |
450 |
700 |
1050 |
1400 |
1800 |
2000 |
2200 |
|
|
Overall Dimension |
Length |
mm |
1250 |
1400 |
1640 |
1800 |
2000 |
2050 |
2500 |
|
Width |
mm |
900 |
1050 |
1200 |
1350 |
1450 |
1500 |
1800 |
|
|
Height |
mm |
1700 |
1990 |
2000 |
2000 |
2100 |
2100 |
2400 |
|
Oil Data after Treatment
|
Moisture (water content) |
≤ 3 PPM |
|
Gas Content |
≤0.1% |
|
Impurities Degree (Filtration precision) |
≤1u (without free carbon) |
|
Breakdown Voltage (Dielectric) |
≥80 KV |
|
PH value |
≥5.5 |
|
Acid Value |
≤0.03 mg koH/g |
|
Dielectric Loss Factors |
tgδ (90℃) % ≤0.001 |
|
Cleanliness |
≤NAS 1638 Grade 6 |
Our Sevice
1. Your inquiry will be replied in 24 hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. Secure good communication, on time delivery, reliable warranty etc.
4. OEM is available for all Products.
5. Provide overseas tranining and product deb ing
