| Model: | PS2 |
|---|---|
| Brand: | VASK |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Other Electronic Components |
| Label: | connector , wire connector , electronic component |
| Price: |
¥0.7
/ pc
|
| Min. Order: | 1000 pc |
| Live Chat: | Last Online:11 Dec, 2017 |

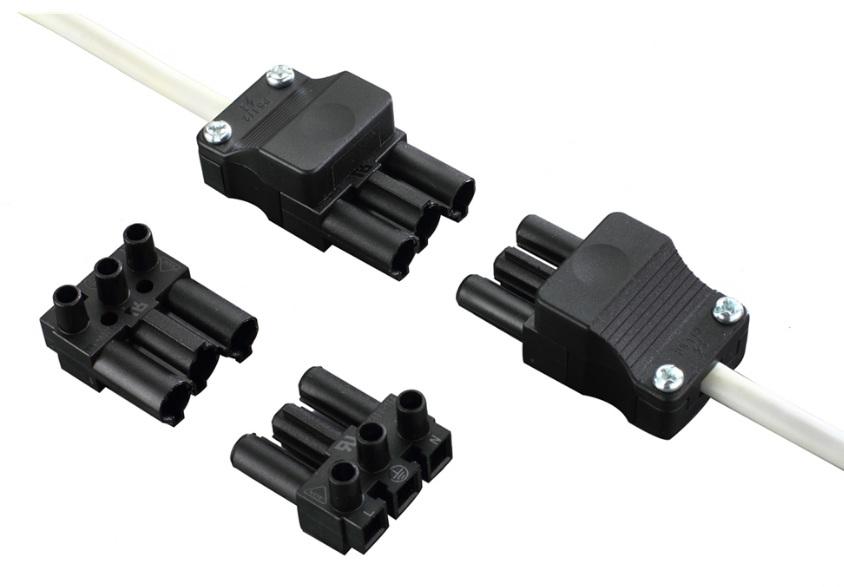

With protection housing
- Compliant with EN 61984 / EN 61535
- Compliant with UL 1977
- Touch-proof/ Safe when disconnected under loading
- Protection class :
When fully assembled with protection covers - IP30
- Color : Black/White ; other colours upon request
Specification
Housing : Polyamide 66 (94-V2 grade)
** All passed 850oC glow-wire test
Metal Parts : Tin-Plate Brass/Stainless Steel Spring
Ambient Temperature : T90oC (upper limit 135oC)
Voltage/Ampere Rating : EN-standard 250V/16A
UL-standard 600V / 16A
Wiring Capacity : -
-- With Protection Cover : EN-standard 0.75 - 1.5mm2
*** for 3-cord Round Cable , H03VV or H05VV recommended
-- With Protection Cover : UL-standard AWG 20-14 x 3C
| Payment Terms: | TT in advance |
|---|---|
