| Model: | FV1200 |
|---|---|
| Brand: | RAINBOW |
| Origin: | Made In China |
| Category: | Industrial Supplies / Food, Beverage & Cereal Machine |
| Label: | 1200L FERMENTER , BEER FERMENTER , FERMENTING TANK |
| Price: |
US $3500
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:08 Nov, 2022 |

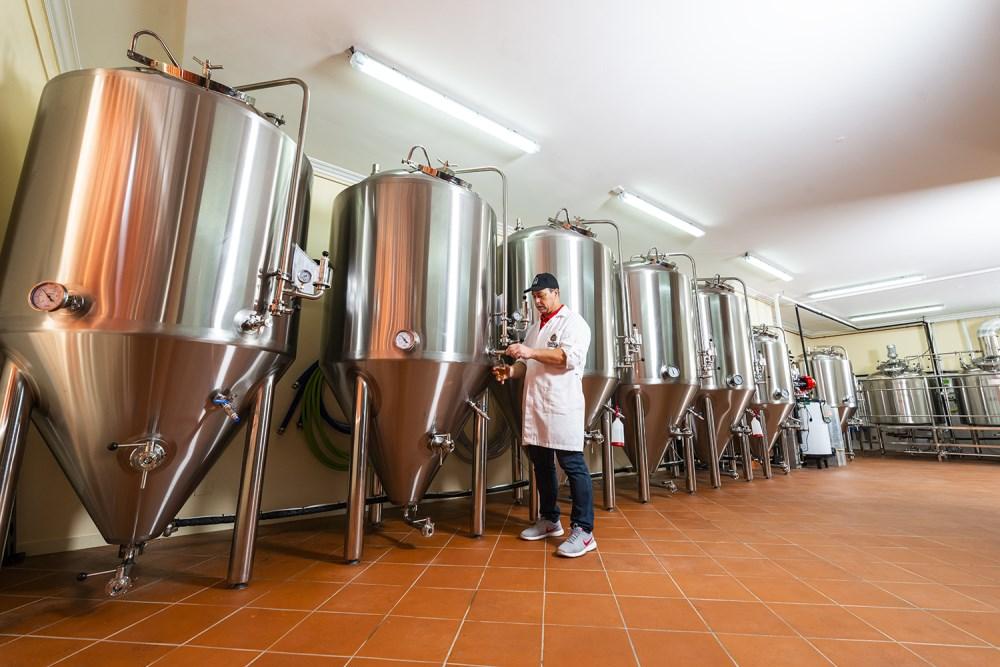

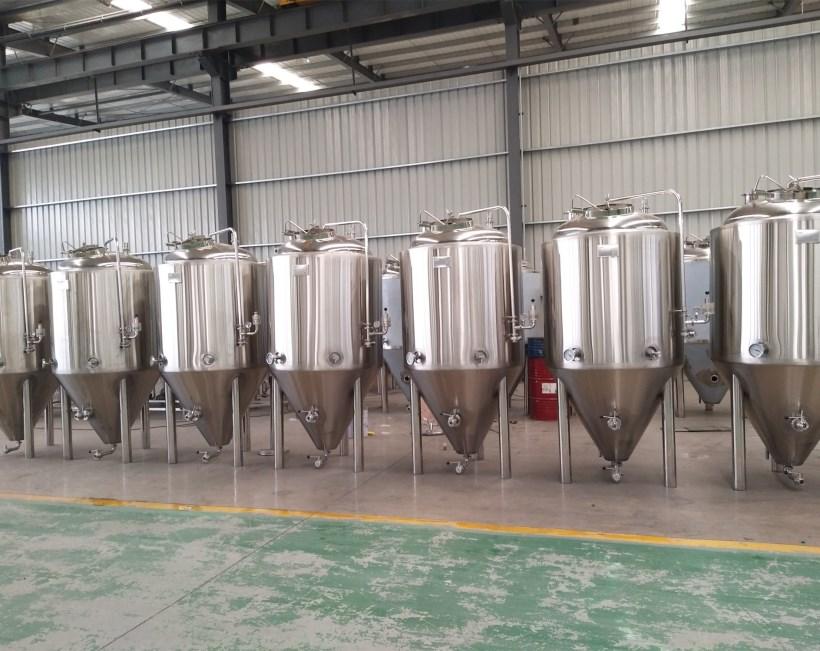

1200L Brewing Fermenter / Stainless Steel Beer Fermentation Tank
|
NO |
Equipment |
Specification |
Quantity |
|
Fermentation system |
Fermentation tank |
1200 L |
? |
|
-Dimension: according to the ceiling height or our standard one -Material: Inside wall, SUS 304, 3mm; Outside wall, SUS 304, 2mm Insulation, PU, 100mm -Dome top with dry hop port -Top mounted manway -Cone bottom, 60 degree -Cooling jackets on both cylinder and cone -Inside 360 rotating CIP ball -Thermowell, 8mm -Temperature sensor, Model: PT100 -Bung apparatus -Safety&vacuum valve -Inside polishing 0.4-0.6 micron -Working pressure: 0.15-0.2Mpa -Testing pressure: 0.3Mpa -Wort piping and butterfly valves, ø32mm -Drainage piping and butterfly valve, ø38mm -3 legs with adjustable bolts |
|||
CHARACTERISTICS
1-For all kinds of beer's fermentation(ale and lager)
2-Various capacities: 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L..
3-Thickness of stainless board and PU insulation material can be customized, our standard material is inner wall 3mm sus304, outer wall 2mm sus304, insulation 100mm PU
24-Besides fermenting equipment, we can also provide mash system, cooling system, cip system, filter system, control system, bottling filling and capping machine, keg filling and washing machine, steam boiler...
CONFIGURATION OF OUR COMPLETE 1200L BREWERY for reference:
|
Items |
Equipment |
Specification |
Quantity |
|
Malt miller |
Malt miller |
300kg/hour |
1 |
|
Brewhouse system |
Mash tun&lautering tun |
1200L |
1 |
|
Brew kettle&whirlpool |
1200L |
1 |
|
|
Hot liquor tank |
1200L |
1 |
|
|
Plate heat exchanger |
12m2 |
1 |
|
|
Working platform |
|
1 |
|
|
Pump |
3t/h |
2 |
|
|
Fermentation system |
Fermenter |
1200L |
6 |
|
Aeration&yeast adding tank |
50L |
1 |
|
|
Cooling system |
Glycol water tank |
2000L |
1 |
|
Chiller |
5hp |
2 |
|
|
Pump |
3t/h |
1 |
|
|
CIP washing system |
Alkali tank |
100L |
1 |
|
Sterilization tank |
100L |
1 |
|
|
Pump |
3t/h |
1 |
|
|
Control system |
Simens PLC /PID control box |
|
1 |
|
Spare parts |
All the necessary spare parts |
||
| Payment Terms: | T/T, L/C, Western Union |
|---|---|
