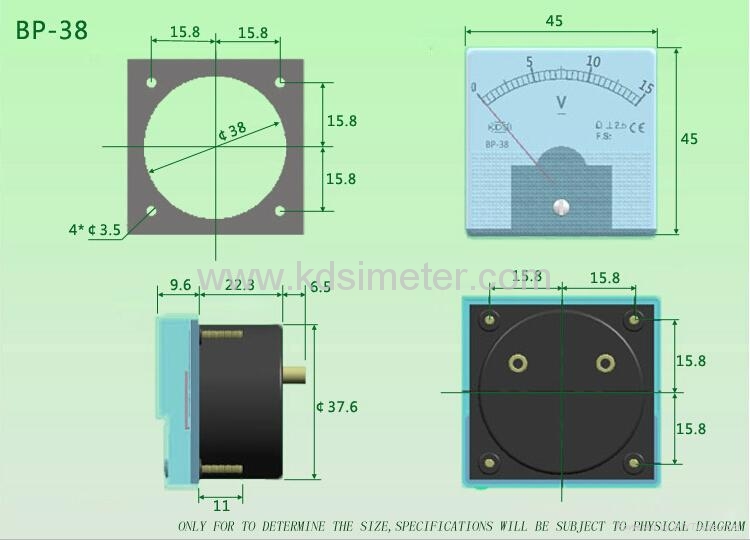

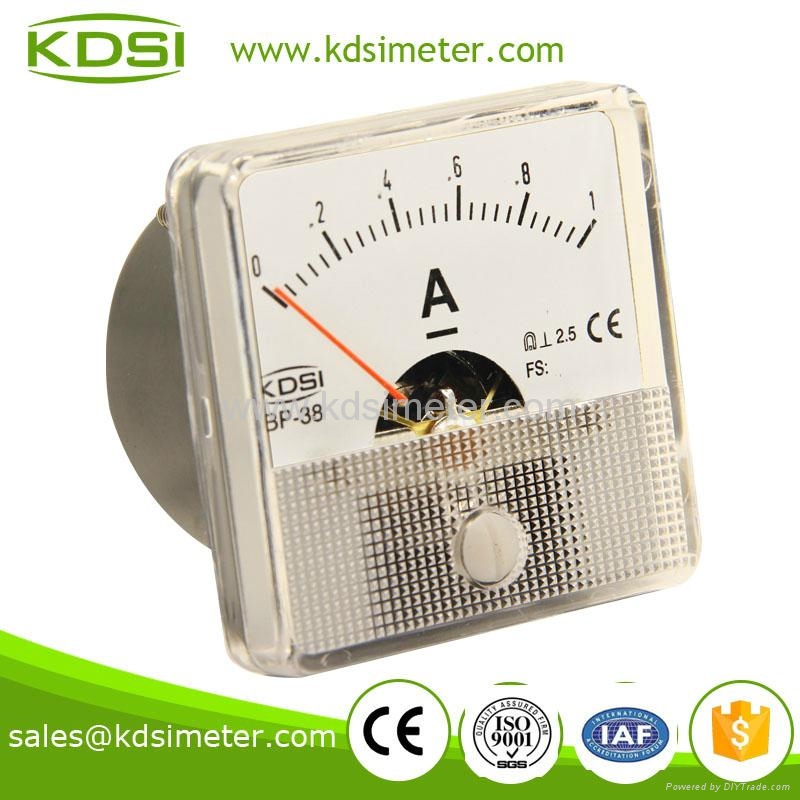

Classical  Hot Selling Good Quality  BP-38 DC1A dc ampere meter

Product Description

Composition:

PC Front and Bakelite case, Four stud mounting,

Scale Plate:

The normal scale plate is made of alloy-aluminium material white printed with black scales,Values, units, technique symbols, etc.

Scale plate with special requirements are available upon request.

Such as color, scale with lighting functions and PVC noctilucence are available upon request.

Color:

Black case, white scale plate.

Pointer:

Normaly, the pointer is made of alloy-aluminium, it is black, and red, white are available Upon request.

Anti-static:

All meters are subject to anti-static treatment to minimize the static-effect to the accuracy of  the meters.

Damping and Overshoot:

The overshoot is less than 15% when the pointer is at the 2/3 of the scale.

Damping and overshoot can be customized according to user’s requirements.

Accuracy:

Class1.5, 2.5;

Service condition:

-20~+50 degree;

Operating position:

Generally, meter is installed in vertical position. Other installation position can be customized (please specify the desired angle).The accuracy class is just valid for the Corresponding installation mode.

Insulation Test:

The test Voltage for BE&BP series is 2KV RMS for 1 minute with the frequency 50Hz.

Safety Precautions:

Meters with damaged bezels or glass faceplates must be disconnected from the mains. Scale plate, front frames and windows may only be replaced under voltage-free conditions.

The meter should be kept clean, if the meter is used in a manner not specified by the manufacturer, the protective function may be impaired.

The advantages of Our products:

Interchangeable Dial.

Changing the scale plate without opening the meter.Under the same secondary current, the scale plate of AC ammeter can be Changed, no loss of accuracy.
