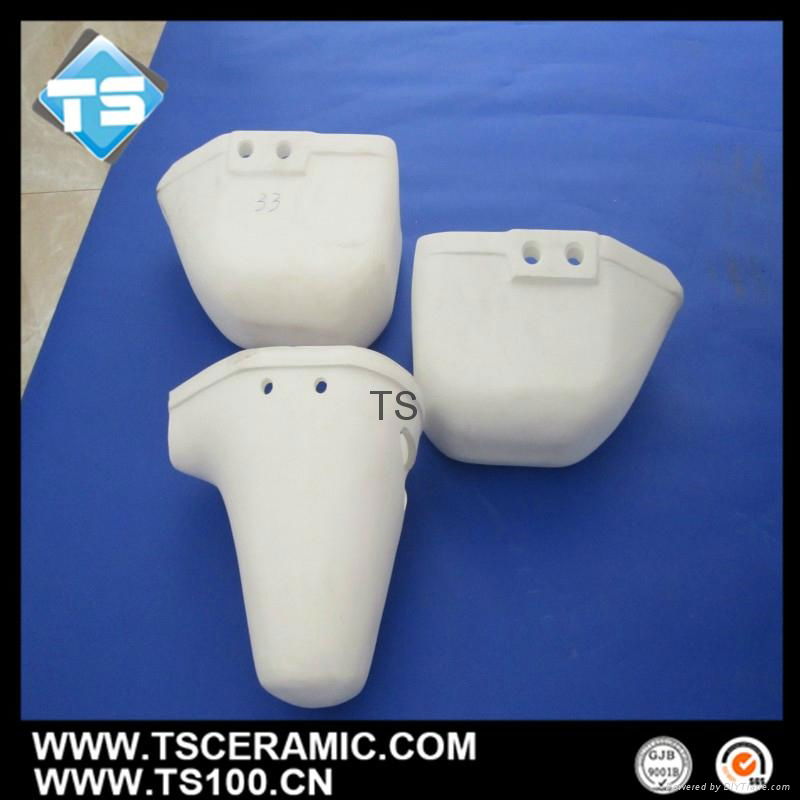

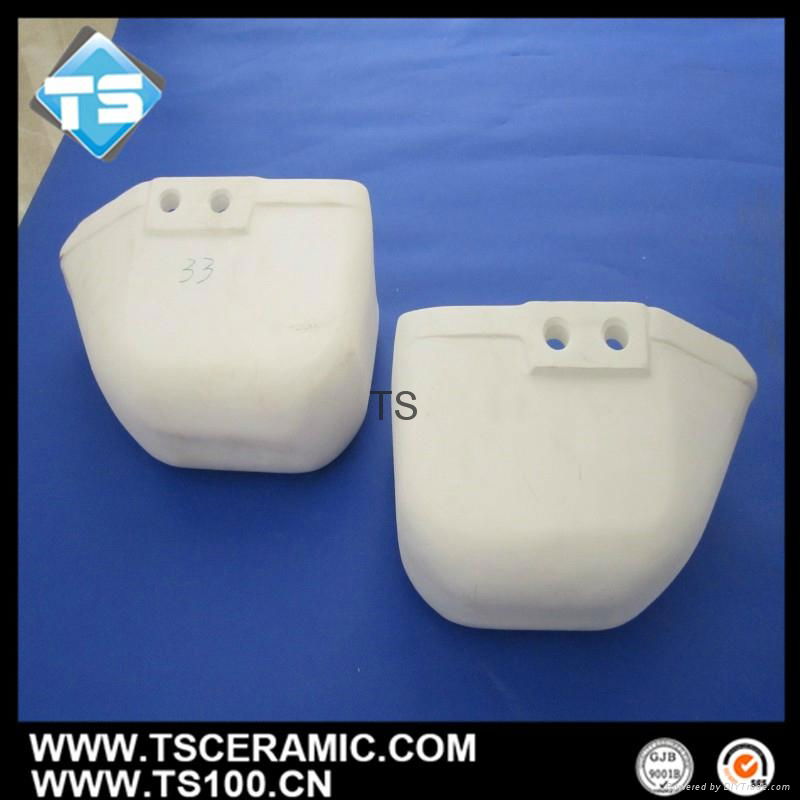

Aluminium Titanate Auto Pouring Ladle
Product Description:
Aluminium titanate casting ladle is used to pour molten metal into moulds to produce casting, it has higher melting point, lower thermal expansion coefficient, excellent heat-shock resistance and wear resistance, long service life. Besides, aluminium titanate casting ladle don't infiltrate with the metal melt(especially the non-ferrous metals) and glass melt.
Physical and Chemical Index:
|
Items |
Datas |
|
Bulk Density |
3.3-3.5g/cm³ |
|
Flexural Strength |
30-50Mpa |
|
Porosity |
<8% |
|
Thermal-expansion coefficient |
0.5-1.5*10-6℃ |
|
Heat Conductivity (800℃) |
0.86W/m.K |
Feature:
1,Excellent thermal shock resistance
2,No infiltration with the non-ferrous metal
3,Excellent wear resistance
4,Low thermal-expansion coefficient
5,Long service life
Popular Dimension:
|
Diameter |
Thickness |
Length |
|
Φ60、Φ80、Φ100 |
18mm |
<1,150mm |
We can manufacture the tubes based on your drawings.
