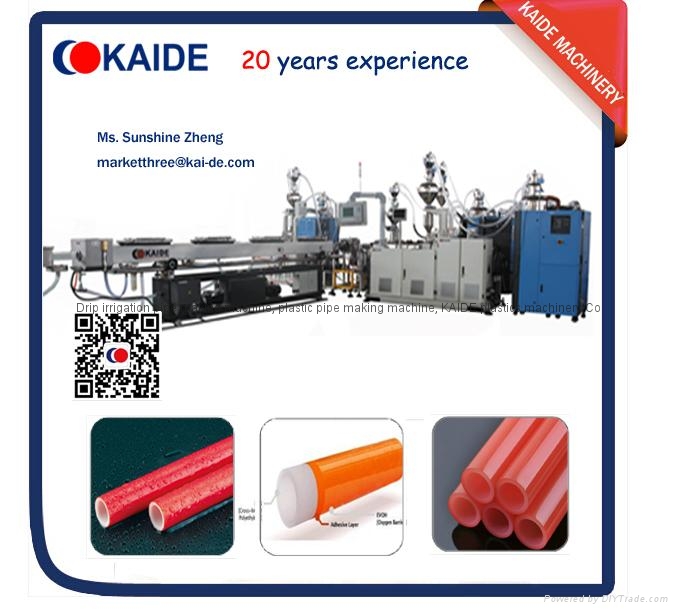

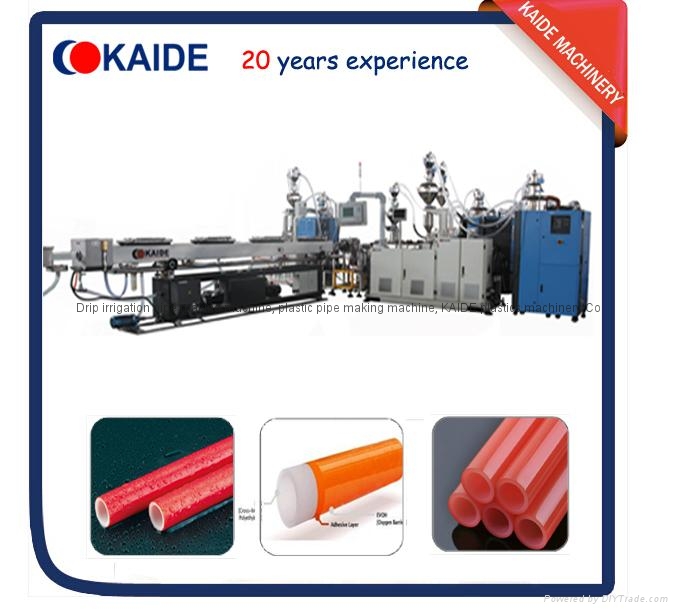

EVOH Oxygen Barrier Composite Pipe Production Line/EVOH Composite Pipe Extrusion Line
KAIDE factory has focused on plastic pipe extrusion technology for more than 20 years, especially for high speed pipe line and multi-layer composite pipe line.
Pipe Type and Application:
1) three layer or five layer structure; PEXb/EVOH, PERT/EVOH, PB/EVOH, PA/EVOH, PPR/EVOH, PEXa/EVOH etc;
2) this EVOH composite pipe is mainly used on floor heating system because of its high oxygen barrier advantage
Technical Date of Pipe Production Line:
|
Line Model |
Screw Diameter |
L/D |
Production Scope |
Production Speed |
|
SJ-65 |
Ф65/30mm |
33:1 |
Ф16-63mm |
10m/min |
|
SJ-80 |
Ф80/45mm |
33:1 |
ф75-160mm |
5m/min |
Features of Pipe Production Line:
1) Advanced co-extrusion technology with several extruders and co-extrusion die head mold, which makes the composite pipe bond firmly with precise size.
2) The screw and barrel are specially designed according to the property of EVOH resin. It's suitable for stable extrusion of high melt pressure of oxygen barrier resin.
3) Precise control system of pipe weight per meter to realize the constancy of pipe weight and line running according to set paramters. The application of this system can shorten the start-up time and improve the pruduced pipe quality , and save raw material.
4) Upgrade the machine can produce single layer pipe, and also three-layer or five layer EVOH oxygen barrier composite pipe with one line.
5) SIEMENS PLC control system with sync control sytem
