The Stadium Rope Net

Model:-
Brand:-
Origin:Made In China
Category:Metallurgy , Mining & Energy / Metallurgy & Mining / Wire Mesh
Label:Stadium Rope Net , Stadium Rope Net , Stadium Rope Net
Price: ¥88 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

DongGuan Candurs Cable Mesh Systems Co.,Ltd

Biz MemberGuang Dong - China
Live Chat:
Last Online:16 May, 2023

View all products. (262)

Product Description

China The Stadium Rope Net manufacturer,factory,Candurs's Wovenrope™ stainless steel hand woven rope  mesh diamond opening when you stretched at 90 degree angle,unique design, widely use as security fencing, security screens, Animal cage, safe net etc.



  • Feature of The Stadium Rope Net:
  • Unique design idea
  • Flexible,elegant,discreet,filigreed,multifunctional
  • Light
  • Corrosion resistant,allows heavy airflow
  • Total pro-environment,recyclable,no toxic,non-flammable
  • Once stainless steel cable mesh was installed,maintenance free,don't ask any special cleaning or coating



  • Long using life

Available  304 and 316 stainless steel.
Ropes diameter: from 1mm - 4mm
Structure: 7x7,7x19
Mesh size: Opening width ( OW ) from 20mm - 120mm,opening height ( OH ) from 20mm - 120mm
Variety of loops solution
Customized cable mesh width and length
Easily install,stainless steel rope mesh can be fixed on stainless steel tube (frame) or tensioned with stainless fitting.
Standard Specification:

OW X OH Wire Diameter
1.2 mm 1.6mm 2.0 mm  2.4 mm 3.2 mm
25 mm x 25 mm WD1225 WD1625
30 mm x 30 mm WD1230 WD1630
38 mm x 38 mm WD1238 WD1638 WD2038
51 mm x 51 mm WD1251 WD1651 WD2051 WD2451 WD3251
60 mm x 60 mm WD1260 WD1660 WD2060 WD2460 WD3260
76 mm x 76 mm WD1276 WD1676 WD2076 WD2476 WD3276
90 mm x 90 mm WD1290 WD1690 WD2090 WD2490 WD3290
102 mm x 102 mm WD12102 WD16102 WD20102 WD24102 WD32102
120 mm x 120 mm WD12120 WD16120 WD20120 WD24120 WD32120



Packing︰ Roll,Piece




Product Image

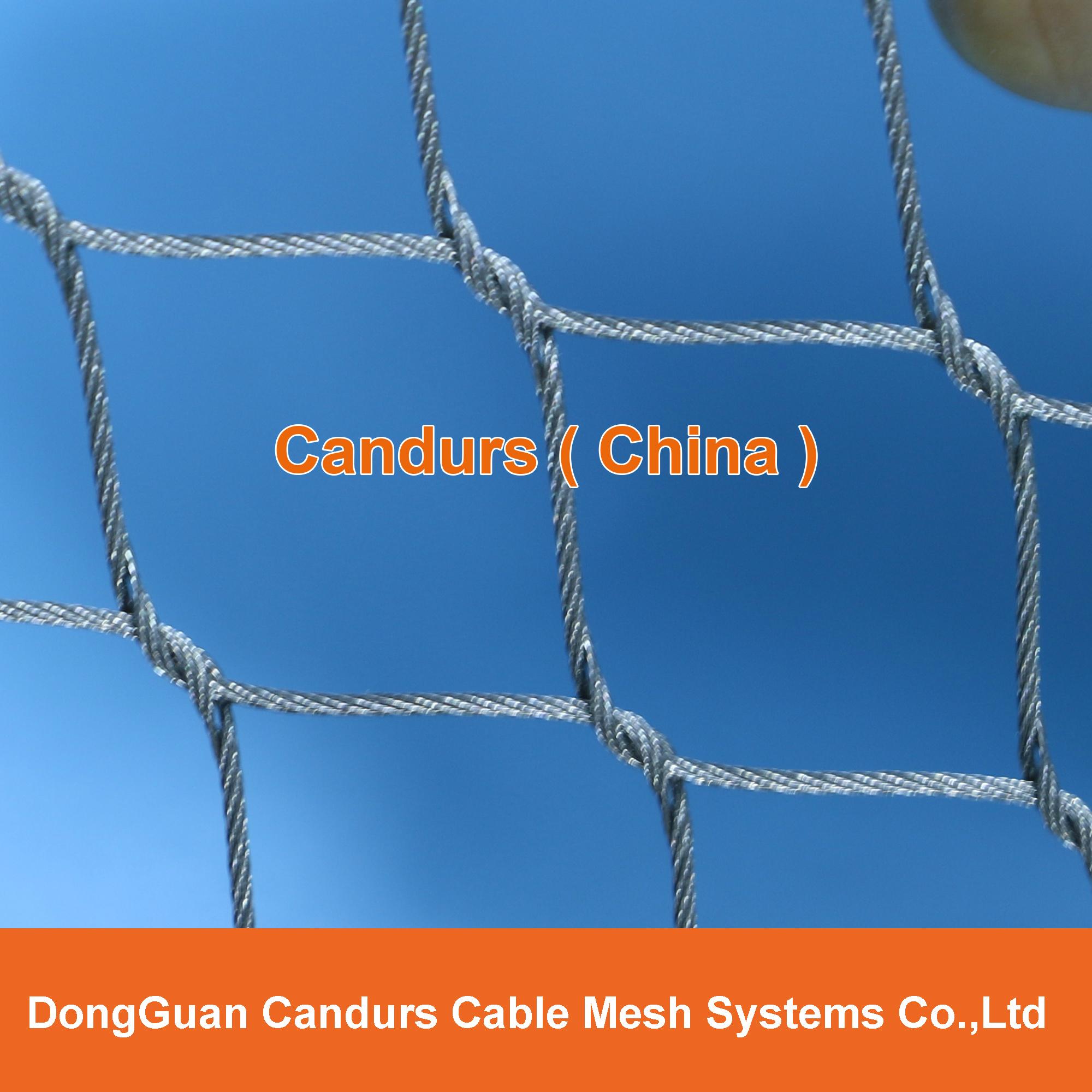

The Stadium Rope Net 1
Img 1

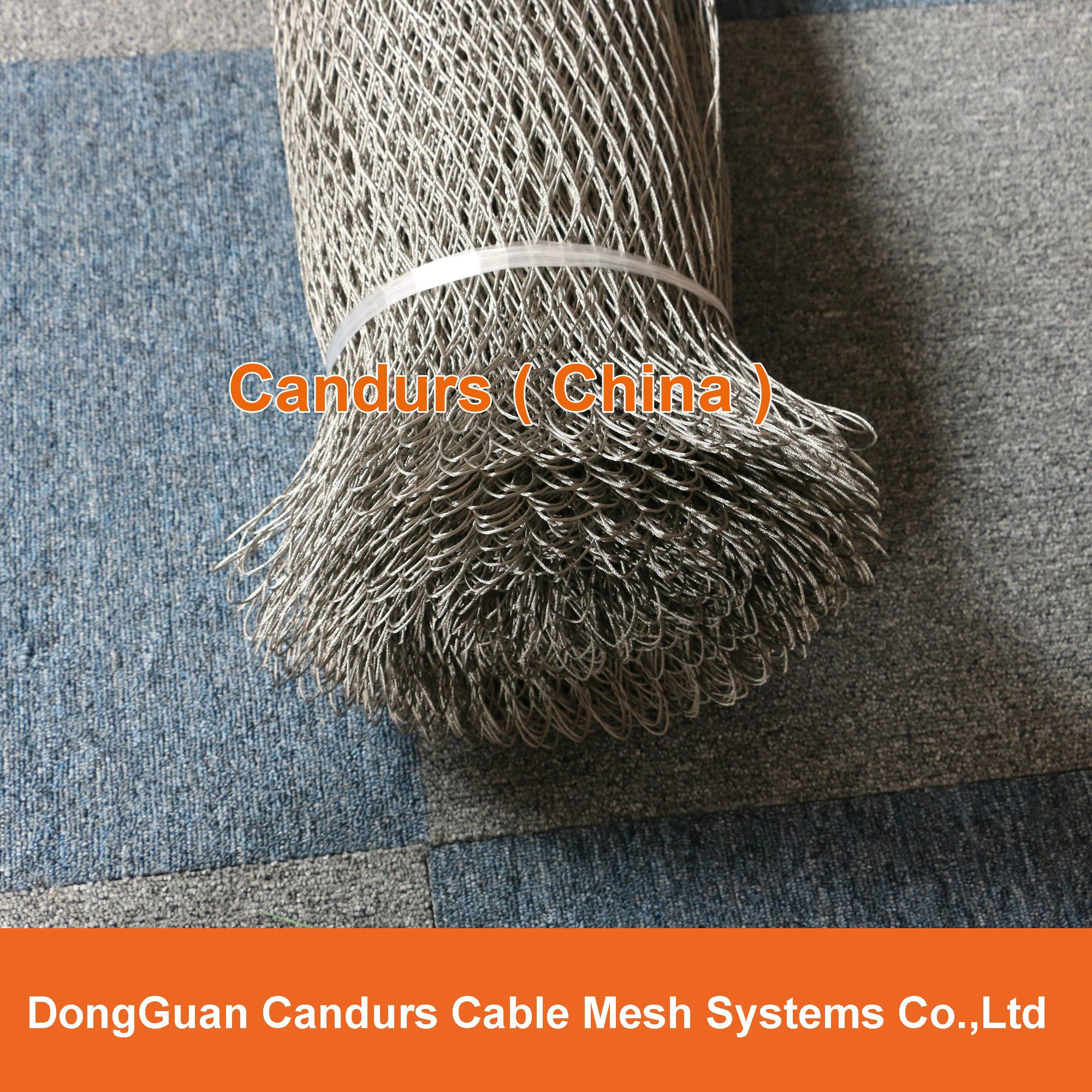

The Stadium Rope Net 2
Img 2

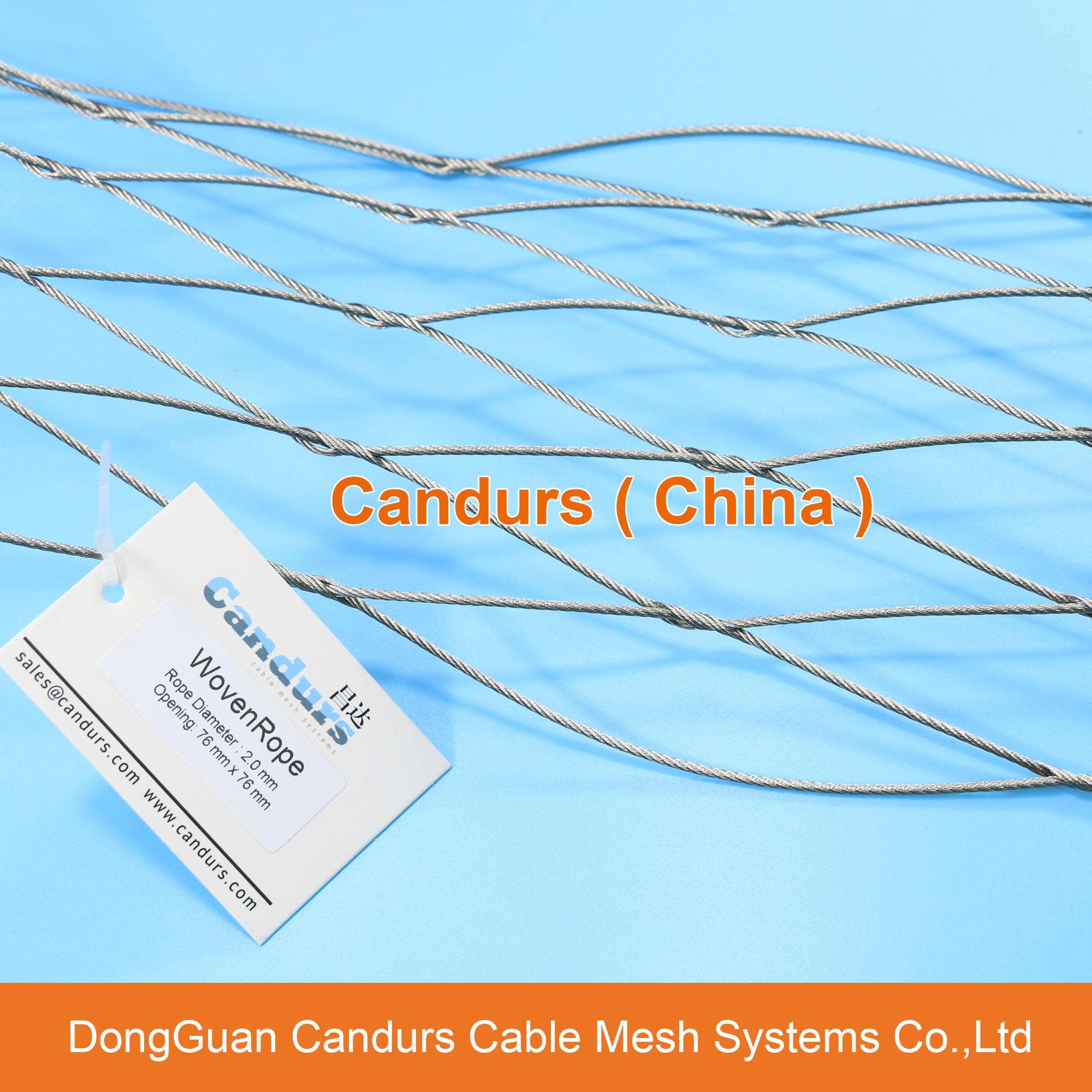

The Stadium Rope Net 3
