| Model: | HBS-3000X6000X2 |
|---|---|
| Brand: | HONEYBEE |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | cnc cutting machine , metal cutting machin , plasma cutting machi |
| Price: |
US $1
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:19 Aug, 2017 |
|
Name |

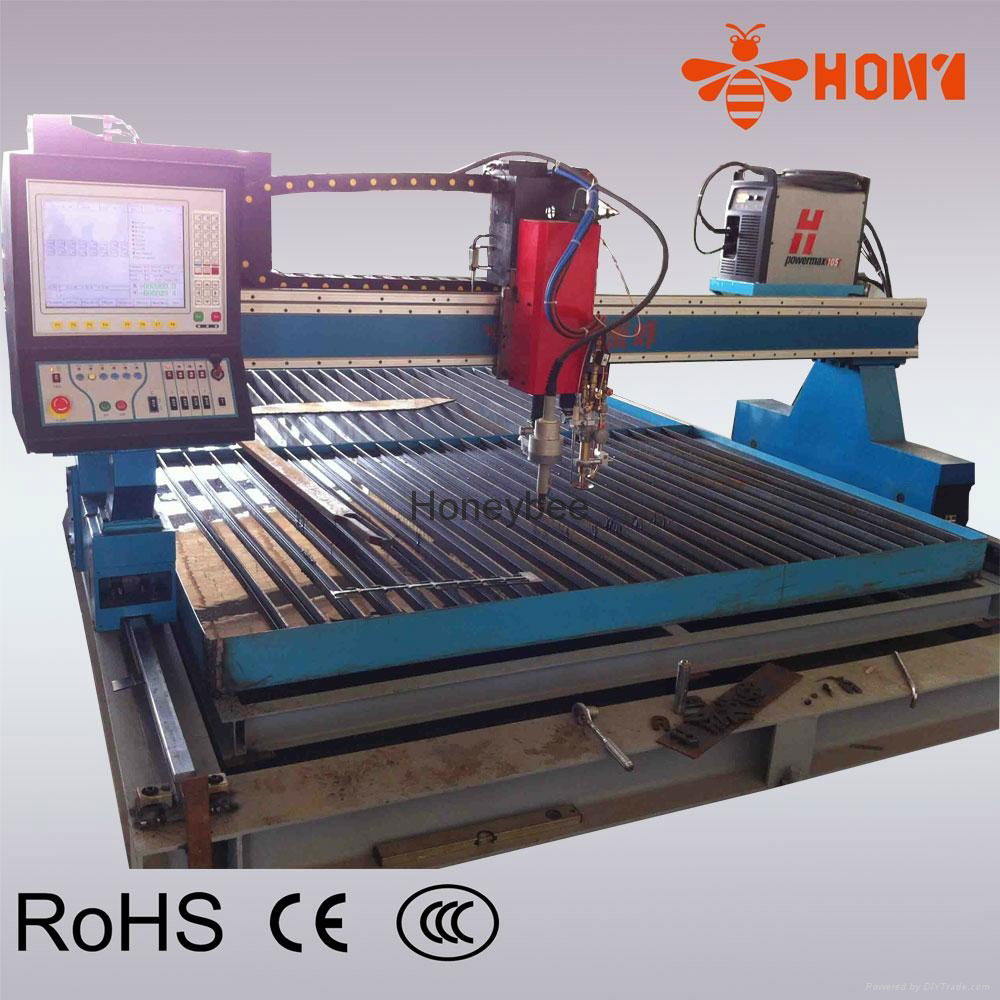

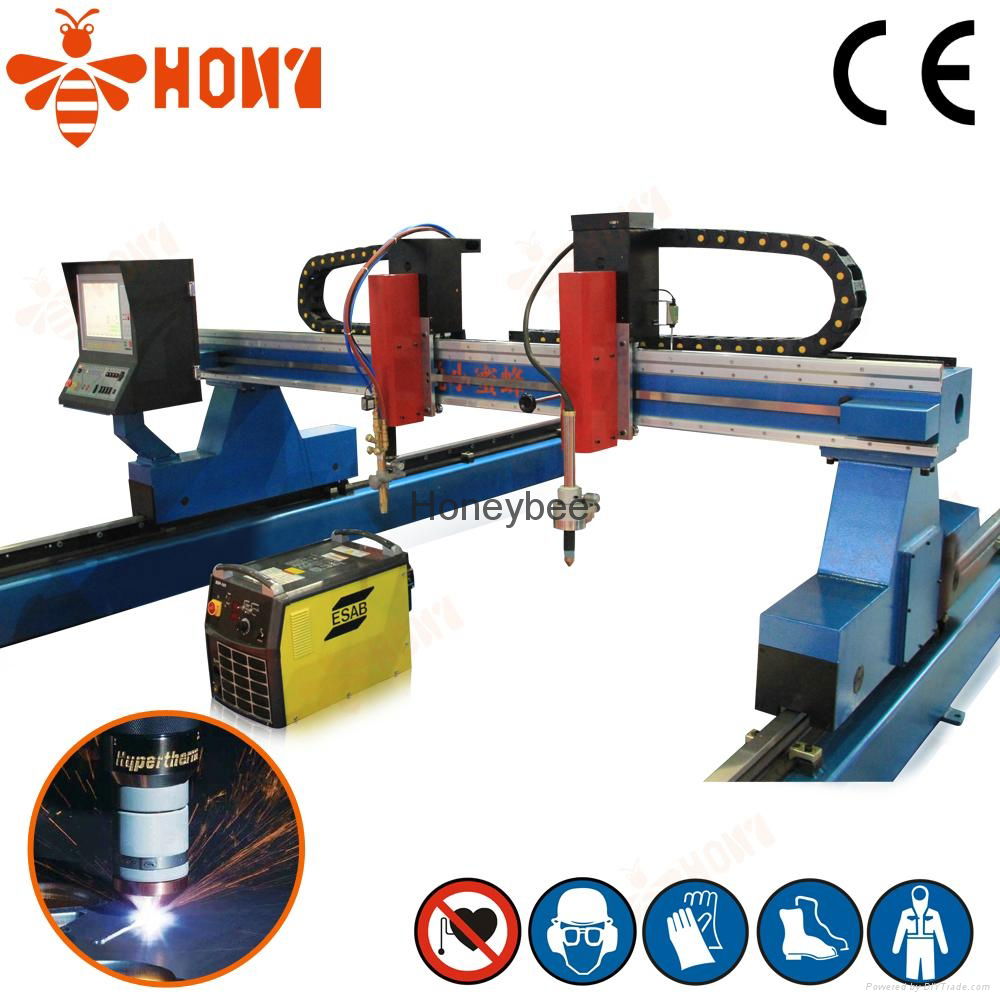

Honeybee Eco-series Gantry CNC Cutting Machine |
|
Model |
HBS-3000×6000×1+1A |
|
Structure |
Gantry, dual drive |
|
Track span & Guide rail |
3000×6000mm（lenth can be extend every 2 meters) |
|
Effective cutting size |
2400×4500mm |
|
Transmission |
Longitudinal and Transversal main trolleys: rack & pinion Transversal slave trolley: steel belt |
|
Tube Transmission |
Transveral: Industrial plastric drag chain; Longitudinal: Hanging pulleys or earthing drag chain |
|
Cutting thickness |
Oxy-fuel 6-150 mm; Plasma: depends on plasma capacity; |
|
Torch No. |
2 |
|
Torch height control |
Motorized |
|
Servo system |
AC servo systems and reducer(Janpan servo motor and Germany reducer) |
|
CNC system |
HBCNC |
|
Speed regulation range |
0--12 m/min |
|
Cutting fuel |
Oxy-fuel: Oxygen +Acetylene/Propane Plasma: Depends on plasma power source require |
|
File transmission |
USB |
|
Accuracy |
Complete machine: accords with JB/T5102-1999 standard, Cutting dimension accuracy and quality: accords with JB/T10045.3-1999 standard, the national standard A and I level.
|
