| Model: | QC 6910 |
|---|---|
| Brand: | HACHIEVE |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Cleaning Machine |
| Label: | shot blasting machin , Stainless shot blast , shot blasting machin |
| Price: |
US $50000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:25 Jun, 2015 |
Stainless steel shot blasting machine
Company Information:
QINGDAO HACHIEVE Machinery Equipment Co., Ltd. has been doing business more than 20 years. We have hundreds of shot blasting machines and component retrofits in operation in China and abroad serving every industry that utilizes blast cleaning technology. Manufactured to meet your needs.
Systems include:
| • Structural Steel
• Overhead Conveyor • Roller Conveyor • Work Car • Steel Drum & Lid |
• Plate Steel
|
• Foundry
• Table Blast • Tumble Blast • Spinner Hanger |
Put our experience and expertise in the shot blast industry to work for you!
Steel plate shot blasting machine is suitable for Shot Blasting of Strip steel and stainless steel. Shot blasting and painting machine has shown operating benefits that includes increase production without adding man power, elimination of acid pickling, disposal of acid waste. Shot Blasting is faster, cheaper and flexible. Shot Blasted surface if painted properly last much longer. Major application Ship Yard, Agriculture implements, Earth Moving Equipments, wind mills etc.
Product Description:
Sand blaster, Shot blasting, or abrasive blasting, is an essential part of most steel mill, metal finishing and foundry operations and has been an established finishing technique since the late 18’s. It is a mechanical method of propelling abrasive using a centrifugal wheel to remove surface contamination, scale and other impurities from the surface of steel applications, like structural steel including massive bridge girders and heavy construction equipment, large weldments, plate steel, bar and wire steel and foundry castings. In general, blasting prior to finishing serves three primary purposes: it cleans and descales surfaces, adds texture to enhance paint adhesion, and if done properly reduces maintenance costs by increasing coating life.
1. Strip steel and stainless steel shot blasting machine:
|
Type |
HC-4/600 |
HC-4/1600 |
HC-4/2100 |
|
Max Width (mm) |
600 |
600-1600 |
800-2100 |
|
Blast wheel Qty |
4 |
4 |
4 |
|
Each blast wheel Power (Kw) |
45 |
90 |
90 |
|
Abrasive flowing rate (Kg/min) |
600 |
1200 |
1200480 |
|
Total Power (Kw) |
230 |
480 |
|
|
Shot blasting speed (m/min) |
20 |
20 |
15 |
Note: the shot blasting chamber quantity can be extended, can according to the specific requirements of steel processing, to provide the corresponding parameters.
2. Other moedl steel plate shot blasting machine:
|
No |
Name |
Unit |
Type1 |
Type 2 |
Type 3 |
|
1 |
The width of the workpiece |
mm |
Under 2500 |
under 3500 |
Under 4500 (plate) |
|
2 |
Model |
QXY2000,QXY2200, QXY2500 |
QXY3000,QXY3200, QXY3500 |
QXY3500,QXY4000, QXY4500 |
|
|
3 |
Plate width (Max) |
mm |
The number after QXY |
The number after QXY |
The number after QXY |
|
4 |
Plate thickness |
3~60 |
3~60 |
3~100 |
|
|
5 |
The smallest section of profile |
mm*mm |
60*80 |
60*80 |
------ |
|
6 |
The largest section of profile |
mm*mm |
1000*300 |
1000*300 |
------ |
|
7 |
The shortest workpiece |
mm |
2400 |
2400 |
2400 |
|
8 |
Maximum workpiece |
mm |
12000 |
12000 |
12000 |
|
9 |
Conveyor speed |
m/s |
1~5(Note) |
0.5~4(Note) |
4~6(single) |
|
10 |
Derusting Quality Level |
ISO8501-1,1988 |
GB8923-88 |
Sa2.5 |
|
|
11 |
Surface roughness |
μm |
40~70 |
40~70 |
40~70 |
|
12 |
Paint Film thickness |
μm |
15~25 |
15~25 |
15~25 |
|
13 |
Paint type |
Quick-drying-type zinc-rich primer |
Quick-drying-type zinc-rich primer |
Quick-drying-type zinc-rich primer |
|
|
14 |
Installed Power |
kw |
According to the actual situation |
According to the actual situation |
According to the actual situation |
|
15 |
Compressed air consumption |
m3/min |
5~7 |
5~7 |
5~7 |
|
16 |
Compressed air pressure range |
MPa |
0.4~0.6 |
0.4~0.6 |
0.4~0.6 |
|
17 |
The first addition of the shot ball |
T |
8~10 |
8~10 |
12~16 |
3. Other roller through type shot blasting machine:
|
Parameter |
Q698 |
Q6912 |
Q6915 |
Q6920 |
Q6925 |
Q6930 |
Q6940 |
|
The effective cleaning width (mm) |
800 |
1200 |
1500 |
2000 |
2500 |
3000 |
4000 |
|
Dimesion of inlet opening (mm) |
1600*800 |
1200*400 |
1700*400 |
2200*400 |
2700*800 |
3200*800 |
4200*400 |
|
The length of cleaning workpiece(mm) |
1200-12000 |
1200-1600 |
1200-12000 |
1200-12000 |
3000-12000 |
2400-12000 |
4500-18000 |
|
The speed of conveyer (m/min) |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
|
The thickness of cleaning steel sheet (mm) |
3-60 |
3-60 |
1.5-60 |
3-60 |
3-60 |
3-110 |
4.5-100 |
|
Shot ball flow rate (kg/min) |
4*120 |
4*250 |
4*250 |
6*250 |
6*250 |
6*360 |
8*360 |
|
The shot ball first loading (kg) |
4000 |
4000 |
4000 |
4500 |
4500 |
8000 |
11000 |
|
Roll brush adjusting height (mm) |
200 |
200 |
350 |
450 |
600 |
850 |
900 |
|
Air capacity(m3/h) |
22000 |
17560 |
19000 |
19550 |
27758 |
28050 |
38000 |
|
Total power (kw) |
90 |
78.3 |
113.5 |
156.6 |
204.8 |
224.55 |
293.6 |
We can do all kind of sandblaster according customer's need.
1. The max. Length of the workpiece?
2. The max. Width of the workpiece?
3. The max. Height of the workpiece?
4. The productity you need to blasting the workpiece ( how many T or piece per day or per month?) ?
5. The power supply you need ( such as 380V, 3P, 50HZ)?
6. Better to send us your workpiece photo or drawing.

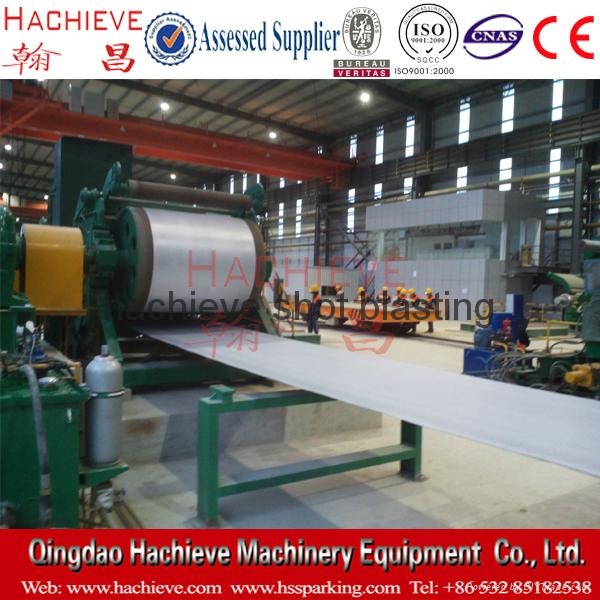

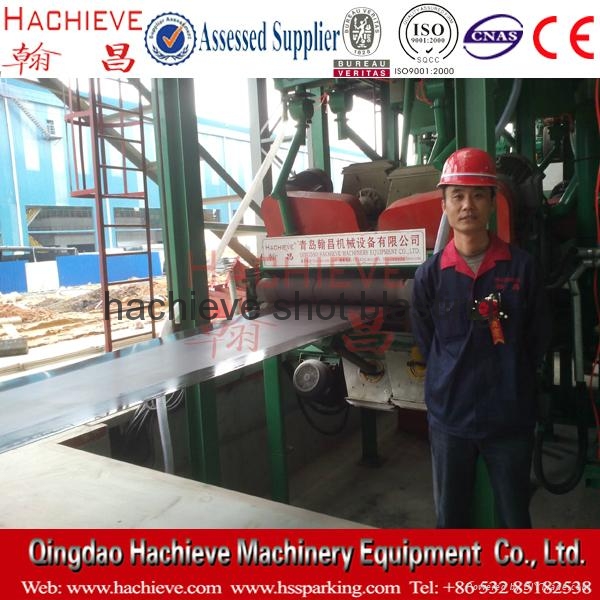

Equipment photo for reference:
Production Flow
Ali Certificate
Our Customer
Loading
Our Services
1 The warranty period is 12 months.
2 After-sales service.
1). Quality of products for one year to implement the "three guarantees." In the "Three Guarantees" period, that where a normal use of malfunction and damage (excluding wearing parts), the company is responsible for free repair or replacement.
2). In the warranty period, if quality problems arise, after receiving user notification within 24 hours: Without 24 hours by phone or fax to give a reply.
3). After warranty period, to provide quality services to users. We have enough easy-worn spare parts, ensure the quality and delivery time.
3 Guarantees
The company enforces “Brand” strategy; realize “Total Quality Control (TQC)” and ISO9001 International quality system certification.
1. The products are designed by experienced engineers; the design DRAWINGS are checked by experts, to guarantee the design quality;
2. The product will never be sub-contracted to the third-party;
3. As to the elements and parts of the products:
Such raw materials as steel plates and section steels are all purchased from brand factories;
Auxiliary elements, standard elements (such as rolling bearings, electric motors and reducers) are all purchased from brand companies, or designated by users.
The other elements (including plate weldment and machining elements, etc.), are all finished inside our company, to control the machining quality.
The electric elements adopts domestic quality (or imported, according to the user’s requirement) product, the PLC adopts international brand products (OMRON, MITSUBISH, SIEMENS, etc.), to guarantee the automation level.
4. A quality supervision team that consists of design engineers and quality inspectors is established, to guarantee the manufacturing quality.
5. Key parts (such as blast wheels), all experience long-time loading trial run within the factory.
6. As for large-scale non-standard equipment, after finishing manufacturing, the user will carry out the pre-acceptance to every functional part, only after the equipment is regarded as quality product, can it be allowed to leave the factory.
7. The company guarantee the spare-part supply for our products (For detailed information, please refer to “Spare-part and special tools”).
