| Model: | 3226C |
|---|---|
| Brand: | signstech |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | Desktop CNC Router , CNC Router |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:20 Jul, 2016 |
 |

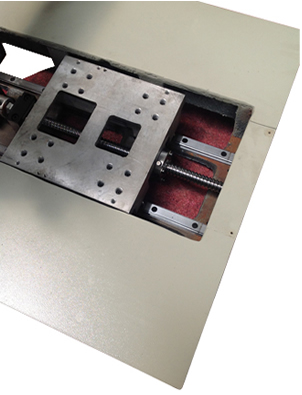

Base Frame: iron casting base being precisely processed by gantry milling machine and
stress relieved by vibration device so that the foundation remains true and steady over the operational life of the machine. |
 |
RichAuto DSP controller with English interface, A compact and durable DSP with 128M
internal memory,it supports U flash memory as well as online file communication. It is available with standard G code or HPGL,and has practical functions like faster calculation, stronger processing ability,breakpoint memory and power failure protection function,etc. |
 |

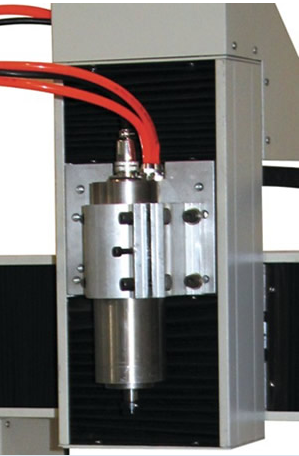

Spindle: Quality 0.8kw water cooling spindle with better performance of cost-effectiveness,
various spindle options available for different requirements. |
 |

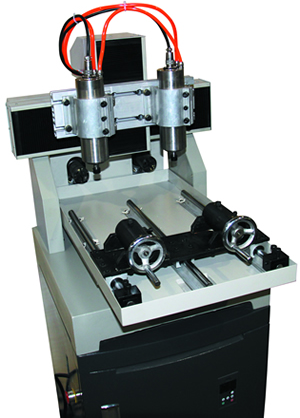

Rotary Axis:Compact table for single or multiple spindles, High speed and rigidity.
Powerfully clamps materials of various diameters.. |
 |

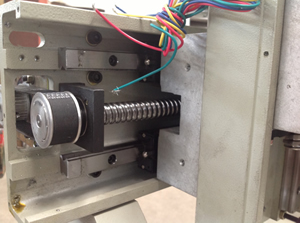

Bolt Pole: Quality bolt pole with diameter 16mm and re-positioning
accuracy 0.01mm for X,Y,Z axis. |
 |

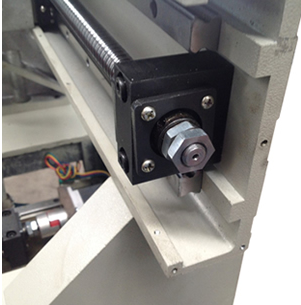

Fasten Nut for every Screw to eliminate the interval efficiently.
|
 |

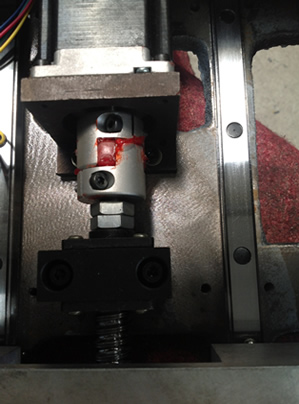

Stepper Motor: Industrial sub-divided stepper motor centered drive has
outstanding wearability and it offers long-term maintenance-free solution. |
 |

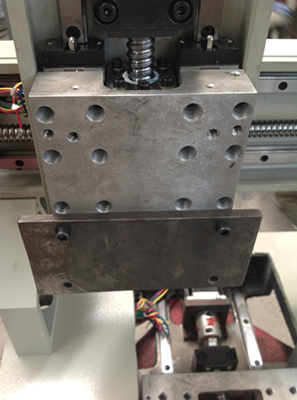

Linear Square Guide: on every axis we use linear square guide which has high rigidity,
vibration and shock resistance. |
 |

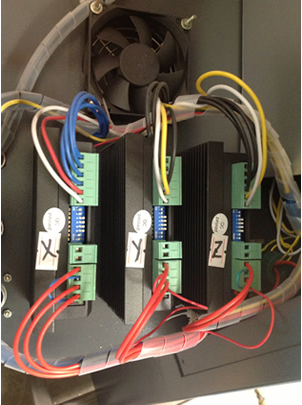

LEADSHINE Step Drive:Durable electrical components of strong brands are
applied to ensure maintenance-free for long term use |
 |

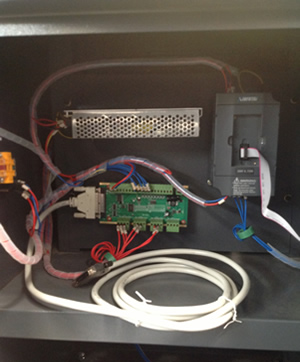

Electric Cabinet:All the electrical components are housed and wired in a electrical enclosure.
This allows for easy access and service when needed. Every wire is tagged so that when service is required, the customer can easily navigate the cabinet. |
| Model | SG-3226C | |
| Bed Size | 320mmx260mm | |
| Travel of engraving | 300x250x80mm | |
| Spindle Power | 800W | |
| Port | USB/Serial | |
| Max run speed | 4500mm/min | |
| Min feeding speed | 1mm/s | |
| Resolution(X,Y,Z) | 0.0125mm | |
| Max speed of Spindle | 6000-24000rpm | |
| Format of command | HP-GL,G code | |
| Power | 500w(void load) | |
| Dimension | 550x600x525mm | |
| Power source | DC220V/±10% 50HZ | |
| Gross weight | 120KG,net 80kg | |
