| Model: | Y81-63 |
|---|---|
| Brand: | Anyang Forging Press |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Hydraulic Pressure Machine & Parts |
| Label: | Hydraulic press , Baling Press , cnc forging press |
| Price: |
US $10000
/ set
|
| Min. Order: | 1 set |
| Live Chat: |  | Last Online:19 Jun, 2021 |

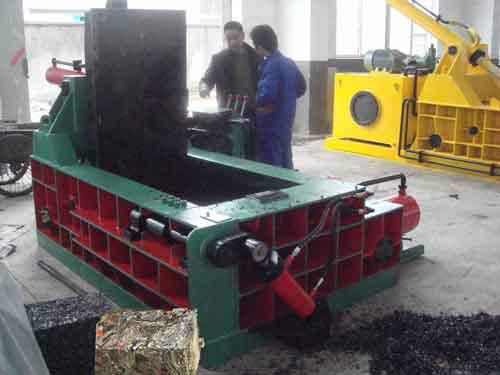

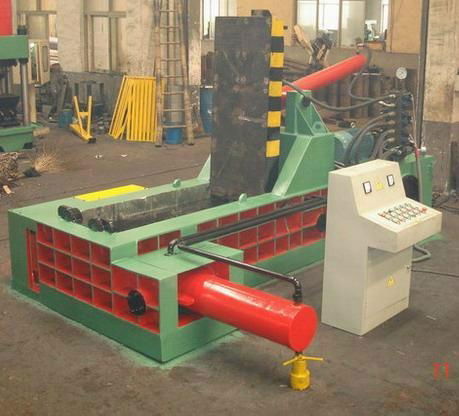

Introduction of Hydraulic Baling Press:
Hydraulic baling machines are applied in steel mills, recycling plants, ferrous & non-ferrous smelting industry to recycle metal scrap (steel, copper, aluminum, stainless steel, discarded automobiles, etc) into acceptable furnace charges in shapes of cuboids.
Features of Hydraulic Baling Press:
1. Hydraulic drive, manual or PLC control.
2. Bale-discharging: turn-out, push-out, forward-out, manual discharging.
3. Options for different force, press box size, bale shape & size.
Hydraulic Baling Press's parameter:
| Item | unit | Y81-63 | Y81-63A | Y81-100 | Y81-100A | Y81-130B | Y81-130C | Y81-135 |
| Pressure of main cylinder | KN | 630 | 630 | 1000 | 1000 | 1300 | 1300 | 1300 |
| ID of main cylinder | mm | ￠180 | ￠180 | ￠220 | ￠220 | ￠250 | ￠250 | ￠250 |
| Baling Chamber | mm | 750×500 | 1000×600 | 1000×700 | 1100×500 | 1200×700 | 1200×800 | 1400×600 |
| ×350 | ×500 | ×550 | ×500 | ×550 | ×550 | ×600 | ||
| Final Bale size | mm | 180×180 | 200×200 | 300×300 | 200×(200-500) | 300×300 | 300×300 | 600×250 |
| 250×250 | 250×250 | 250×250 | ||||||
| 220×220 | 220×220 | |||||||
| 200×200 | 200×200 | |||||||
| Baled block density | kg/m3 | ≥1800 | ≥1800 | ≥1800 | ≥1800 | ≥1800 | ≥1800 | ≥1800 |
| Power | KW | 7.5 | 11 | 11 | 11 | 15 | 15 | 18.5/22 |
| Baler Discharging | manual | Turn-out | Turn-out | Forward-out | Turn-out | Turn-out | Forward-out | |
| Machine Weight | ton | 3 | 4.5 | 5.5 | 5 | 6 | 6.2 | 7.8 |
