| Model: | - |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | HSSCo5% countersink , Taper countersink , DIN334C countersink |
| Price: |
US $1
/ pc
|
| Min. Order: | 5 pc |
| Live Chat: | Last Online:16 Nov, 2018 |

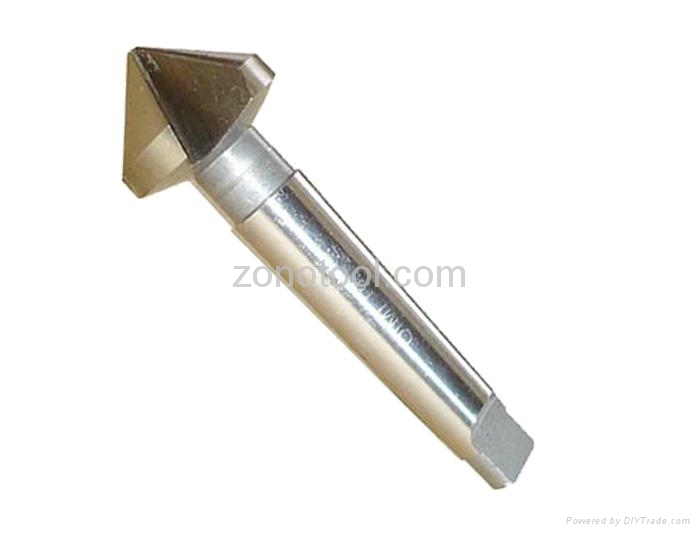

HSS 3 Flute Countersink 90 degree, DIN334C
Taper Shank Series
* 60 degree are available.
* 3 cutting edges.
* Best result at low cutting speed.
* Quickly and accurately countersink, deburring, and chamfer in any machinable materials
including iron, steel, plastic or wood.
* M35 HSSCo5% (HSS-E) available for specified requirements.
* Surface: White Finish, Black Finish, Titanium Coated & TiALN Coated are available.
* Packaging: Individual packing in Plastic tube.
Size Metric:
|
Item No. |
Size |
Overall Length |
Morse Taper |
|
COU0034015 |
15mm |
85mm |
1 |
|
COU0034165 |
16.5mm |
85mm |
1 |
|
COU0034190 |
19mm |
100mm |
2 |
|
COU0034205 |
20.5mm |
100mm |
2 |
|
COU0034230 |
23mm |
106mm |
2 |
|
COU0034250 |
25mm |
106mm |
2 |
|
COU0034260 |
26mm |
106mm |
2 |
|
COU0034280 |
28mm |
112mm |
2 |
|
COU0034300 |
30mm |
112mm |
2 |
|
COU0034310 |
31mm |
112mm |
2 |
|
COU0034340 |
34mm |
118mm |
2 |
|
COU0034370 |
37mm |
118mm |
2 |
|
COU0034400 |
40mm |
140mm |
3 |
|
COU0034500 |
50mm |
150mm |
3 |
|
COU0034630 |
63mm |
180mm |
4 |
|
COU0034800 |
80mm |
190mm |
4 |
|
COU0034100 |
100mm |
200mm |
4 |
