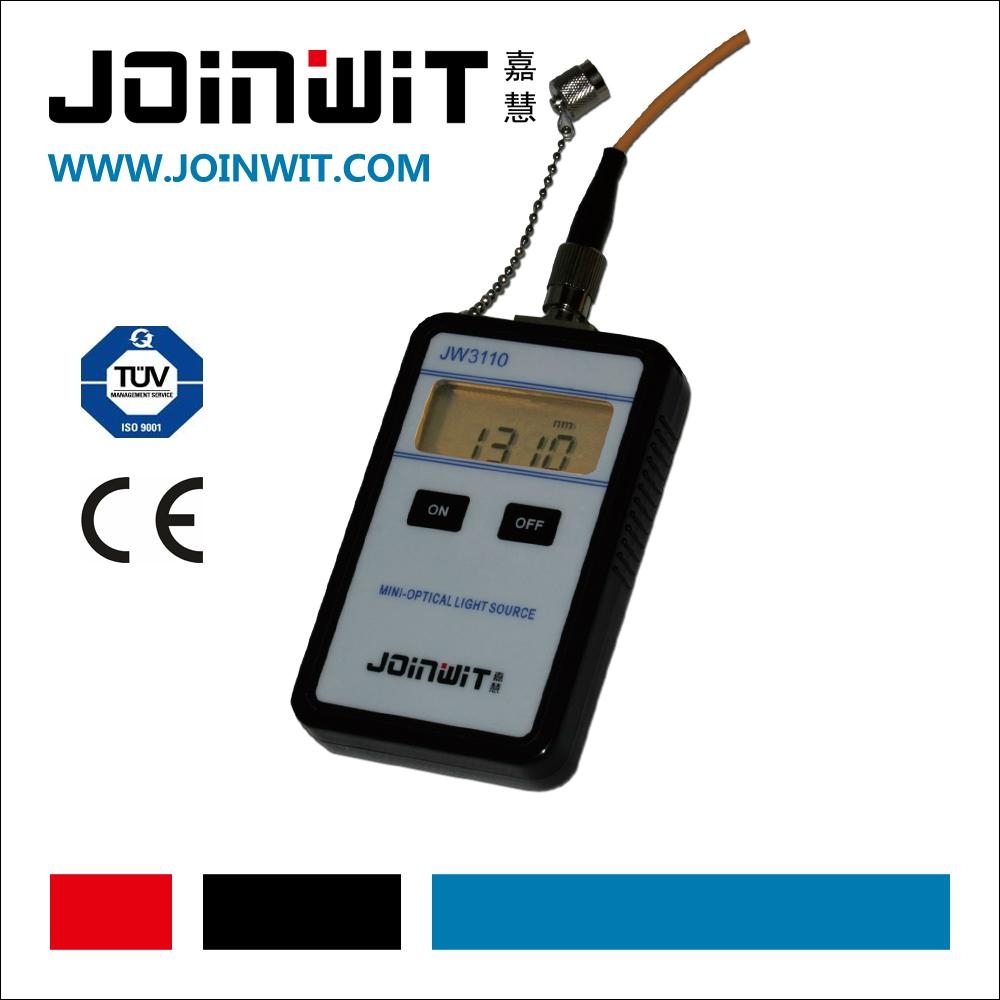

JW3110 Optical Light Source
JW3110 Mini optical light source is the most r ed small size instrument in the industry. It integrates
super small size and strong function in one unit. With 3 pieces of 1.5V alkaline batteries, it can work
continuously for more than 40 hours. The total weight is only 110g.
Specifications
|
Type |
JW3110 |
|
Wavelengths(nm) |
1310 or 1550 |
|
Emitter Type |
FP-LD |
|
Ouput Power(dBm) |
-7~-6 |
|
Spectral Width(nm) |
≤10 |
|
Output Stability |
±0.05dB/15mins; ±0.1dB/ 8hours |
|
Optical Connector |
FC/PC |
|
Power Supply |
3pcs 1.5V alkaline batteries |
|
Battery operating time(hour) |
40 |
|
Operating Temperature(°C) |
-10~+60 |
|
Storage Temperature(°C) |
-25~+70 |
|
Dimension(mm) |
115X60X20 |
|
Weight (g) |
110 |
|
Joinwit Recommendation |
|
|
JW3110 Handheld Light Source is designed for mini portfolio with JW3205 Optical Power Meter for measuring optical loss on both single mode and multi mode fiber cable. |
|
Standard Packages
|
MODEL |
INCLUDES |
|
All JW3110 Models |
The JW3110 Optical Light Source, Alkaline battery, User Manual, Cotton swabs and Soft carrying case. |
