| Model: | 10000 PCS/ Hour |
|---|---|
| Brand: | Asia Star |
| Origin: | Made In China |
| Category: | Industrial Supplies / Rubber & Plastics Machine |
| Label: | Plastic Cup , production line , asia star |
| Price: |
US $135000
/ Set
|
| Min. Order: | 1 Set |
| Live Chat: |  | Last Online:22 Dec, 2017 |
Plastic Cup production line
10000 PCS/ Hour
Equipment List :
|
No |
Equipment |
Model |
Qty |
|
1 |
Crushing Machine |
|
1 |
|
2 |
Mixing Machine |
|
1 |
|
3 |
Plastic Sheet Extruder |
SP-670B |
1 |
|
4 |
Thermoforming Machine |
CK-660C |
1 |
|
5 |
Stacking Machine |
|
1 |
|
6 |
Six Color Cup Printer |
YB100-6 |
1 |
|
7 |
Automatic filling and sealing machine |
|
1 |
|
8 |
Air Compressor |
LG-2.4/8 |
1 |

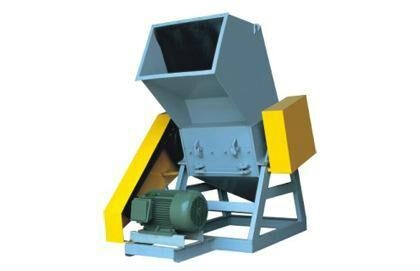

1. CRUSHING MACHINE
Technical parameters：
|
Model |
FS-650 |
|
Blade |
6 pcs |
|
Filter aperture |
12mm |
|
The maximum inlet capacity |
650mm*420mm |
|
The crushing efficiency |
700 kg/h |
|
Motor power |
15kw |
|
Size |
1200*1200*1500mm |
|
Weight |
900kg |

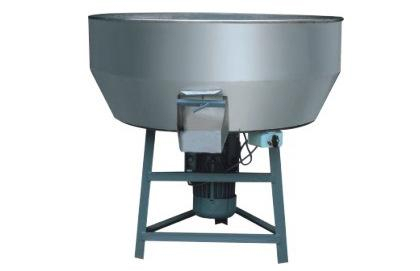

2. Mixing Machine
Mixing raw materials and Recycled materials

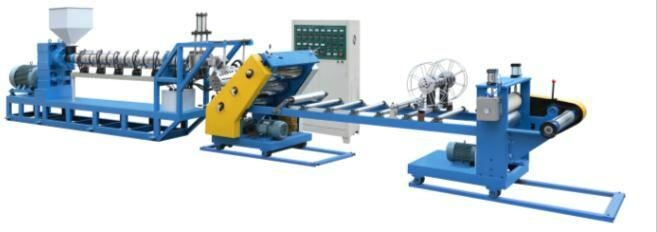

3 . SP-670B PLASTIC SHEET EXTRUDER
|
Model |
SP-670B |
|
Sheet width |
760mm |
|
Sheet Thickness |
0.3-2mm |
|
Screw diameter |
110 |
|
main motor power |
45 |
|
highest yield |
135 |
|
machine power |
65 |
|
size |
12×1.8×2.3m |
|
Capacity PP/PS |
180-220kg/h |
4 . CK-660CMulti-functional Thermoforming Machine
CK-660C MULTI-FUNCTIONAL THERMOFORMING MACHINE is designed with most advanced thermoforming technology, a combination of mechanical, electrical and pneumatic components. And the whole system was controlled by PLC. The machine has man-interface operation which Electric cooker constant temperature preheat, sends sheet by chain, running by cam, forming by up and down mould and cutting by mould knives. It combines the sheet sending, heating, stretching, forming, cutting into one process. The machine is suitable for PP, PS, ABS, HIPS,PEP material. They are widely used in producing disposable table wares as various kinds of cups like ice cream cups, milk cups, jelly cups, cup covers, instant noodle bowls, toy boxes, etc. It can also be used in plastic package in medicine manufacturing, light industry, textile, tourism, etc.
2. Technical Parameters
|
Suitable material |
PP、PS、HIPS、PET、PVC |
|
Using power |
3x380V+N+PE,50HZ |
|
Suitable thickness of sheet |
0.35-2.2mm |
|
Sending motor power(Japan Yaskawa) |
2.4-4.4kw |
|
Suitable width of sheet |
500-630mm |
|
Max.forming area |
640x330 |
|
Productivity efficiency |
20-35mould/min(10000PCS/Hour) |
|
Max.depth of forming |
160-180mm |
|
Using pressure |
0.7Mpa |
|
Adjustable length of the trip |
100-400mm |
|
Air consumption |
2000L/min |
|
Rated heating power |
65-75kw |
|
(200C) Water consumption |
100L/min |
|
Regulator pressure mould heating |
50A |
|
Machine weight |
5.0/5.5T |
|
Main machine motor power |
7.5kw |
|
Dimension |
3300x1800x2500mm |
5 .Stacking Machine
|
Power |
1.5 kw |
|
Speed |
30000 (pcs / hour) |
|
Size |
4200*100*560 mm |
|
Weight |
700 (kg) |
6. YB110-6 Six Color Cup Printer
|
Color class |
6 |
|
Cup height |
40-140mm |
|
Cup mouth diameter |
Φ40-110mm |
|
Printing length |
120 |
|
Printable angle |
2-12° |
|
Print speed |
1800 pcs / min |
|
Power of curing device |
6kW |
|
Power of corona treatment device |
1kW |
|
Total power |
18kW |
|
Size |
5000X2000X1900mm |

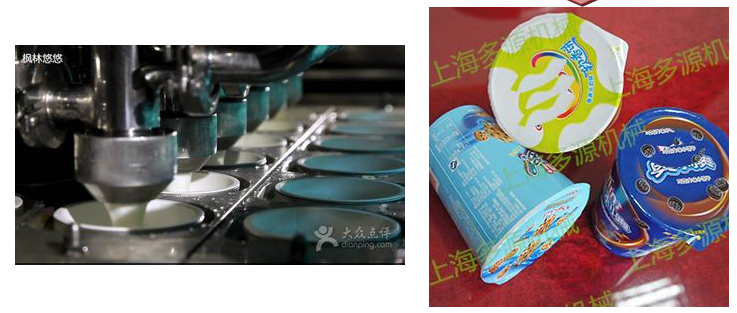

7. Automatic filling and sealing packaging machine
Production ability : 1800～2000
Power supply Voltage :220V 50Hz
Power :2kw
Sealing width :350mm
Contour size :2400×600×1600
Weight :206kg
8. LG-2.4/8AIR COMPRESSOR (screw)
|
features:
|
TECHNICAL:
|
Max. Working pressure |
P2=0.8MPa |
|
Cool stype |
Air cooling |
|
Air out temp. |
Above AMB 15℃ |
|
Lubricating oil |
12 L |
|
Rotate speed |
N=1452r/min |
|
Power |
15kW |
|
Exhaust |
V=2.4m3/min |
|
Max. Temp. |
45℃ |
|
Min. Temp. |
-25℃ |
|
Oil consumption |
3mg/m3 |
|
Noise |
72dB(A) |
|
Dimension |
1060×800×1370 |
| Price Terms: | FOB Zhejiang |
|---|---|
| Payment Terms: | TT |
