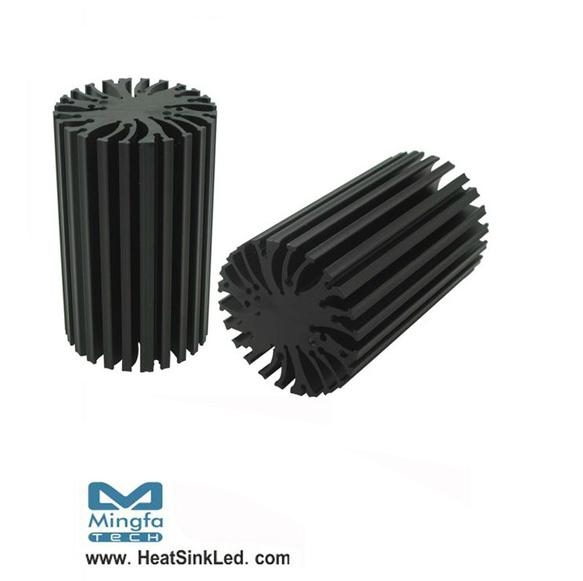

EtraLED-PRO-4850 Prolight Modular Passive Star LED Heat Sink Φ48mm

* The EtraLED-PRO-4850 Prolight Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the Prolight LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 500 to 1400 lumen.
* Thermal resistance range Rth 4.2°C/W.
* Modular design with mounting holes foreseen for direct mounting of Prolight COB series    LED engines.
* Diameter 48mm - standard height 50mm  Other heights on request.
* Extruded from highly conductive aluminum.

EtraLED-PRO-4880 Prolight Modular Passive Star LED Heat Sink Φ48mm
* The EtraLED-PRO-4880 Prolight Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the Prolight LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 600 to 1900 lumen.
* Thermal resistance range Rth 3.6°C/W.
* Modular design with mounting holes foreseen for direct mounting of Prolight COB series    LED engines.
* Diameter 48mm - standard height 80mm  Other heights on request.
* Extruded from highly conductive aluminum.
