| Model: | JF-QT1500D |
|---|---|
| Brand: | Jianfeng |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Hydraulic Pressure Machine & Parts |
| Label: | block machine , brick making machine , brick machine |
| Price: |
¥60000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:15 Mar, 2019 |

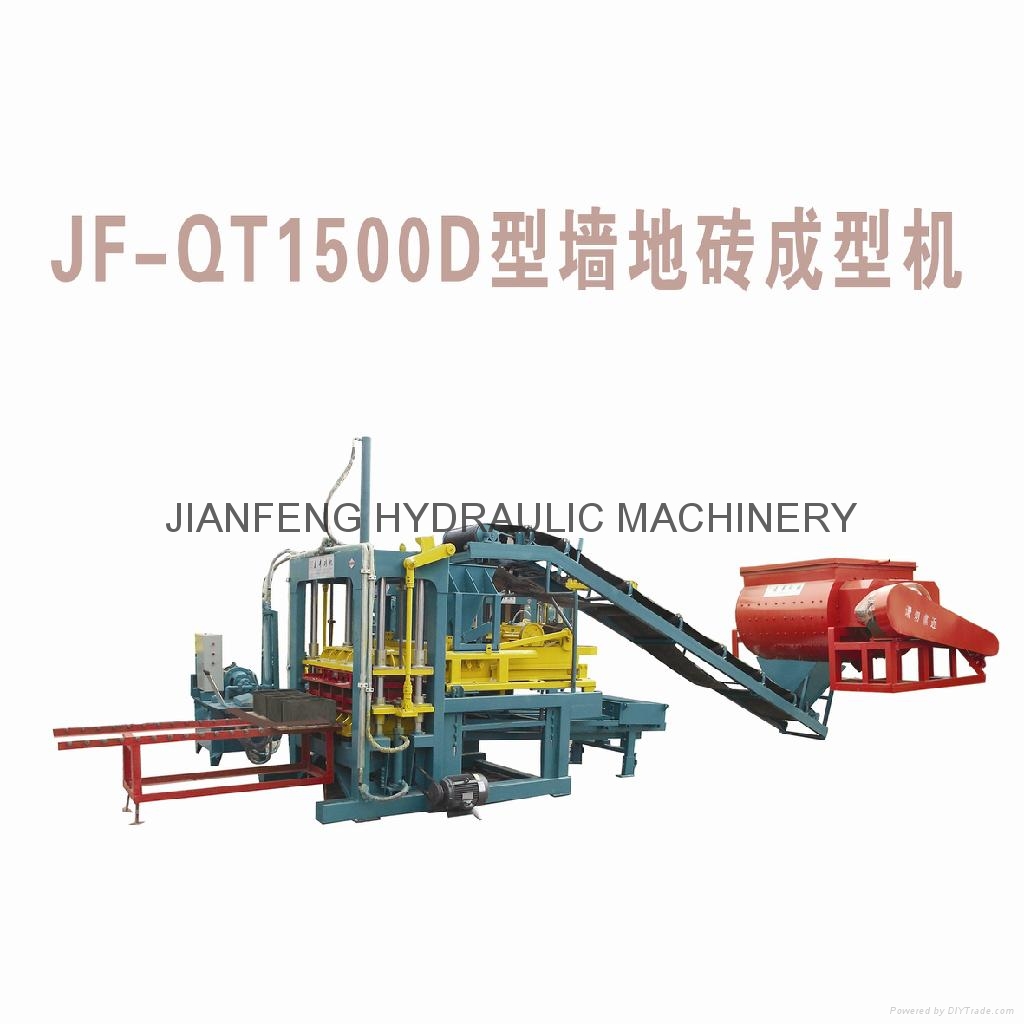

JF-QT1500D Brick/Block Machine
|
Description of Equipment
|
Specification and Type
|
|

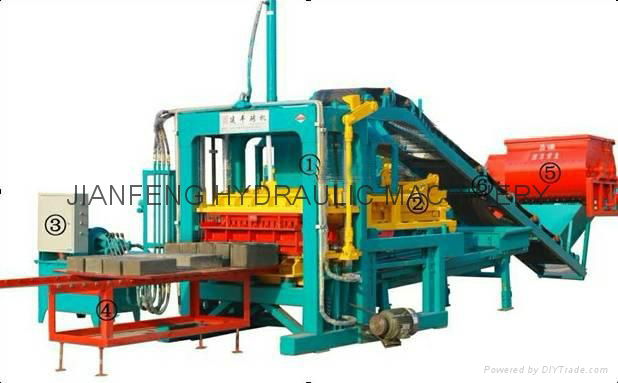

①Main Machine、②Feeding Machine, ③Pump Station |
JF-QT1500D |
|
④Pallet Feeder, Brick Receiver |
|
|
⑤Mixer |
JS400 two shafts compulsory mixer |
|
⑥Conveyor |
9m |
Main Technical Parameter
|
No. |
Item |
Parameter |
|
1 |
Shock force |
68KN |
|
2 |
Frequency |
6500(Time/Min) |
|
3 |
Amplitude |
15mm |
|
4 |
Noise |
95db(A) |
|
5 |
Shock time |
6(Second/Time) |
|
6 |
Overall dimension |
3400×1900×2250(mm) |
|
7 |
Power |
24.2KW |
|
8 |
Weight |
7.5（T） |
|
9 |
Max pressure |
10T |
|
10 |
Pallet size |
1100×570×20(mm) |
|
11 |
Worker |
8 (person) |
|
12 |
Land |
≥3000 m² |
Product specifications and Yield
|
Product specification (L×W×H)(mm) |
Modelnumber |
Per hour yield |
Produce period |
|
240*115*53（mm） |
32 Piece |
5760 Piece |
20 Second/Time |
|
390*190*190（mm） |
5 Piece |
900 Piece |
20 Second/Time |
|
225*112.5*60/80（mm） |
16 Piece |
2880 Piece |
20 Second/Time |
|
198*98*60(mm) |
18 piece |
3240 Piece |
20 Second/Time |
|
240*115*90（mm） |
16 Piece |
2880 Piece |
20 Second/Time |
|
1000*150*300（mm） |
1 Piece |
90 Piece |
40 Second/Time |
