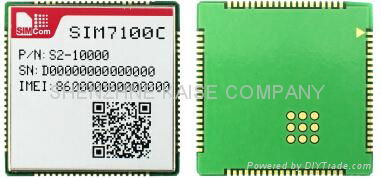

SIM7100C

SIMCom presents an ultra compact and reliable wireless module SIM7100C which is based on Qualcomm  MDM9215 multiple-mode LTE platform. SIM7100C is a complete multi-band TDD-LTE/FDD-LTE/TD-SCDMA/WCDMA/GSM/GNSS SMT type module designed with very powerful processors integrating application core:Cortex™ A5(550MHz),three QDSP6 cores (Up to 500Mhz), allowing customer to benefit from small dimensions and cost-effective product solutions.

It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capabilities like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s applications.

General features

•Four-Band  TDD-LTE B38/B39/B40/B41

•Four-Band FDD-LTE B1/B3/B7/B8

•Dual-Band TD-SCDMA  B34/B39

•Dual-Band UMTS/HSDPA/HSPA+  B1/B8

•Tri-Band GSM/GPRS/EDGE 900/1800 MHz

•Control Via AT Commands

•Supply voltage range: 3.4V~ 4.2V

Operation temperature: -40℃ to +85℃

•Dimension:  30 X 30X 2.9 mm

•Weight: 5.7g

•GNSS  gpsOne Gen 8B;standalone;assisted,XTRA;

Specifications  for  Data transfer

•TDD-LTE/FDD-LTE

   - Uplink up to 50Mbps,

   - Downlink up to 100Mbps

•TD-HSDPA/HSUPA

   - Uplink up to 2.2 Mbps,

   - Downlink up to 2.8 Mbps

•TD-SCDMA

   - Uplink up to 128Kbps,

   - Downlink up to 384Kbps

•HSPA+

   - Uplink up to 5.76 Mbps,

   - Downlink up to 42 Mbps

•UMTS

   - Uplink/Downlink up to 384Kbps

•EDGE Class:

    - Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)

GPRS

    - Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)

•CSD

    - GSM data rate 14.4Kbps

    - WCDMA data rate 57.6Kbps

    - WCDMA 64kbps CSD for Video call

Other features

•USB Driver for Microsoft Windows  2000/XP/Vista/Win7/Win8

•USB Driver for Windows CE

•USB Driver for Linux /Android

•RIL supporting for Android/Windows CE

•Automatic installation for windows

•Linux API SDK

•Firmware update via USB

•TCP/IP/IPV4/V6 Multi-PDP,MT PDP

•FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS

•Gobi SDK to the Win7/Win8/Linux

•MBIM to Win8

•Source code  of  the PC manager of the device for reference

Interfaces

•USB2.0

•UART

•SIM card

•SPI

•I2C

•Keypad(5*5)

•Constant current sink

•GPIO

•RTC

•ADC

•PCM

•SDIO
