> Rated Power: 9W
> Working Voltage: 85-264VAV, 277VAC, 50/60Hz;
> Panel Outline Dimension: OD145 *T12mm

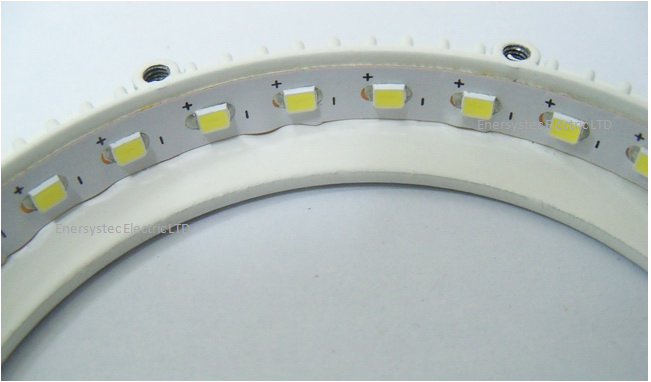

> LED Quantity: High Quality SMD2835 LED
> Luminous Flux: 700 Lm+/-10%
> Colour Rendering Index: 80 Ra.
> Colour Temperature: 2700K - 6500K
> Product Life: >50K Hrs.
> Power Factory: 0.95@240VAC, 0.99@90VAC
> Working Temperature: -40 ~ +55 Degrees
> Working Humidity: 95% RH
> Surface finish: Powder coating white
> Certification: CE, RoHs
> Case Material: Aluminum

Product Package：
1. Inner Box: L300*W250*H50mm, 1pcs per Box.
2. Carton Dimension: L600*W500*H270mm, 20pcs per carton.
3. G.W.: 17KG

Product Characters：

High Luminous output with energy saving of 60%.
All material are high quality, longer lifespan,
No flicker, No start up delay, Environmentally friendly.
Use Mitsubishi light guide bord with higher lights distribution efficiency, and long service time, reduced the light loss.
Aluminum frame, surface with powder coating process.
The external High Quality LED driver provides stable driving current, low current noise which is good to protect the LED will not failure with overstress, high reliability.


Application:

Shopping Mall, Office, Hotel, Residential lighting, Commercial Lighting
