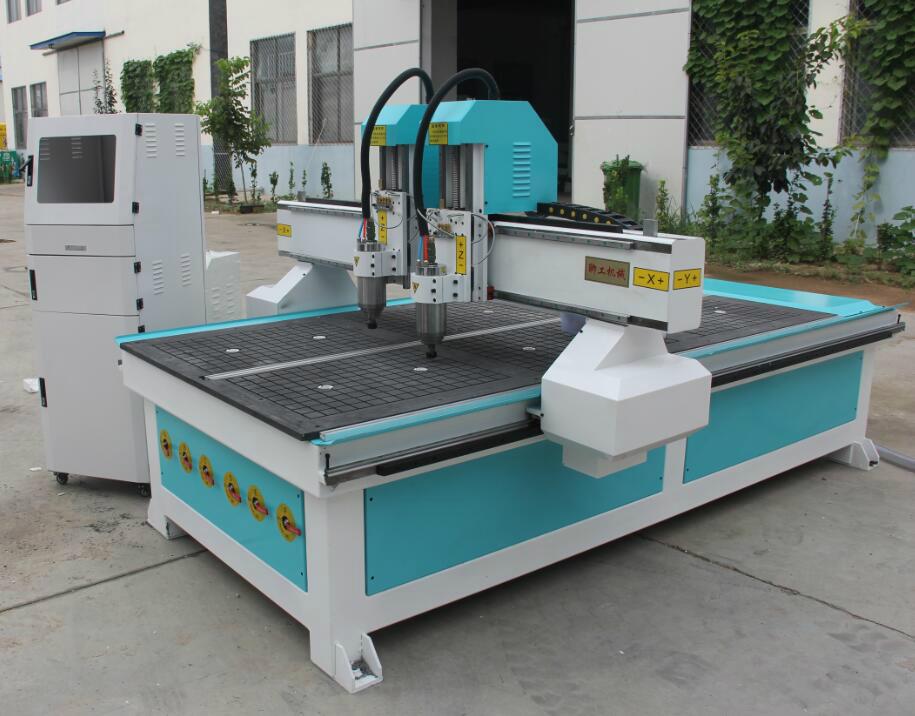

wo heads woodworking cnc router with vacuum table







application cnc wood

Wood carving CNC router application:

1.Furniture industries: cabinet doors, wooden doors, solid woods, plates, antique furniture, doors,windows, desks and chairs.

2.Decoration industries: screens, wave boards, large-size wall hangings, advertising boards and sign making.

3. Arts & Crafts industries: engrave on artificial stones, woods, bamboos, marbles, organic boards,double-color boards and so on for achieving effects of exquisite patterns and characters.

4. Processing material: engraving, milling and cutting processing for acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum.

CNC Router Feature

1. Whole machine is welded with thick square seamless steel structure; the stability is excellent, not easy to be deformed.



2. Three axis adopt high precision square orbit; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost. Z axis adopts ball screw.



3. High power spindles have constant power, low noises and super strong cutting force, which improve working efficiency greatly.



4. Famous brand drivers and motors have characteristics such as powerful strength, fast processing speed.



5. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.



6. Has the function of re-carving after break point and power failure.



7. Has the function of forecasting process time.



8.Perfect oil lubrication system makes maintenance much easier. And electric limit switch on all axis, make sure machine running well.



9. Independent control box make control easier.



10. We will provide you a set of cutter, and a tool box with other necessary accessories

Technical Parameter :





NO.	Discription	Parameter
1	X,Y,Z Working Area	1300X2500X350mm
2	Table Size	2005X3250mm
3	X,Y,Z Traveling Positioning Accuracy	±0.05/300mm
4	X,Y,Z repositioning Positioning Accuracy	±0.05mm

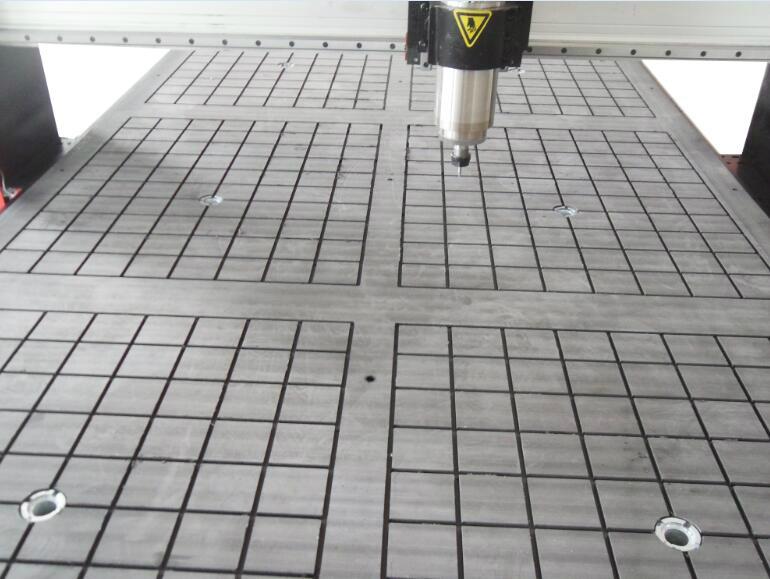

5	Table Surface	Coption.Vacuum Table
6	Frame Structure	Welded Steed
7	X-Z Structure	Rack and Pinion Drive,Hiwin Railinear Bearings
8	Y Structure	Ball Screw and Hiwin Rail Linear Bearings
9	Max. Power Consumption	2.0KW
10	Max. Rapid Travel Rate	45000mm/min
11	Max. Working Speed	25000mm/min
12	Spindle Speed	6000-18000RPM
13	Drive System	Stepper system (Option:servo system)
14	Working Voltage	AC220V/50Hz/60Hz 3Ph(Option:380V 3Ph)
15	Command Code	G code
16	Operating System	DSP System (Option:Mach3 PC Software)
17	Interface	USB
18	X-Y Resolution	<0.02mm
19	Software Compatability	Nc studio
20	Running Environment	Temperature:0-45 Relative humidity:30%-75%
21	Packing Size	22000X3740X1800mm
22	Net Weight	1750KG
23	Gross Weight	1950KG



Detailed Images











Product Effects

SAMPLES



The models we have:



Laser machine: LT-K40, LT-5030, LT-6040L, LT-6040, LT-9060,LT-1060, LT-1390, LT-1610,LT-1325



Fiber laser marking machine: LT-F10/20, LT-PF10/20



CO2 laser marking machine: LT-RF30, LT-RF50



Mixed Co2 laser machine: LT-M1325, LT-M1530



CNC router:LT-C4040, LT-C6090,LT-C1218, LT-C1325,LT-C1530, LT-C1218S,LT-C1325S, LT-C1530S....



Plasma cutting machine: LT-C1325P, LT-C1530P



CNC router working video on Youtube:



Cnc router working on wood

https://www.youtube.com/watch?v=w8Hd-BNlyuA

Cnc router working on PCB

https://www.youtube.com/watch?v=rLX1E4wQkcI

Cnc router working on stone

https://youtu.be/bhcOdilFSQo



Click the model No., you can get more details of it!

Customized size is available, to meet the need of all customers!





Aftersale service c

After-sale service



1.One year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when problems happened during the warranty period.

2.Lifetime maintenance free of charge.

3.Free training course at our plant.

4.We will provide the consumable parts at an agency price when you need replacement.

5.12 hours on line service each day, free technical support.



6.Machine has been adjusted before delivery , operation disk was included.



Packaging & Shipping





Company Information

Longtai Laser Equipment company is a professional manufacturer in co2 laser  machine, fiber laser machine ,cnc router and 3d printer. We have a professional engineer team to provide techinical support for our customers.

Qaulity is the life of our company, and our tenet is “quality first, credit standing paramountcy, price in reason, delivery in time”. Welcome to cooperate and develop with us!



FAQ

Q1: How to get the most suitable machine and best price

  Please tell us:

  1.the material you wanna handle

  2.the Max size of these materials(length,width and thickness)

  3.the work you wanna handle with this machine(Engraving ?Cutting ?Or others?)



Q2: Do you have the manual of machine.

Yes,we can provide manual,CD software and video to help you operate the machine expertly.



Q3: If we do not know how to use the machine,can you teach us?

Yes ,of course. We can offer you free training, and engineers available to service machinery training overseas if you would like to offer them  business expenditure.



Q4.How about your after-sales service?

We offer  professional and timely after-sale 24 hours online service via phone,Skype or MSN.



Q5.How about your guarantee period?

12 months for whole machine and 3 months for consumables including laser tube, lens and mirrors.
