Model: | YAP,YEP |
---|---|
Brand: | Jianda |
Origin: | Made In China |
Category: | Construction & Decoration / Waterproof Materials |
Label: | waterproof membrane , breathable membrane , roofing membrane |
Price: |
US $1.25
/ sqm
|
Min. Order: | 3000 sqm |
Live Chat: | Last Online:04 Jul, 2014 |
Specification
Description |
Specification |
Width |
Length |
Thickness |
Roof underlay |
500g/m2PP—PP |
1000mm |
30m |
0.8mm |
600g/m2S—PP |
1000mm |
25m |
1.0mm |
|
1500g/m2S—S |
1000mm |
20m |
1.3mm |
|
Roof underlay with adhesive band |
500g/m2PP—PP |
1000mm |
30m |
0.8mm |
600g/m2S—PP |
1000mm |
25m |
1.0mm |
|
1500g/m2S—S |
1000mm |
20m |
1.3mm |
Technical capacity index
JianDa brand waterproof breathable membrane
|
|
Test standard |
EN12310; EN12311; EN1849; ASTM D-97 |
Mass |
400g/m2 ----500g/m2 |
Elongation |
300N/5cm----400N/5cm |
Tensile |
240N/5cm----320N/5cm |
Resistance to tearing; > |
23% |
Water tightness |
0.2MP 24 hours |
Heat resistance |
85°c 24hours |
Cold flexibility |
-40°c 24hours no cracks or fractures |
Dimension |
make size according to client requirement |
Description

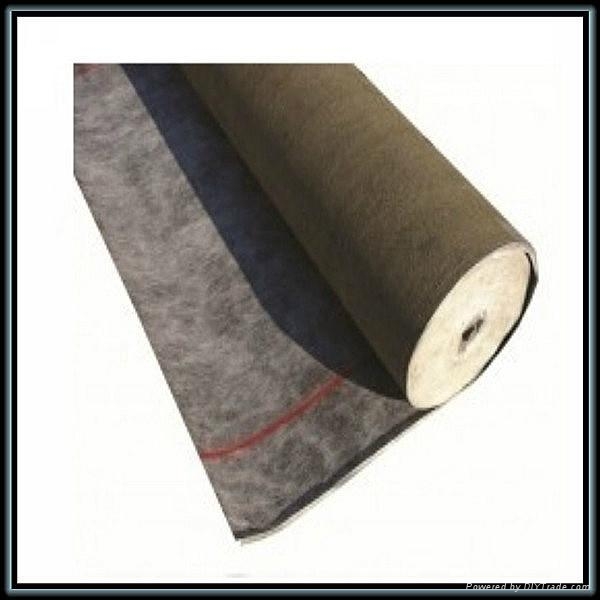

Jianda brand waterproof and vapor permeable membrane is polymer modified asphalt based, with surface of high strength polypropylene fiber. Back side coated with self adhesive glue or antiskid sand. Made by special process. With excellent waterproof performance and breathable properties.
Usage
It is used as the underlayment of cement tile, painted pottery watts and asphalt shingle. Also suitable for all kinds of architectural roofing, walls, underground waterproof and damp proof project.
Featurers
With double black polypropylene-called YEP
one side is white polypropylene and sand-called YAP
Testing Laboratory
Certifications
Packaging & Shipping
Packaging:packed in rolls with pallet
