Specifications

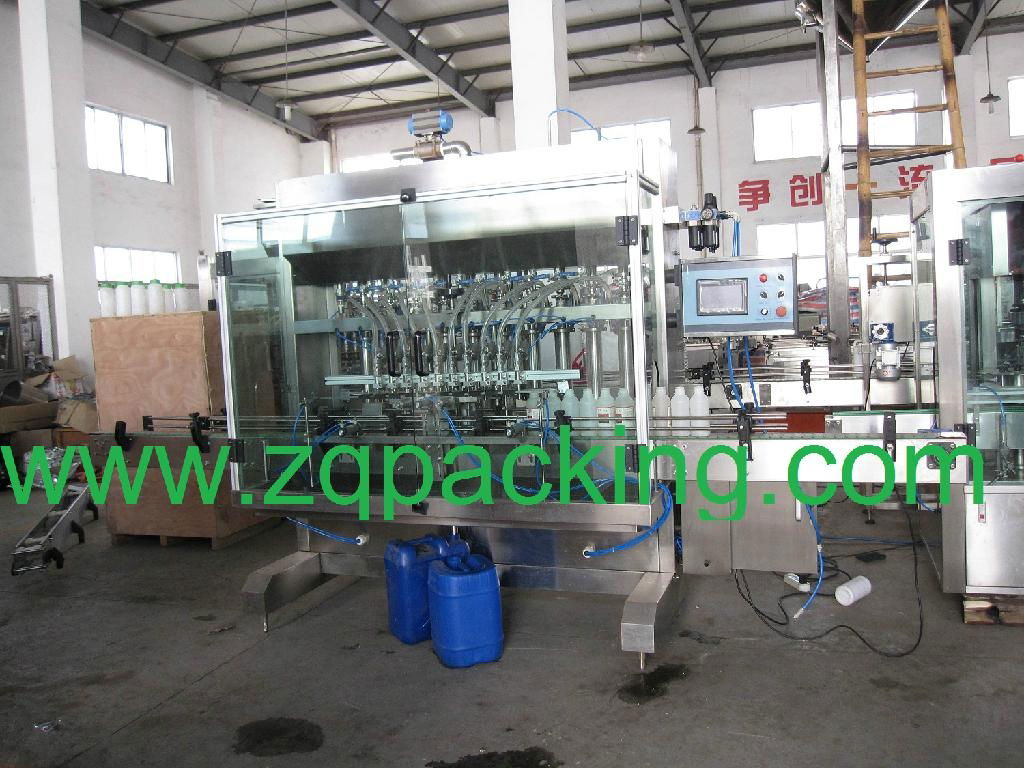

full-automatic intellectual viscous liquid filler
1.Production capacity:600-800bottles/hour
2.Air pressure:0.6-0.8mMPa
full-automatic intellectual viscous liquid filler
Suitable for material: exposurer, sc, cream class contour viscosity materials
Accurate measurement: adopt servo control system, ensure the piston can always reaches constant position
Variable speed filling: in filling process, when close to target filling capacity can be applied to realize speed slow filling, prevent the liquid spill bottle mouth cause pollution .
Convenient adjustment: replacement filling specifications only in touch screen can be changed in parameters, and all filling first change in position, fine-tuning dose it in touch screen adjustment.
Adopt servo motor to descend
Selecting the international famous brand electrical components configuration. Mitsubishi Japan PLC computer, omron photoelectric, Taiwan is produced touch screen, ensure the quality of its outstanding with long-term performance.
main parameters
| 1 | Applicable bottle size | 40-100ml |
| 2 | The measurement precision | ±1% |
| 3 | Filling capacity | 5L |
| 4 | Production capacity | 600-800bottles/hour |
| 5 | Air pressure | 0.6-0.8MPa |
| 6 | Gas consumption | 220L/minute |
| 7 | power | ~380v,5Hz |
| 8 | total rate | 4.5kw |
| 9 | weight | 1620kg |
| 10 | contour size | 2400*1500*2200mm |
