High frequency Online UPS Uninterruptible Power sypply PHT-10KVA

Model:PHT-10KVA
Brand:CONPO
Origin:Made In China
Category:Electronics & Electricity / Power Supply & Distribution / UPS
Label:Online UPS , Pure sine inverter , UPS
Price: US $100 / pc
Min. Order:100 pc
Inquire Now Add to Basket

Member Information

Detail

Nanjing Conpo Power Tech. Co., Ltd

Free MemberJiang Su - China
Live Chat:Last Online:19 Nov, 2022

Product Description

1. Features:
1).  True double-conversion online UPS
A true double conversion UPS will provide clean, high level quality power to fully protect mission-critical devices such as sensitive networks, small computer centers, servers, telecom applications, as well as for industrial applications.
2).  Output power factor 0.8
Compared to the online UPS in the current market, Venus series UPS provides better output power factor up to 0.8. It offers higher performance and efficiency for critical applications.
3).  Wide input voltage range(110V-300V)
Venus series can still provide stable power to connected devices under unstable power environments.
4).  50/60Hz Frequency Converter Mode
Lock output frequency at 50Hz or 60Hz to suit power sensitive equipments.
5).  ECO mode operation for energy saving
Offers efficiency as high as 97% to cut energy usage 7 cost UPS power application via static bypass, timely returning to online double conversion when the need arises.
6). Emergency Power Off(EPO) Function
This feature can secure the personnel and equipment in case of fires or other emergencies.
7). USB+RS232+RJ45+SNMP
This feature allows either USB, RS232 or RJ45 communication port to work with SNMP interface
simultaneously.
8). DSP technology applied for 6-10K models
A DSP controller provides an improved and cost-effective solution with high performance.



Models Power (phase) DC Vol. Main specifications Dimensions (W*D*H) mm
PHT1101B 1kVA(1/1) 36VDC 1kVA/800W, LCD display, 7Ah/12V*3pcs 397*145*220
PHT1101 1kVA(1/1) 36VDC 1kVA/800W, LCD display 282*145*220
PHT1102B 2kVA(1/1) 72VDC 2kVA/1.6kW, LCDdisplay, 7Ah/12V*6pcs 419*190*318
PHT1102 2kVA(1/1) 72VDC 2kVA/1.6kW, LCD display 397*145*220
PHT1103B 3kVA(1/1) 72VDC 3kVA/2.4kW, LCD display, 9Ah/12V*6pcs 419*190*318
PHT1103 3kVA(1/1) 72VDC 3kVA/2.4kW, LCD display 397*145*220
PHT1106B 6kVA(1/1) 192VDC 6kVA/4.8kW, LCD display, 7Ah/12V*16pcs 369*190*688
PHT1106 6kVA(1/1) 192VDC 6kVA/4.8kW, LCD display 369*190*318
PHT1110B 10kVA(1/1) 192VDC 10kVA/8kW, LCD display, 9Ah/12V*16pcs 442*190*688
PHT1110 10kVA(1/1) 192VDC 10kVA/8kW, LCD display 442*190*688

Product Image

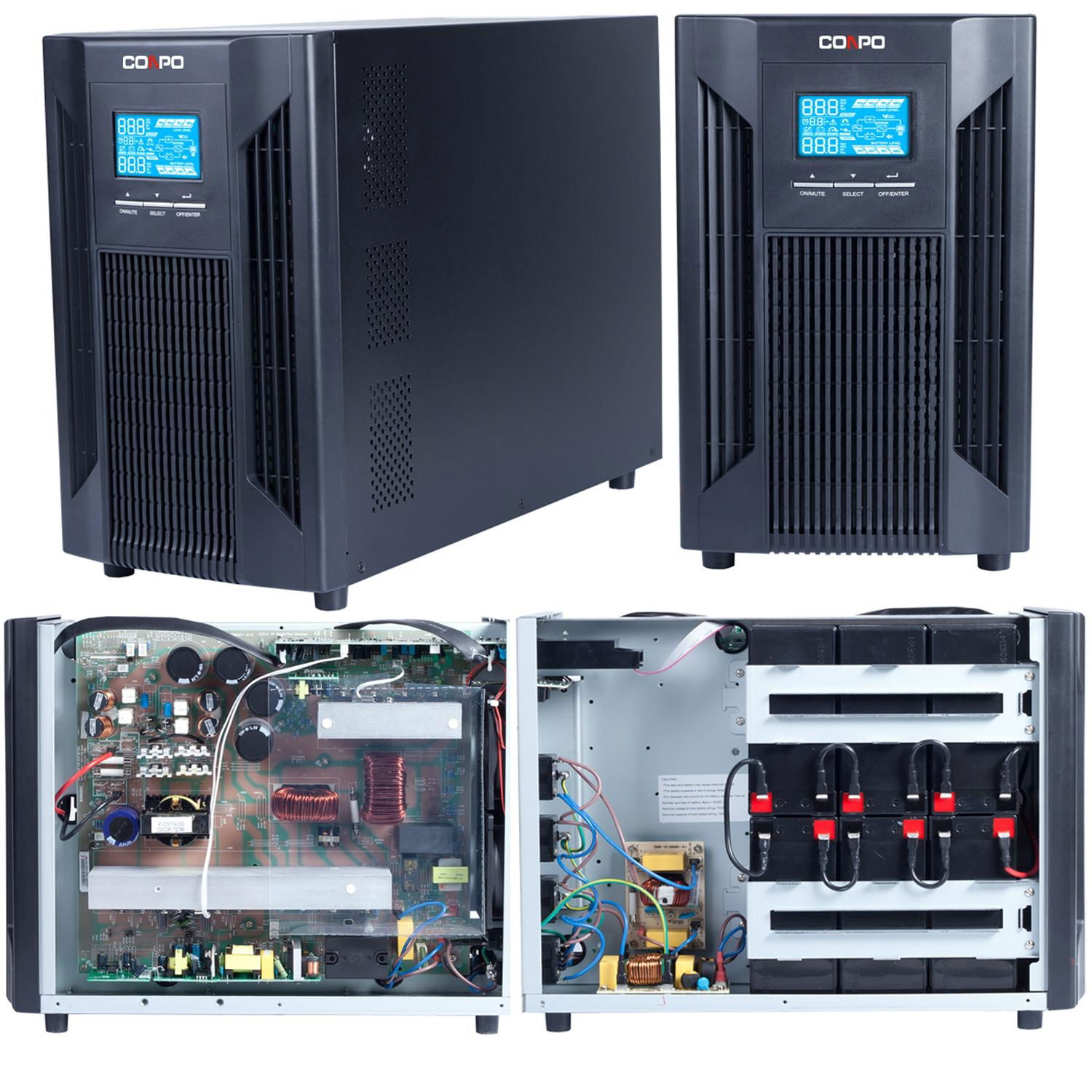

High frequency Online UPS Uninterruptible Power sypply PHT-10KVA  1
Img 1

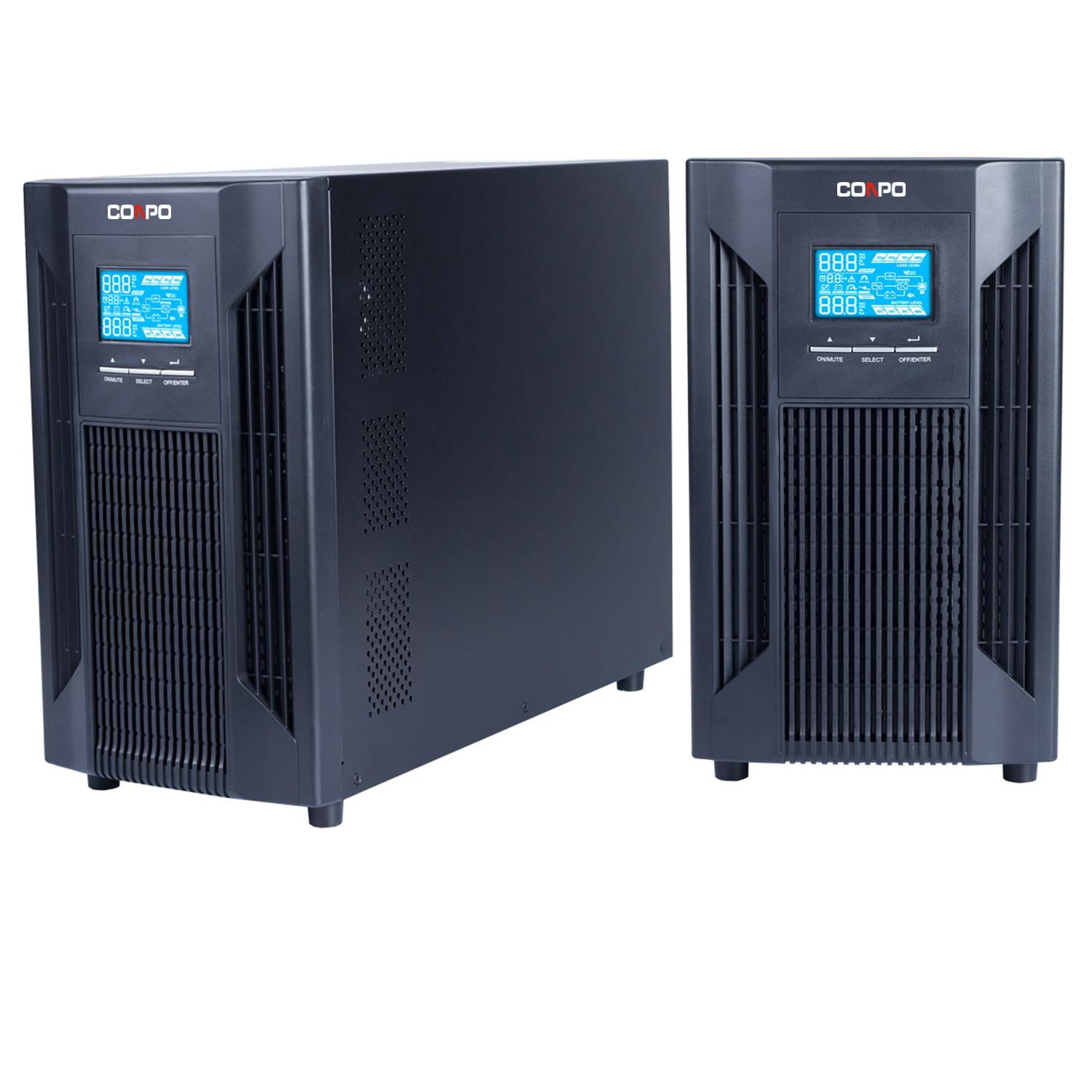

High frequency Online UPS Uninterruptible Power sypply PHT-10KVA  2
Img 2

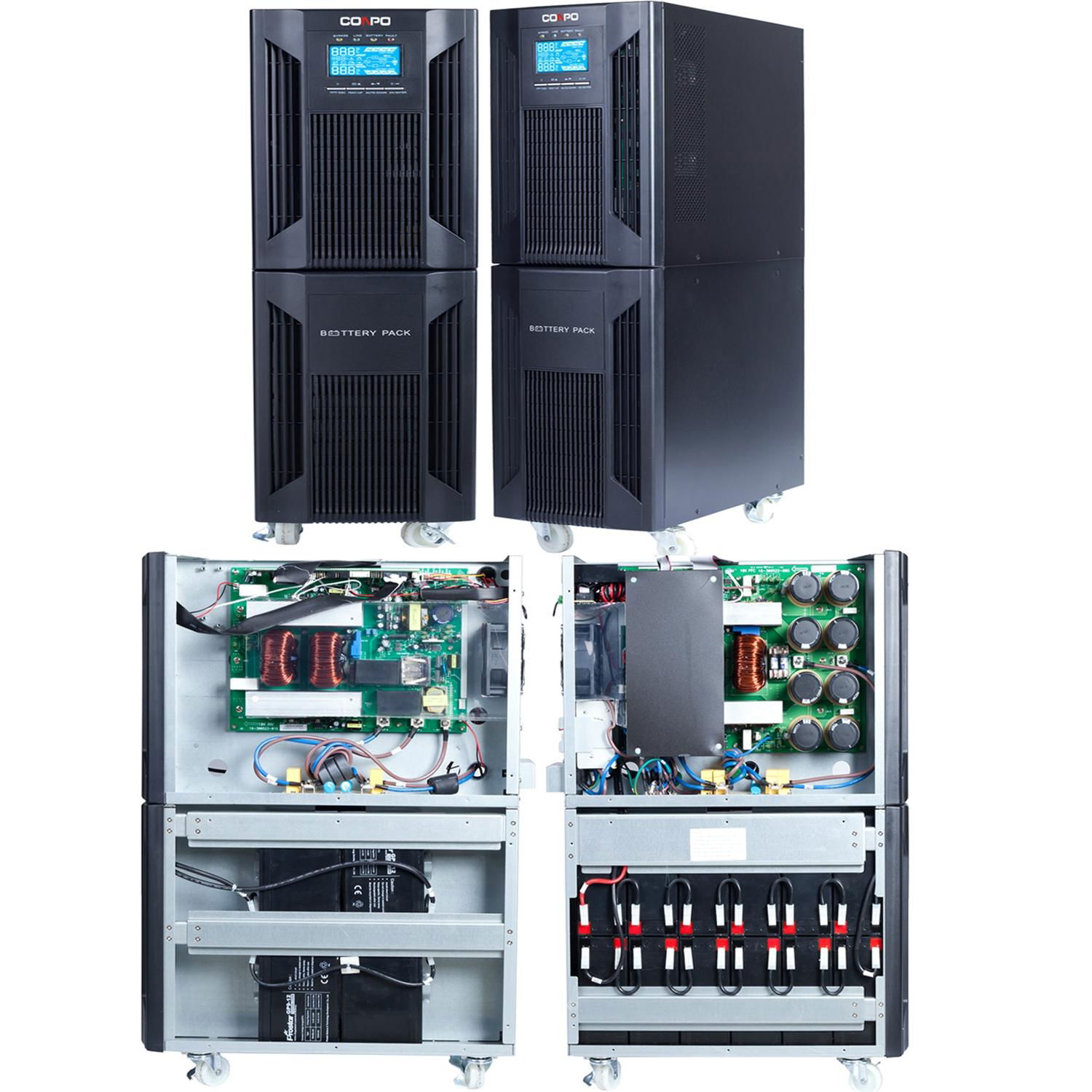

High frequency Online UPS Uninterruptible Power sypply PHT-10KVA  3
Img 3
High frequency Online UPS Uninterruptible Power sypply PHT-10KVA  4
Img 4
