2.0 ton capacity diesel forklift truck

Model:CPCD20
Brand:Dragon Machinery
Origin:Made In China
Category:Transportation / Logistics / Forklifts, Pallet Trucks
Label:2T diesel forklift , 2.0 ton fork lift , 2.0T forklift truck
Price: US $10100 / unit
Min. Order:1 unit
Inquire Now Add to Basket

Member Information

Detail

Qingzhou Guohua Construction Machinery Co., Ltd.

Free MemberShan Dong - China
Live Chat:Last Online:31 Oct, 2023

Product Description

2.0T diesel forklift, 2.0T diesel forklift truck, 2.0 ton diesel forklift, 2.0T diesel fork lift truck, 2T diesel forklift truck, 2T capacity diesel forklift, 2.0T capacity diesel forklift truck, 2.0T diesel powered forklift, 2.0T diesel fired forklift, 2.0 ton diesel powered fork lift trucks, 2.0 ton diesel fired fork lift truck, 2 ton diesel forklifts, 2 ton diesel forklift truck, diesel forklift truck 2.0T capacity, diesel forklift truck 2.0 ton capacity, 2000kg capacity diesel forklifts, 2.0 ton internal combustion forklifts, 2.0T internal combustion forklifts, 2 ton internal combustion fork lift truck, 2T internal combustion forklift truck, 2.0 ton counterbalance diesel forklift truck, 2.0T counterbalanced diesel forklifts



Features:

1. Intelligent Drive-monitoring System

The digital intelligent drive-monitoring system of our diesel forklift truck can facilitate obtaining the operation data of the diesel forklift easily, so as to achieve the whole-process control of the forklift.

2. Full Hydraulic Flexible Steering System

The full hydraulic steering system of our diesel forklifts can greatly reduce the fatigue of the operator. The steering system uses a horizontal oil cylinder on the compact steering axle and guarantees a reliable steering.

3. Classical Space Frame Structure

Our diesel forklift truck uses the classical YTO ASF space frame structure. It is ergonomically designed, aesthetic in appearance, compact in structure, and easy to operate.

4. Good-view Mast

The optimized rail section design of the mast enables the driver to enjoy a good and wide view.



Technical Specifications:

Diesel Fork Lift Truck Model: CPCD20

Power Type: Diesel

Rated Capacity: 2000kg

Load Center: 500mm

Lifting Height: 3000mm

Mast Tilt Angel (F/R): 6/12 deg.

Front Overhang: 465mm

Wheel Base: 1600mm

Wheel Tread (F/R): 960/970mm

Dead Weight: 3540kg

Free Lift Height: 160mm

Min. Turning Radius: 21740mm

Min. Ground Clearance - Under Mast: 105mm

Min. Ground Clearance - Wheelbase Center: 150mm

Service Brake: Hydraulic Foot Pedal

Parking Brake: Mechanical Hand Lever

Lifting Speed (full-load): 550mm/s

Lowering Speed: Full-load < 600mm/s, No-load > 300mm/s

Travel Speed (no-load): 19km/h

Max. Gradeability (full-load): 20%

Max. Tractive Force (full-load/no-load): 16/12kN

Weight Distribution with load (F/R): 4650/890kg

Weight Distribution without Load (F/R): 1360/2180kg

Engine Model: C490BPG

Engine Manufacturer: XINCHANG

Engine Rated Power: 40kW/2650rpm

Max. Torque/rpm of Engine: 162N·m/1800rpm

Engine Displacement: 2.54L

Battery Voltage: 12V

Battery Capacity: 100Ah

Gearbox Transmission Type: Hydraulic torque converter

Gear Shift (F/R): I/I

Tyre Type: Pneumatic Tyres

Tyre Model - Front: 7.00-12-12PR

Tyre Model - Rear: 6.00-9-10PR

Fork Dimension: 40x125x1070mm

Overall Length (without fork): 2480mm

Overall Width: 1150mm

Overall Height - Mast Extended: 4030mm

Overall Height - Mast Lowered: 2000mm

Overall Height - Overhead Guard: 2120mm



Note:

1. Technical specifications are for standard models only.

2. Other optional accessories, functions and requirements are available upon request.

3. All specifications and design characteristics are subject to change without prior notice.



Optional Engine:

Model: XINCHAI A498BT1 (EURO III)

Rated Power: 36.8kW / 2650rpm

Max. Torque: 186 N·m /1680rpm

Displacement: 3.168L

OR

Model: ISUZU C240 (EURO III)

Rated Power: 34.6kW / 2500rpm

Max. Torque: 139 N·m /1800rpm

Displacement: 2.369L


Payment Terms:T/T

Product Image

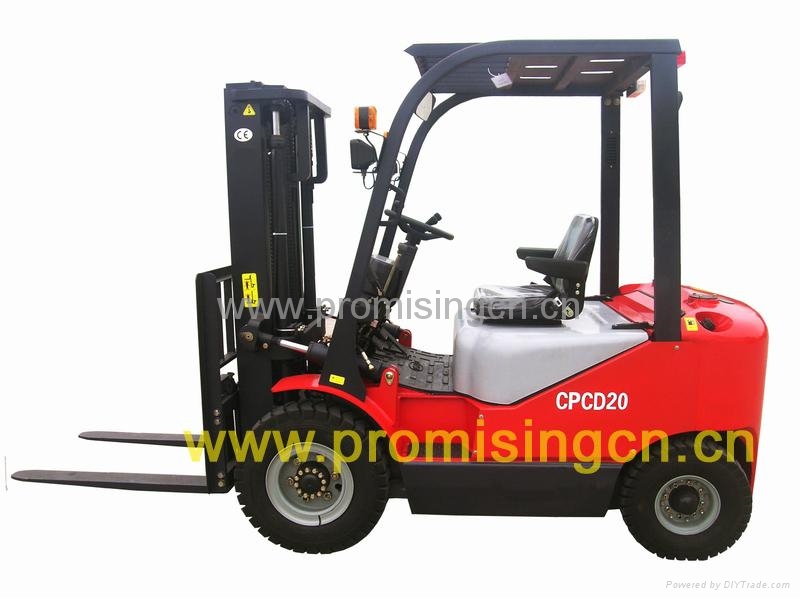

2.0 ton capacity diesel forklift truck 1
Img 1
2.0 ton capacity diesel forklift truck 2
Img 2
