| Model: | ZZ2317N4677C1 |
|---|---|
| Brand: | SINOTRUK HOWO |
| Origin: | Made In China |
| Category: | Transportation / Vehicles / Commemical Vehicles |
| Label: | cargo truck , log truck , ALL WHEEL DRIVE |
| Price: |
US $2000
/ unit
|
| Min. Order: | 1 unit |
| Live Chat: |  | Last Online:22 May, 2017 |
|

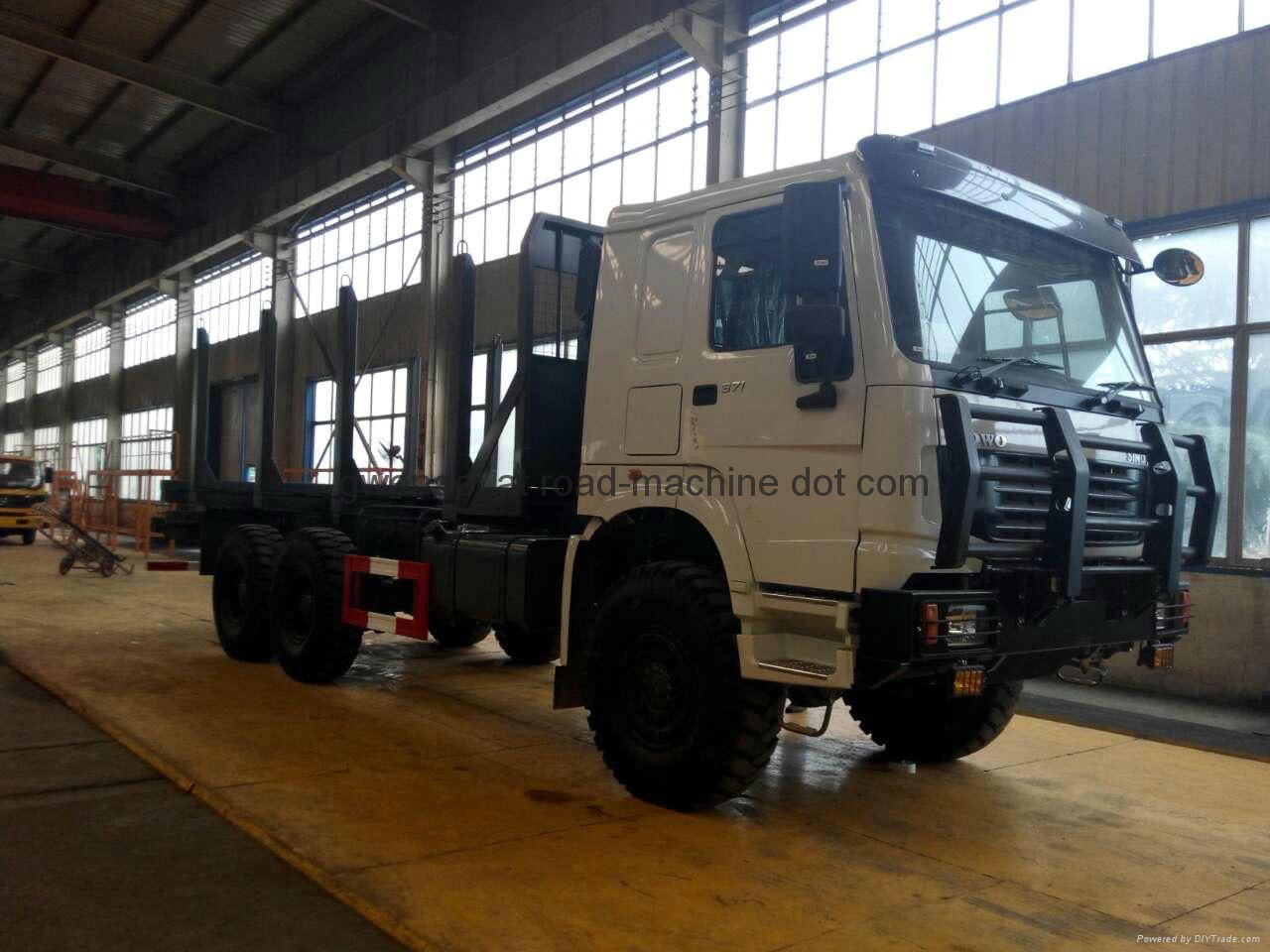

Sinotruk brand ALL WHEEL DRIVE truck, dump truck, cago truck, Log truck etc 4x4,6x6,8x8
Truck model |
ZZ2307S4677A/SOW |
ZZ2317N4977C/ SOW |
||
|
Sales code |
HW/375/046/8x 8W |
HW/380/035/8 x 8W |
||
|
Dimension (length x width x height) (mm) |
11178x 2496x3150 |
10663 x 2500 x 3110 |
||
|
Gross weight (kg) |
30000 |
30000 |
||
|
Total weight(kg) |
12320 |
12450 |
||
|
Max speed(km/h) |
80 |
82 |
||
|
Wheelbase(mm) |
1950+4600+1400 |
1950+4950+1400 |
||
|
Engine |
Mode |
WD615.47 |
WD615.96C |
|
|
|
Rated engine power (KW/r/min) |
273/2200 |
279/2000 |
|
|
|
Max. torque (N. m/r/min) |
1290/1100-1600 |
1590/1200-1500 |
|
|
Clutch |
430mm membrane pull-type spring clutch A type |
|||
|
Gearbox |
HW19710 |
|||
|
Drive axle |
steel front steering drive axle with planetary wheel reduction ST16 double drive axle |
|||
|
Steering |
ZF8098 |
|||
|
Transfer case |
Mode |
ZQC2000 |
||
|
|
High-grade /low-grade ratio |
0 .89/1.536 |
||
|
Brake type |
service braking:dual circuit compressed air brake:parking brake(hand brake), spring energy air cut brake |
|||
|
Cab |
HOWO76 cab |
|||
|
Electric system |
HOWO electric system 24V negative grounded |
|||
|
Tire |
12. 00-20 |
|||
|
Fuel tank(L) |
400 |
|||
