85%-90% High Recovery Rate Used Oil Vacuum Distillation Plant

Model:DIR DISTILLATIO
Brand:TONGRUI OIL DISTILLATION MACHINE
Origin:Made In China
Category:Industrial Supplies / Machinery / Cleaning Machine
Label:oil distillation , Vacuum Distillation , Oil Distilling Plant
Price: US $1 / SET
Min. Order:1 SET
Inquire Now Add to Basket

Member Information

Detail

Product Description

DIR Black Engine oil Vacuum Distillation equipment



Model DIR Waste Oil Vacuum Distillation Re-refinery Machine
Capacity 1,000Liters per day to 15,000Lites per day
Priciple pyysical-chemical reaction
Recovery rate more than 85%
Working Temperation 300-320Degree
Chemical Catalyst with percentage 2%-5%



Used oil should not be thrown away. Although it gets dirty, used oil can be cleaned of contaminants so it can be recycled again and again. There are many uses for recycled used oil. Recycling of waste oil has potential to save the energy, protect environment and recycle the natural resources.



DIR Waste Engine Oil Purifier Vacuum Distillation Equipment

DIR Waste Engine Oil Purifier Vacuum Distillation Equipment

Due to waste oil contain too much contamination, including non-hydrocarbon, alkene, polycyclic aromatic hydrocarbon, metal hydronium, impurities, metal particles, asphaltene and colloid etc. and due to the traditional technology only can refine the waste oil to base oil, can’t use directly, so our company is researching the new technology about distilling machine, which can distill all kinds of waste oil into clean oil, easy to operation, and the lower operation cost.



The purpose of waste distillation machine is re-refining industrial waste oil(including equipment lubricants, metal-working oil and process oil) and used automotive lubricants( such as engine oil, hydraulic oil and gear oil) to clean oil, then reuse it.



Distillation is the physical separation of components of lubricating oil by boiling range. Depending on the type of distillation, the boiling ranges can produce gases and gasolines at the lower boiling points with heavy lubricating oils being distilled at higher boiling points. Distillation is the core process for a facility capable of producing re-refined base-oils to virgin base-oil quality.

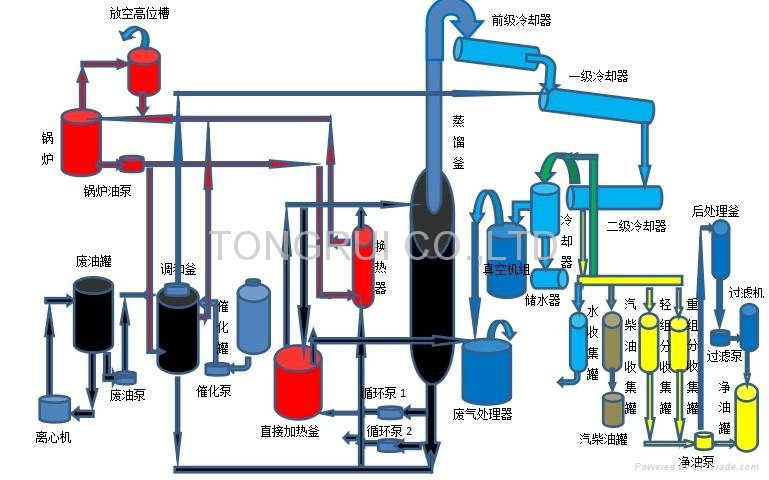

I.Working principle

This equipment adopt physicochemical actions to polymerize,passivate, absorb and eliminate impurities and harmful contamination. We research a new chemical alkaline complex catalyst, which can restore and regeneration the Waste oil to clean oil, save the component of the oil.



II. Advantage:

It’s easy to produce waste residue and bad smelling by traditional vitriol distilling, which will bring potential secondary pollution, moreover, it’s easy to change the color to black and produce the odor due to the recycled oil react with the oxygen. But after we use the alkaline complex catalyst refines the oil, the recycled oil havn’t change the color and havn’t create the odor. What’s more important, you can use the resid to be as the fuel to heating the oil, without any pollution. And the machine is easy to operate, only 1-2 workers can control the machine.



IV. Features:

1. Easy to operate, low operation cost

2. Environmentally friendly, without secondary pollution.

3. The machine can recycle gasoline oil, diesel oil, engine oil, rubber oil and other lubricant oil to clean oil.

4. High quality refined oil, no any discoloration caused by oxidation, no any bad smelling.

5. Low cost contain:

  1) only need the catalyst chemical, the cost is less thanUS$30 to refine one ton waste oil.

2) Heat consumption: 105kcal per ton waste oil

3) Power consumption: 40Kwh to recycle 1 ton waste oil

6. High degree of automation.



V. Recovery Rate:

Component

Percentage(%)

water

1.5%

Gasoline/diesel oil

7%

Light Lubrication oil

42%

Heavy Lubrication oil

43%

Residue

6.5%

Total

100%



VI. Treated Oil analysis (take the waste diesel engine oil for example)

Item

Heavy Lube oil

Light Lube Oil

Appearance

lucidity

lucidity

Color                        ≤

1.5

1

Viscosity (40°C)mm2/s

49.57

26.86

Viscosity Index                ≥

96

95

Anti-oxidation 150°C,min      ≥

180

180

Deemulsification,54°C

5min

5min

Flash Point(Open)°C            ≥

228

224

Pour Point  °C                 ≤

-12

-16

neutralization value (mgKOH/g)  ≤

0.02

0.02



VII. DIR Technical parameter

model

Capacity

T/D(24h)

Vacuum set

Oil pump

Total power

KW

Gas inlet mm

Gas outlet mm

Vacuum set power KW

Oil inlet mm

Oil outlet mm

Pump power

DIR-1

1T/D

150

50

16

Φ25

Φ25

8

24

DIR-2

2T/D

150

50

19.5

Φ33

Φ33

8.5

28

DIR-3

3T/D

200

50

22

Φ42

Φ33

12

34

DIR-5

4T/D

200

50

25.5

Φ42

Φ33

14.5

40

DIR-5

5T/D

250

50

29

Φ48

Φ42

19

48

DIR-6

6T/D

250

50

33.5

Φ48

Φ42

20.5

54

DIR-7

8T/D

250

80

44.5

Φ64

Φ48

27.5

72

DIR-8

10T/D

250

80

55.5

Φ64

Φ48

28.5

84



Clients come to visit us, and take the recycled oil back to theit country for making analysis report.

DIR Waste Engine Oil Purifier Vacuum Distillation EquipmentDIR Waste Engine Oil Purifier Vacuum Distillation Equipment

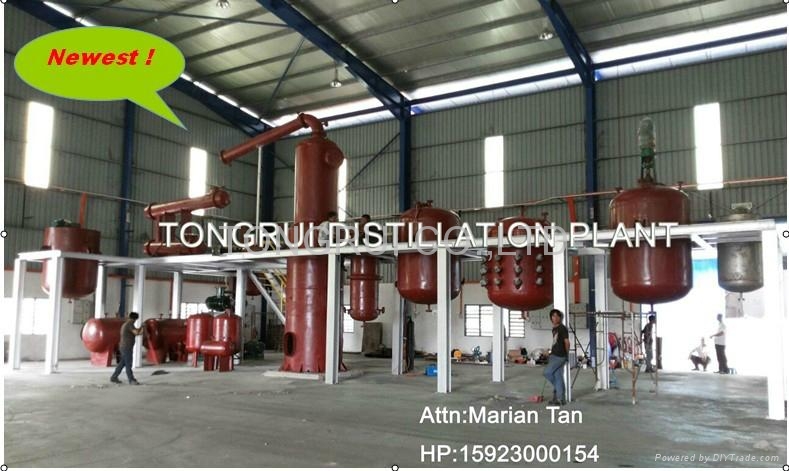

Malaysia Clients come to visit us twice, finally they are satisfied with the macine and made order, above is their oi analysis report.following is their machine, engineer is installing this machine from 2013 spetember 10-30.



DIR Waste Engine Oil Purifier Vacuum Distillation Equipment



DIR Waste Engine Oil Purifier Vacuum Distillation Equipment



DIR Waste Engine Oil Purifier Vacuum Distillation Equipment

Our Machines:



Our products are largely used in the fields of electric power, petroleum, natural gas, mine, machinery manufacturing, steel,

metallurgy, chemical industry, railway station, aviation and shipping etc. large enterprise. Our products involve in ZJA Series

Double Stage Vacuum Insulation Oil and Transformer Oil Purifier, ZJB\ZJBT Series Vacuum Transformer Oil Purifier,

ZJC Series Turbine Oil Refinery, ZJD Series Lubrication and Hydraulic Oil Purifier, ZJL Series Multi-function Oil Recycling system, YL Series Portable Oil Purifier, NRY Engine Oil Recycling Machine and ZJD-F Fuel Oil Purifier,DIR Vacuum Distillation etc. our machines cover more than 500 different model products in 30

series and can meet different needs of customers. We can offer different settle blueprint according to customers' special

requirement to confirm safety production and decrease cost.

DIR Waste Engine Oil Purifier Vacuum Distillation Equipment

CERTIFICATION:

DIR Waste Engine Oil Purifier Vacuum Distillation Equipment



Our Clients

we have cooperated with many customers around the world and have good quality control such as ISO9001,2000 and SGScertificates.

Our machine mainly sold to Middle East(Dubai, Pakistan, Yeman, Saudi Arabia), Southwest of Asia(Singapore, Malaysia, Indonesia, Viet nam, Cambodia, Philippines, Hongkong), Africa(Egypt, Kenya, Mali, Lybia),Europe (Italy, England, Albania, Spain, Greece) and South America (Hondurase,Mexico,Colombia,

Chile,Peru) etc.

DIR Waste Engine Oil Purifier Vacuum Distillation Equipment



DIR Waste Engine Oil Purifier Vacuum Distillation Equipment



After-sales Services
One year guarantee for product quality. (People damaged parts are charged).
Lifelong maintenance and spare parts supply.
Free design of fixtures as customers required.
Free training for machines installation and operation of the staffs.





Welcome to visit us, Your inquiries are highly welcomed at any time, we are ready to make a response very soon


Price Terms:FOB Chongqing
Payment Terms:T/T,L/C
Packing:wooden case
Capacity:10,000Liters per day
Mini.Order Quantity:1 set
