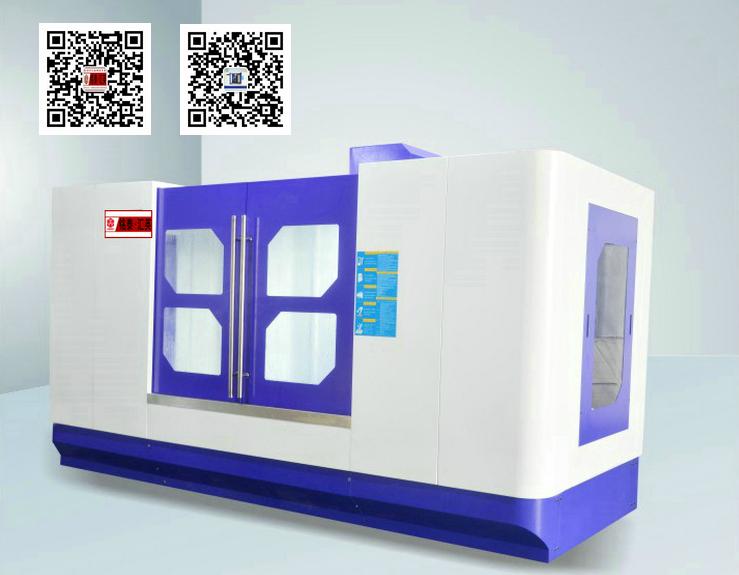

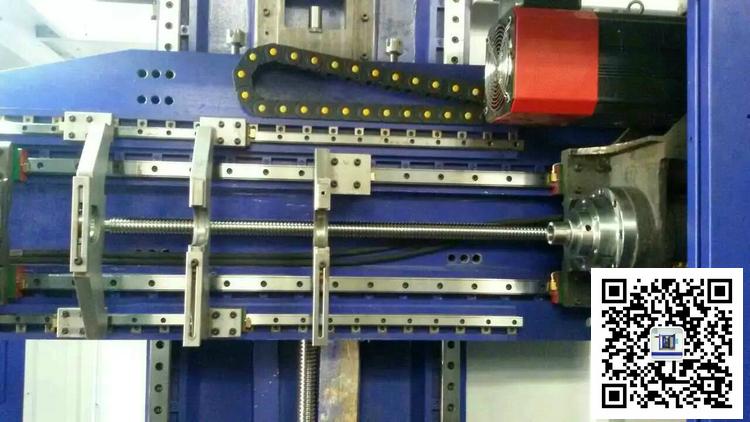

CNC Deep Hole Drilling Machine DHD-650 Technical Specifications
|
Machine Technical Parameters |
|||||
|
No. |
Project |
Content |
|||
|
1 |
Drilling diameter range |
φ 2.5 ~ φ 20mm |
|||
|
2 |
Maximum drilling depth |
600mm |
|||
|
3 |
Table size |
500 × 800mm |
|||
|
4 |
Table load |
3 tons |
|||
|
5 |
Machine weight |
5 tons |
|||
|
6 |
Machine dimensions |
3600 × 2200 × 2300mm |
|||
|
7 |
Axis travel |
Table X: 650mm |
Column Y: 650mm |
Feed Z: 650mm |
|
|
8 |
Spindle speed range (stepless) |
0 ~ 4500r/min |
|||
|
9 |
Tool feed speed range (stepless) |
0 ~ 200mm/min (non-limiting parameter) |
|||
|
10 |
Rapid traverse |
5000mm/min |
|||
|
11 |
Spindle motor power |
5.5KW |
|||
|
12 |
Axis servo motor power |
X:1KW |
Y:1KW |
Z:1KW |
|
|
13 |
Pump power |
High-pressure pump: 3.7KW |
Low-pressure pump: 7.5KW |
||
|
14 |
Chip conveyor power |
0.2KW |
|||
|
15 |
Oil temperature control system power |
3P |
|||
|
16 |
Total power |
25KW |
|||
|
17 |
Cutting oil pressure |
10Mpa |
|||
|
18 |
Cutting Fuel tank capacity |
400L |
|||
|
19 |
Spindle axes |
A shaft |
|||
|
20 |
Aperture Accuracy |
IT8 ~ IT11 |
|||
|
21 |
The surface roughness of the hole |
Ra ≤ 3.2 μ m |
|||
|
22 |
The deflection of the reference hole axis |
0.5/1000 (S45 #, ∮ 10mm) |
|||
|
23 |
Filtration |
20μ m |
|||
|
24 |
Table T-slot |
18mm |
|||
|
25 |
Damping support frame |
2 |
|||
